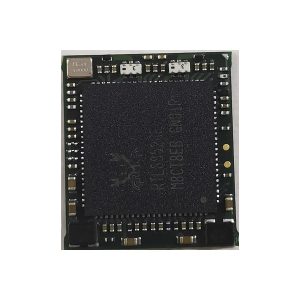

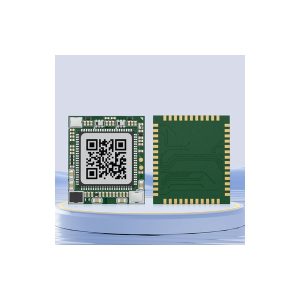

2402Mbps PCIe/Uart Wi-Fi 6 Module 6252B-PRC
Main chipset: RTL8852CE-VR-CG
Wi-Fi standard: a/b/g/n/ac/ax
Interface (Wi-Fi/BT): PCIe/Uart
Throughput: 2402Mbps
Dimension: 13.0 × 15.0 mm
Compact surface-mount module for embedded integration
2402Mbps Wi-Fi 6 module 6252B-PRC supports Wi-Fi 6 connectivity for IoT, smart home and embedded designs.
This Wi-Fi 6 module is available from RFecho with datasheet and quote.
- Description
- Datasheet

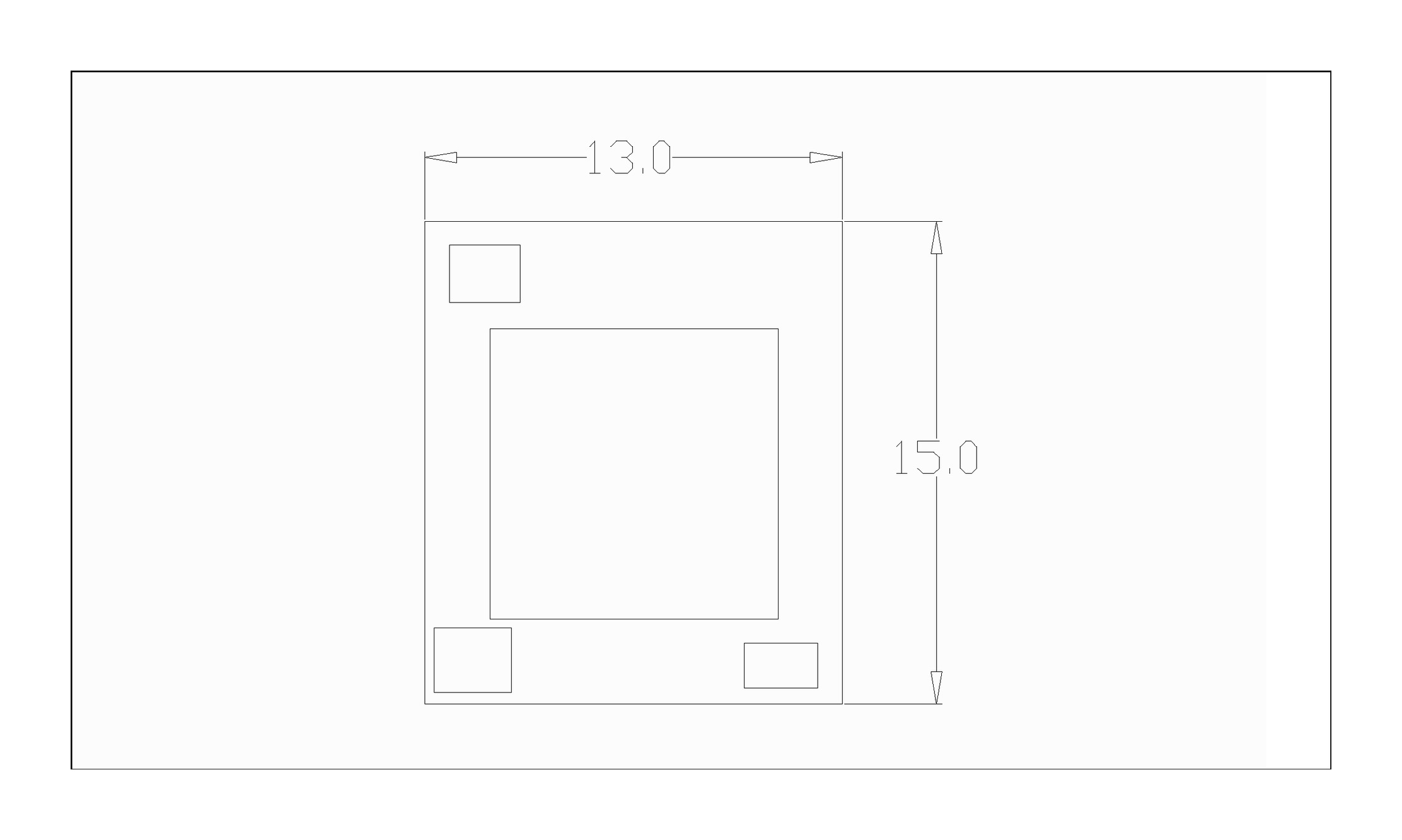

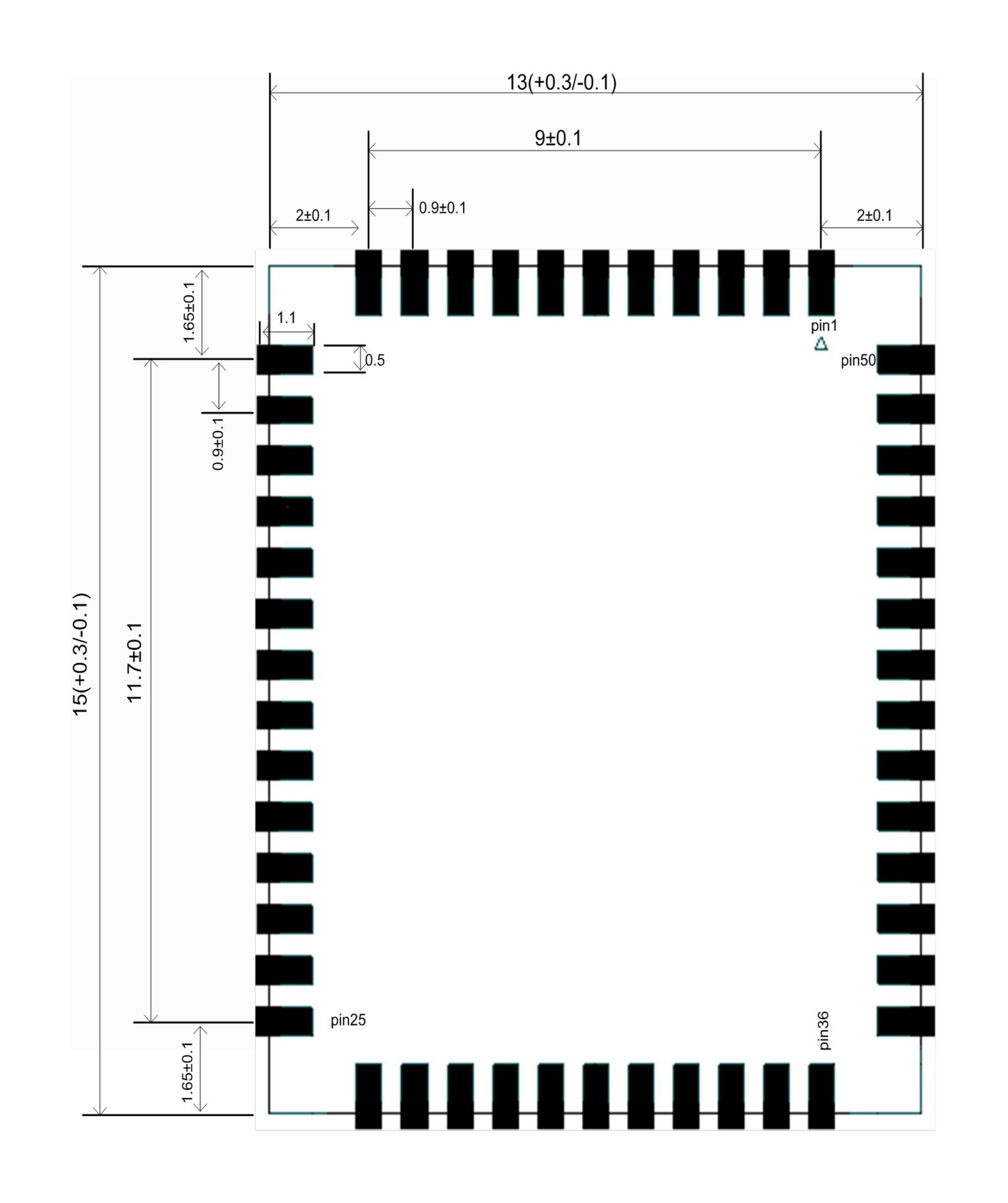

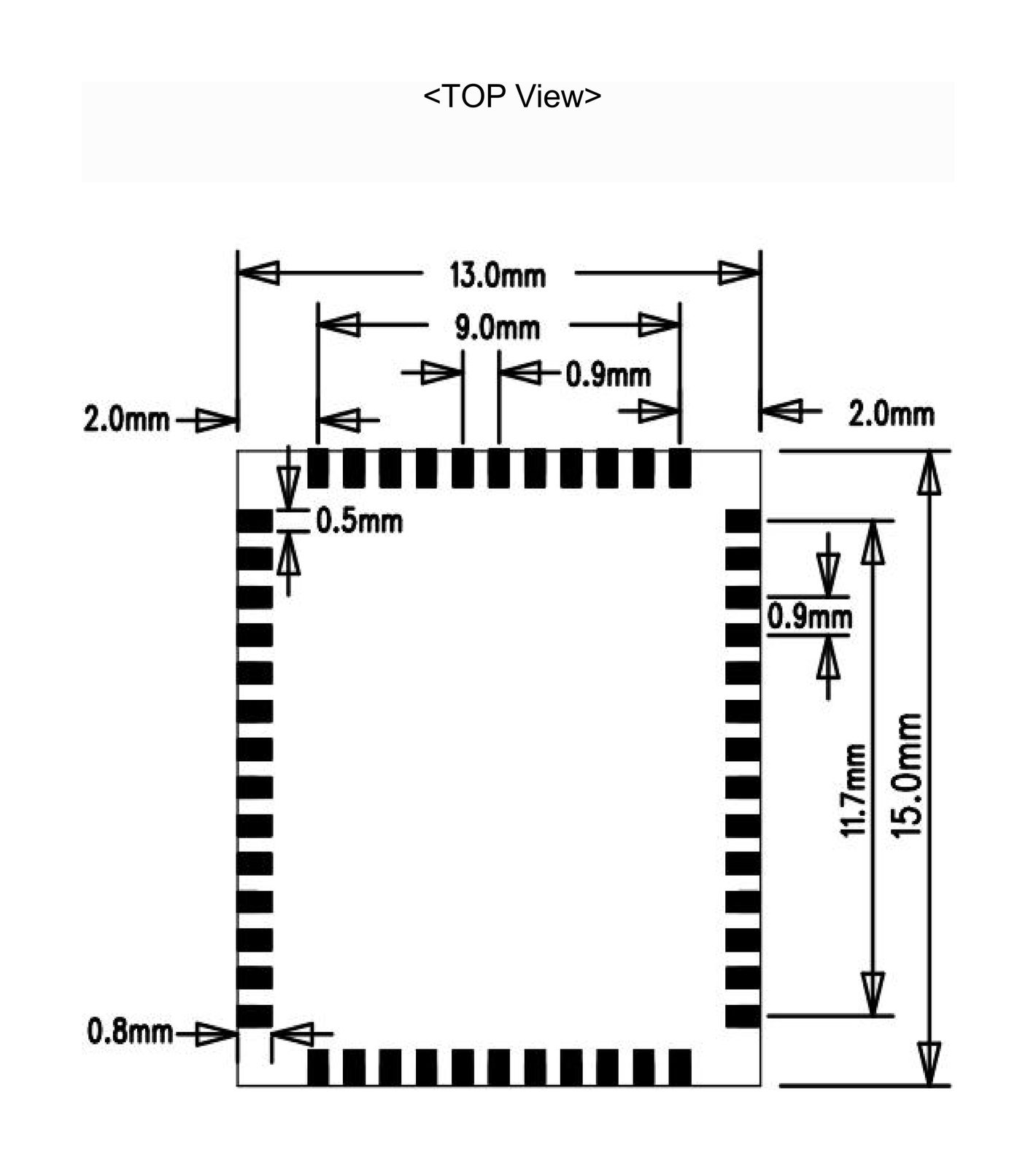

- Outline
- Reviews (0)
Description
Wi-Fi 6 Module Specifications | |
| a/b/g/n/ac/ax, 2402Mbps | |
| 6252B-PRC | |
Property | Value |
| Main Chipset | RTL8852CE-VR-CG |
| Wi-Fi Standard | a/b/g/n/ac/ax |
| Interface Wi-Fi/BT | PCIe/Uart |
| Throughput | 2402Mbps |
| Dimension (mm) | 13.0 × 15.0 |
The 6252B-PRC is a Wi-Fi 6 (a/b/g/n/ac/ax) module built on the RTL8852CE-VR-CG chipset. It delivers up to 2402Mbps over a PCIe/Uart host interface. The module measures 13.0 × 15.0 mm, suiting space-constrained embedded designs.
