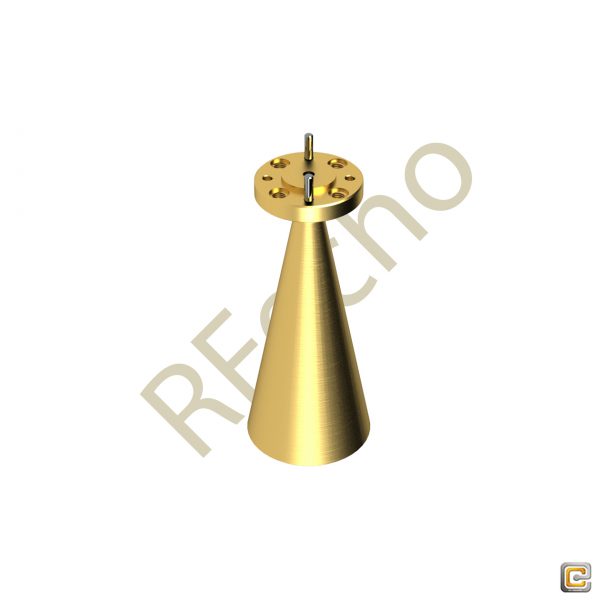

Model OCN-082-25 is a F Band conical horn antenna that operates from 100 GHz to 112 GHz. The antenna offers 25 dB nominal gain and a typical half power beamwidth of 9 degrees on the E-plane and 10 degrees on the H-plane.

The horn also offers typical side lobes of -18 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.082 diameter circular waveguide with UG-387/U-M flange.

Description

SPEC

Conical Horn Antennas

25 dBi Gain, 100 GHz to 112 GHz, 0.082″ Diameter Circular Waveguide WR-82 Waveguide F Band Conical Horn Antennas

OCN-082-25

Model OCN-082-25 is a F Band conical horn antenna that operates from 100 GHz to 112 GHz. The antenna offers 25 dB nominal gain and a typical half power beamwidth of 9 degrees on the E-plane and 10 degrees on the H-plane.

The horn also offers typical side lobes of -18 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.082 diameter circular waveguide with UG-387/U-M flange.

Property

Value

Min. Frequency (GHz)

100

Max. Frequency (GHz)

112

Gain(dBi)

25

3 dB Beamwidth, E-plane (?)

9

3 dB Beamwidth, H-plane (?)

10

Side Lobes, E-Plane (dB)

-18

Side Lobes, H-Plane (dB)

-28

Return Loss (dB)

NA

Waveguide

WR-82

Band Type

F Band

Flange

UG-387/U-M flange

Diameter (Inch)

0.082

VSWR

1.15:1

Features

Circular Waveguide Interface

Precisely Machined and Gold Plated

High Return Loss

Linear and Circular Polarization

Applications

Antenna Ranges

Feed Horns

System Setups

PDF

Outline

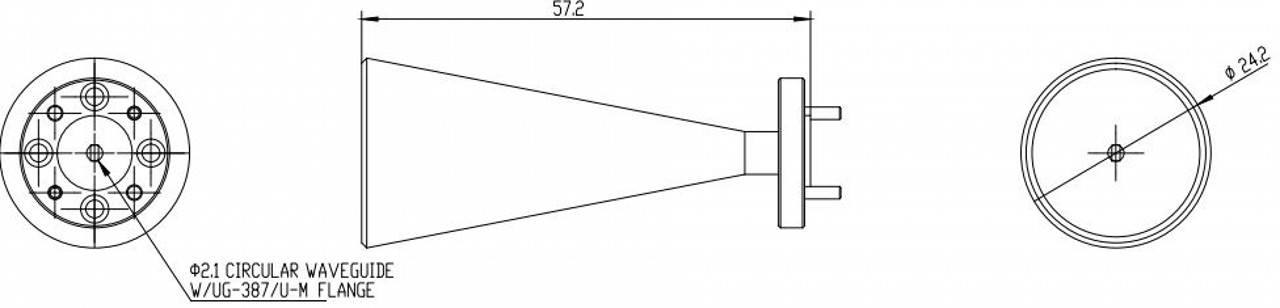

OCN 082 25 outline 25 dBi Gain, 100 GHz to 112 GHz, 0.082" Diameter Circular Waveguide WR-82 Waveguide F Band Conical Horn Antennas

Plot

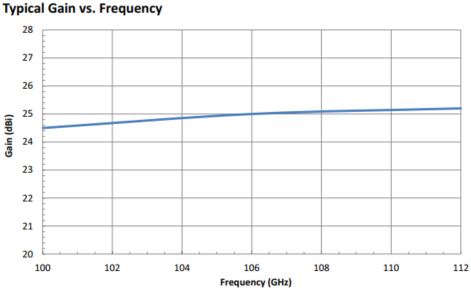

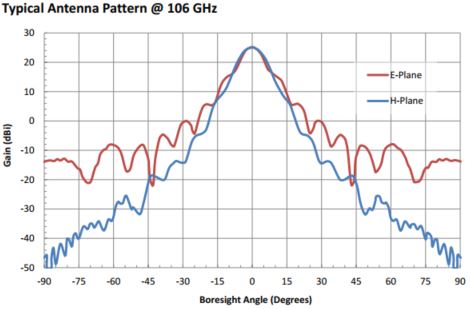

OCN 082 25 plot1 25 dBi Gain, 100 GHz to 112 GHz, 0.082" Diameter Circular Waveguide WR-82 Waveguide F Band Conical Horn AntennasOCN 082 25 plot2 25 dBi Gain, 100 GHz to 112 GHz, 0.082" Diameter Circular Waveguide WR-82 Waveguide F Band Conical Horn Antennas

Additional information

Min. Frequency (GHz)

100

Max. Frequency (GHz)

112

Gain (dBi)

25

Waveguide

VSWR

1.15:1

Side Lobes, H-Plane (dB)

Side Lobes, E-Plane (dB)

Flange

Band Type

Return Loss (dB)

Diameter (inch)
