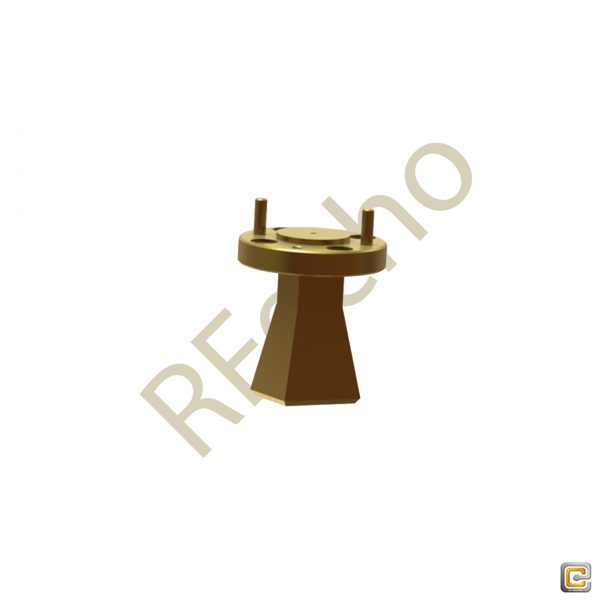

25 dBi Gain, 170 GHz to 260 GHz, WR-04 Waveguide Millimeter SGH Antenna

HOT

25 dBi Gain, 170 GHz to 260 GHz, WR-04 Waveguide Millimeter SGH Antenna

$1,435

This model OLB-04-25 is a Millimeter SGH Antenna, operating frequency range is 170 GHz to 260 GHz. Millimeter SGH Antenna offers nominal gain 25dBi and typical half power beam width on the E-plane and H-plane is H 10° / V 10°.

Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-04 waveguide withUG-387/U-M Flange. The Impedance used Standard gain horn antenna is 50 Ohms.

Description

SPEC

Millimeter SGH Antenna

25 dBi Gain, 170 GHz to 260 GHz, WR-04 Waveguide Millimeter SGH Antenna

OLB-04-25

This model OLB-04-25 is a Millimeter SGH Antenna, operating frequency range is 170 GHz to 260 GHz. Millimeter SGH Antenna offers nominal gain 25dBi and typical half power beam width on the E-plane and H-plane is H 10° / V 10°.

Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-04 waveguide withUG-387/U-M Flange. The Impedance used Standard gain horn antenna is 50 Ohms.

Property

Value

Min. Frequency (GHz)

170

Max. Frequency (GHz)

260

Gain(dBi)

25

HPBW 3 dB Beamwidth

H 10° / V 10°

Waveguide

WR-04

Flange

UG-387/U-M Flange

Material

Cu

Polarization

Linear

Impedance (?)

50

Features

Inline Configuration

Linear Polarization

DC Short Circuit at Input

Applications

Antenna Ranges

Antenna Gain Measurements

System Setup

PDF

Outline

25 dBi Gain, 170 GHz to 260 GHz, WR-04 Waveguide Millimeter SGH Antenna

Plot

25 dBi Gain, 170 GHz to 260 GHz, WR-04 Waveguide Millimeter SGH Antenna25 dBi Gain, 170 GHz to 260 GHz, WR-04 Waveguide Millimeter SGH Antenna

Additional information

Min. Frequency (GHz)

170

Max. Frequency (GHz)

260

Gain (dBi)

25

Flange

UG-387/U-M Flange

HPBW 3 dB Beamwidth

H 10° / V 10°

Waveguide

WR-04

Material

Cu

Polarization

Linear

Impedance (Ω)

50
