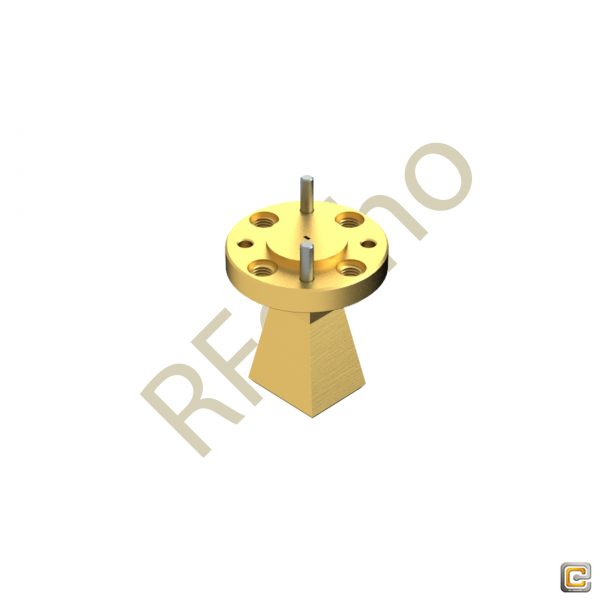

25 dBi Gain, 220 GHz to 325 GHz, WR-03 Waveguide Millimeter SGH Antenna
$1435
Frequency: 220-325GHz
Gain: 25dBi.
VSWR: 1.3Typ.
HPBW 3 dB Beamwidth: H 10° / V 10°
Waveguide: WR-03
Material: Cu
OLB-03-25 Millimeter SGH Antenna supports linear polarized waveforms Linear.
- Description
- Datasheet

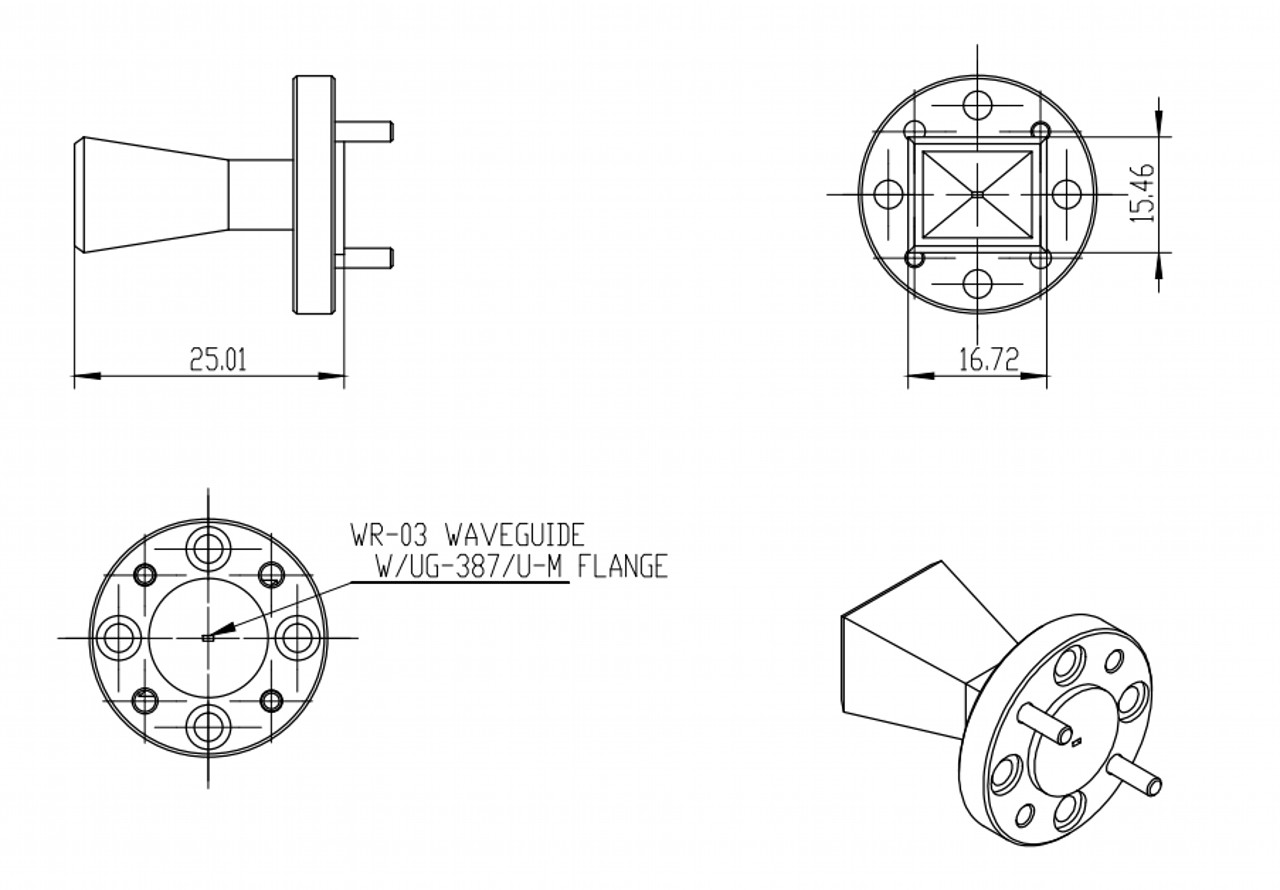

- Dimensions

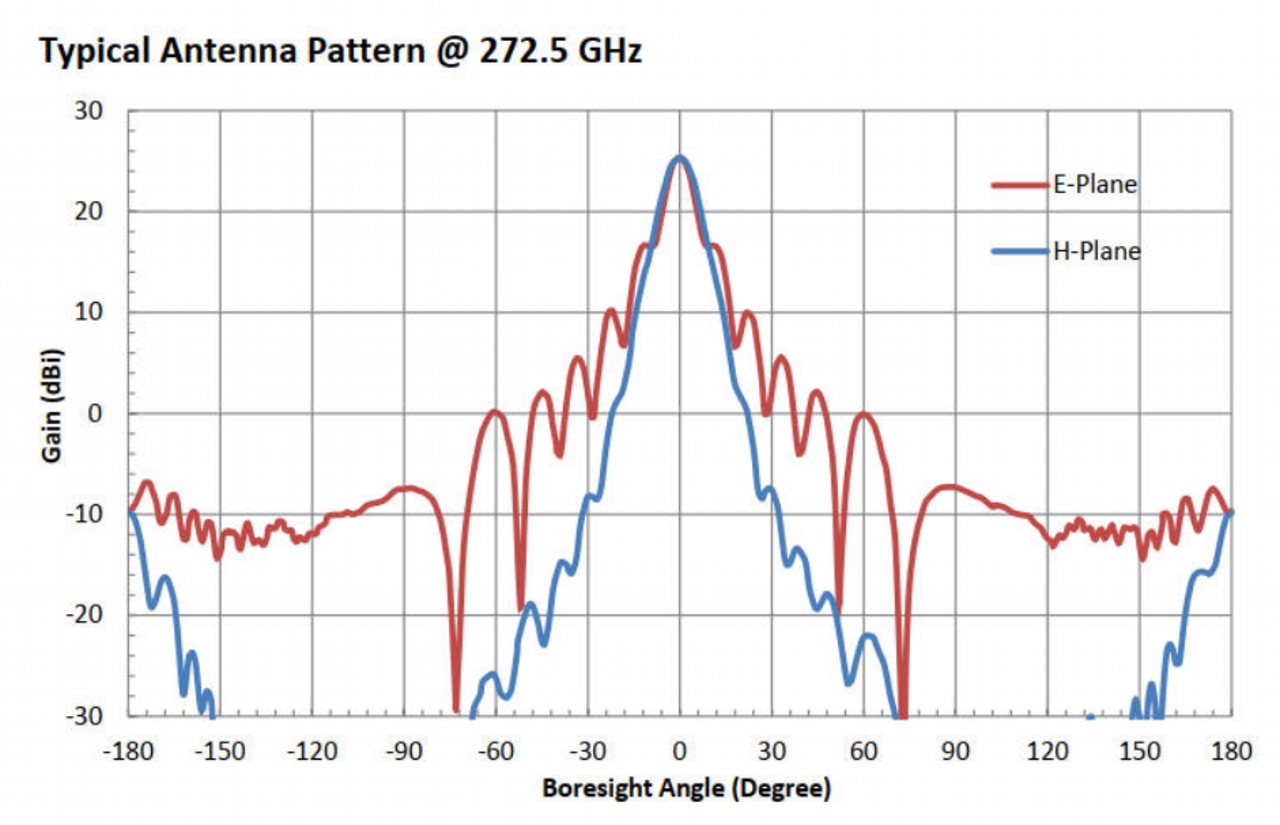

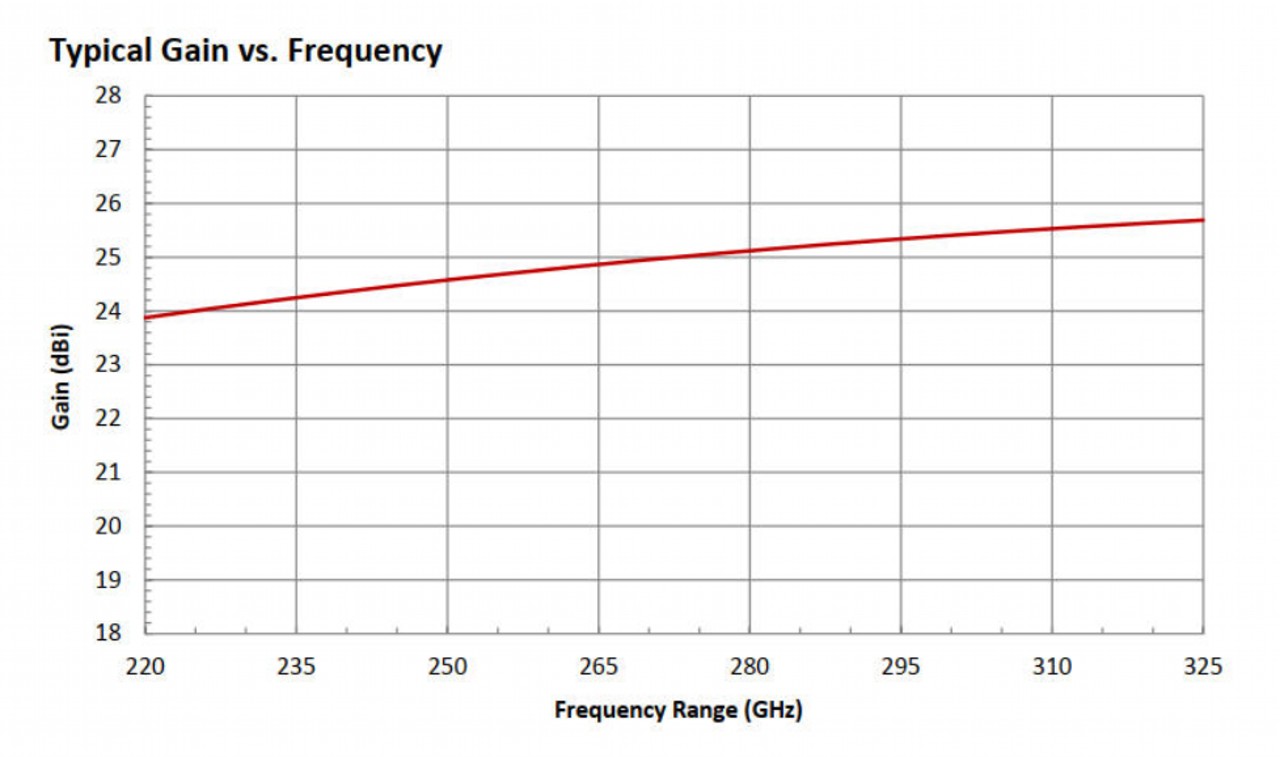

- Plot
- Additional information
- Reviews (0)
Description
Millimeter SGH Antenna |
|
25 dBi Gain, 220 GHz to 325 GHz, WR-03 Waveguide Millimeter SGH Antenna |
|
OLB-03-25 |
|
This model OLB-03-25 is a Millimeter SGH Antenna, operating frequency range is 220 GHz to 325 GHz. Millimeter SGH Antenna offers nominal gain 25dBi and typical half power beam width on the E-plane and H-plane is H 10° / V 10°. Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-03 waveguide withUG-387/U-M Flange. The Impedance used Standard gain horn antenna is 50 Ohms. |
|
Property |
Value |
Min. Frequency (GHz) |
220 |
Max. Frequency (GHz) |
325 |
Gain(dBi) |
25 |
HPBW 3 dB Beamwidth |
H 10° / V 10° |
Waveguide |
WR-03 |
Flange |
UG-387/U-M Flange |
Material |
Cu |
Polarization |
Linear |
Impedance (Ω) |
50 |
Features |
|
Inline Configuration |
|
Linear Polarization |
|
DC Short Circuit at Input |
|
Applications |
|
Antenna Ranges |
|
Antenna Gain Measurements |
|
System Setup |
Additional information
Weight | 1 kg |
---|---|
Dimensions | 26 × 11.5 × 14.5 cm |
Min. Frequency (GHz) | 220 |
Max. Frequency (GHz) | 325 |
Gain (dBi) | 25 |
Flange | |
HPBW 3 dB Beamwidth | |
Waveguide | |
Material | |
Polarization | |
Impedance (Ω) |
