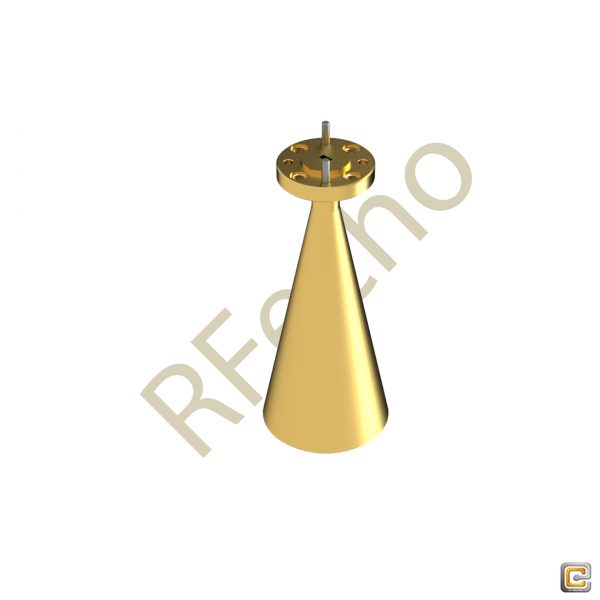

25 dBi Gain, 87 GHz to 100 GHz, 0.11″ Diameter Circular Waveguide WR-10 Waveguide W Band Conical Horn Antennas
Frequency: 87-100GHz
Gain: 25dBi.
VSWR: 1.15:1
Waveguide: WR-10
Side Lobes,E-Plane,H-plane: -18,-28
Flange: UG-387/U-M flange
Band Type: W Band
Diameter: 0.11Inch
The OCN-10-25 Conical Horn Antennas is suitable for Antenna Ranges，Feed Horns and System Setups.
- Description
- Datasheet

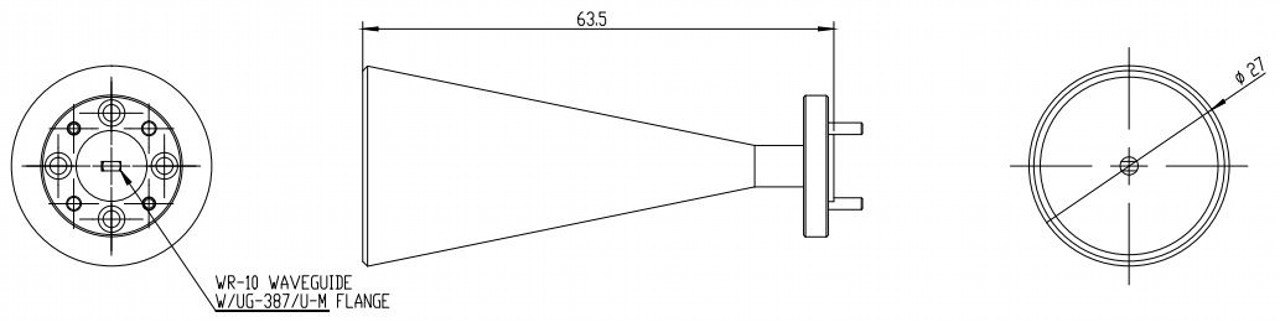

- Outline

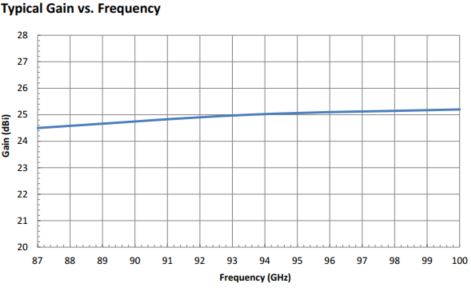

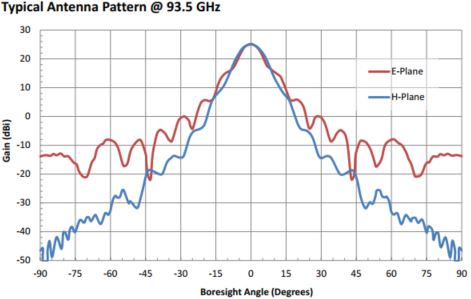

- Plot
- Reviews (0)
Description
| Conical Horn Antennas | |
| 25 dBi Gain, 87 GHz to 100 GHz, 0.11″ Diameter Circular Waveguide WR-10 Waveguide W Band Conical Horn Antennas | |
| OCN-10-25 | |
| Model OCN-10-25 is a W Band conical horn antenna that operates from 87 GHz to 100 GHz. The antenna offers 25 dB nominal gain and a typical half power beamwidth of 11 degrees on the E-plane and 13 degrees on the H-plane. The horn also offers typical side lobes of -18 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.11 diameter circular waveguide with UG-387/U-M flange. | |
| Property | Value |
| Min. Frequency (GHz) | 87 |
| Max. Frequency (GHz) | 100 |
| Gain(dBi) | 25 |
| 3 dB Beamwidth, E-plane | 11° |
| 3 dB Beamwidth, H-plane | 13° |
| Side Lobes, E-Plane (dB) | -18 |
| Side Lobes, H-Plane (dB) | -28 |
| Waveguide | WR-10 |
| Band Type | W Band |
| Flange | UG-387/U-M flange |
| Diameter (Inch) | 0.11 |
| VSWR | 1.15:1 |
| Features | |
| Circular Waveguide Interface | |
| Precisely Machined and Gold Plated | |
| High Return Loss | |
| Linear and Circular Polarization | |
| Applications | |
| Antenna Ranges | |
| Feed Horns | |
| System Setups | |
