26.4 GHz to 40.1 GHz, 0.3 dB Insertion Loss, 20 dB Isolation, WR28 High Power Series Isolator-BH320-25.4B1
High Power Series isolator with 26.4-40.1 GHz frequency range, 0.3 dB insertion loss, 20 dB isolation
- Description
- Datasheet
- Reviews (0)
Description
The BH320-25.4B1 is a high-performance high power series designed for RF and microwave applications. It operates in the frequency range of 26.4-40.1 GHz with 0.3 dB maximum insertion loss and 20 dB minimum isolation.

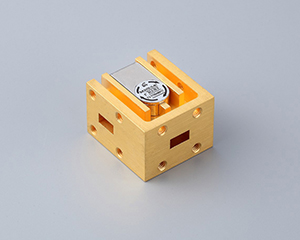

BH320-25.4B1 | |
| 26.4 GHz to 40.1 GHz, 0.3 dB Insertion Loss, 20 dB Isolation, WR28 High Power Series Isolator-BH320-25.4B1 | |
Property | Value |
| Frequency (GHz) | 26.4-40.1 |
| Bandwidth | 10% |
| Return Loss (dB) |
|
| Isolation (dB) | 20 |
| Insertion Loss (dB) | 0.3 |
| VSWR | 1.2 |
| IMD3 (dBc) |
|
| Power (W) | 500(10%) |
| Reverse Power (W) |
|
| Peak Power |
|
| Power note |
|
| Connector | WR28 |
| Impedance(Ohm) | 50 |
| Size |
|
| Operating Temp (degC) | -40 to 85 |
| Structure | connectorized |
Features | |
| Frequency Range: 26.4-40.1 GHz | |
| Insertion Loss: 0.3 dB Max | |
| Isolation: 20 dB Min | |
| VSWR: 1.2 Max | |
| Power: 500(10%) W | |
Applications | |
| Wireless communication, Radar systems, Test and measurement equipment | |
