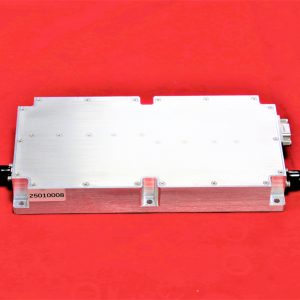

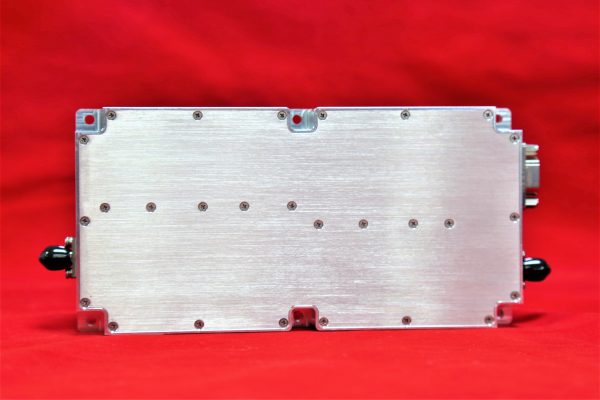

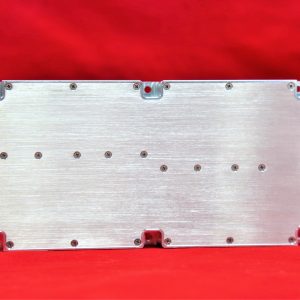

26-40GHz 5W/20W Power Amplifier
Frequency Range: 26-40GHz.
Gain:37~43dBm
Input VSWR: 1.8:1
Output VSWR: /
It have the characteristics of temperature protection, Gain stability, and VCO frequency sweep.
- Description
- Additional information
- Reviews (0)
Description
PA-26-40G-20I | |
| 26-40GHz 5W/20W Power Amplifier | |
Property | Value |
| Min. Frequency (GHz) | 18 |
| Max. Frequency (GHz) | 26 |
| Max. Power Gain (dBm) | 37/43 |
| Input VSWR | 1.8:1 |
| Output VSWR | / |
| Output power(W) | 5/20 |
| Operating Voltage | +28V |
| RF Connector | 2.92 |
| DC Connector | J30J-15ZK |
Features | |
| High Power Gain Stability | |
| Low Input and Output VSWR | |
| Stable operation in harsh conditions | |
Applications | |
| Wireless Infrastructure | |
| Test and measurement Instrument | |
| Fiber Optics | |
| 5G Communication | |
| RF Microwave & VSAT | |
Additional information
| Min. Frequency (GHz) | 18 |
|---|---|
| Max. Frequency (GHz) | 26 |
| Max. Power Gain (dBm) | 37/43 |
| Input VSWR | 1.8:1 |
| Output VSWR | / |
| Output power(W) | 5月20日 |
| Operating Voltage | +28V |
| RF Connector | 2.92 |
| DC Connector | J30J-15ZK |
