26.5GHz-40GHz ,VSWR(Max):1.032, Waveguide Load 82501

26.5GHz-40GHz ,VSWR(Max):1.032, Waveguide Load 82501

The waveguide load frequency covers 500GHz, with complete matching loads, excellent performance, small voltage standing  wave ratio and power up to 30KW. The basic materials are copper, aluminum and stainless steel, and the surface treatment methods include gold plating, silver plating, nickel plating, passivation and conductive oxidation.

The application information includes: waveguide load is necessaryfor checking the working ability andverification of various microwaveimpedance measuring instruments(including panoramic voltagestandingwave coefficient (KCBH)measuring instruments),and can be customized according tocustomer requirements.

SKU: 82501 Categories: Load, Routing, Waveguide Load

Description

SPEC

Waveguide Load

26.5GHz-40GHz ,VSWR(Max):1.032, Waveguide Load

82501

The waveguide load frequency covers 500GHz, with complete matching loads, excellent performance, small voltage standing  wave ratio and power up to 30KW. The basic materials are copper, aluminum and stainless steel, and the surface treatment methods include gold plating, silver plating, nickel plating, passivation and conductive oxidation.

The application information includes: waveguide load is necessaryfor checking the working ability andverification of various microwaveimpedance measuring instruments(including panoramic voltagestandingwave coefficient (KCBH)measuring instruments),and can be customized according tocustomer requirements.

Property

Value

Min. Frequency (GHz)

26.5

Max. Frequency (GHz)

40

waveguide

WR28

VSWR(Max)

1.032

Features

Rich product types

The frequency covers 500GHz

Can be customized according to user needs

PDF

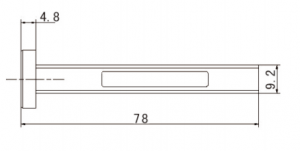

Outline



Additional information

Min. Frequency (GHz)

26.5

Max. Frequency (GHz)

40

VSWR(Max)

1.032

Waveguide

WR-28
