(-27 – 7)dBi Gain, 0.025GHz to 7GHz, Bilogical Antenna OLP-00270
$4890
Frequency Range: 0.025 GHz to 7 GHz
Gain: -27 ~ 7 dBi
Impedance: 50Ω
Maximum Radiated Field: 100 V/m
Connector Type: N-Type, female
Power Handling: 1000 Watts
The Biological Antenna (OLP-00270) is one of the latest antennas, providing an inexpensive solution for wideband applications, such as GSM, 5G, and Wi-Fi.
- Description
- Datasheet

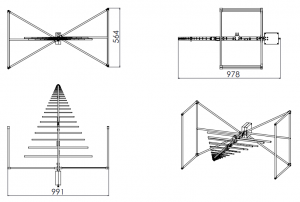

- Outline

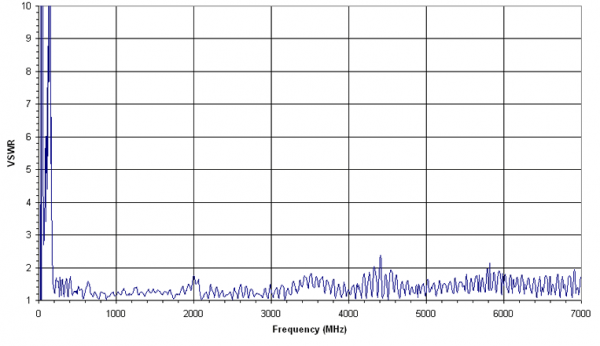

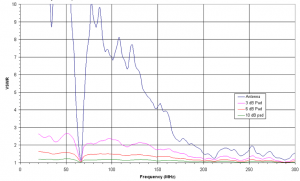

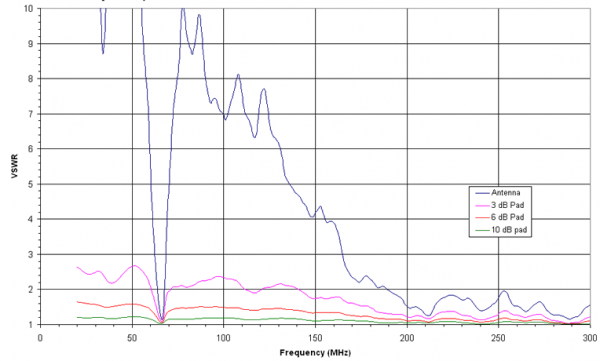

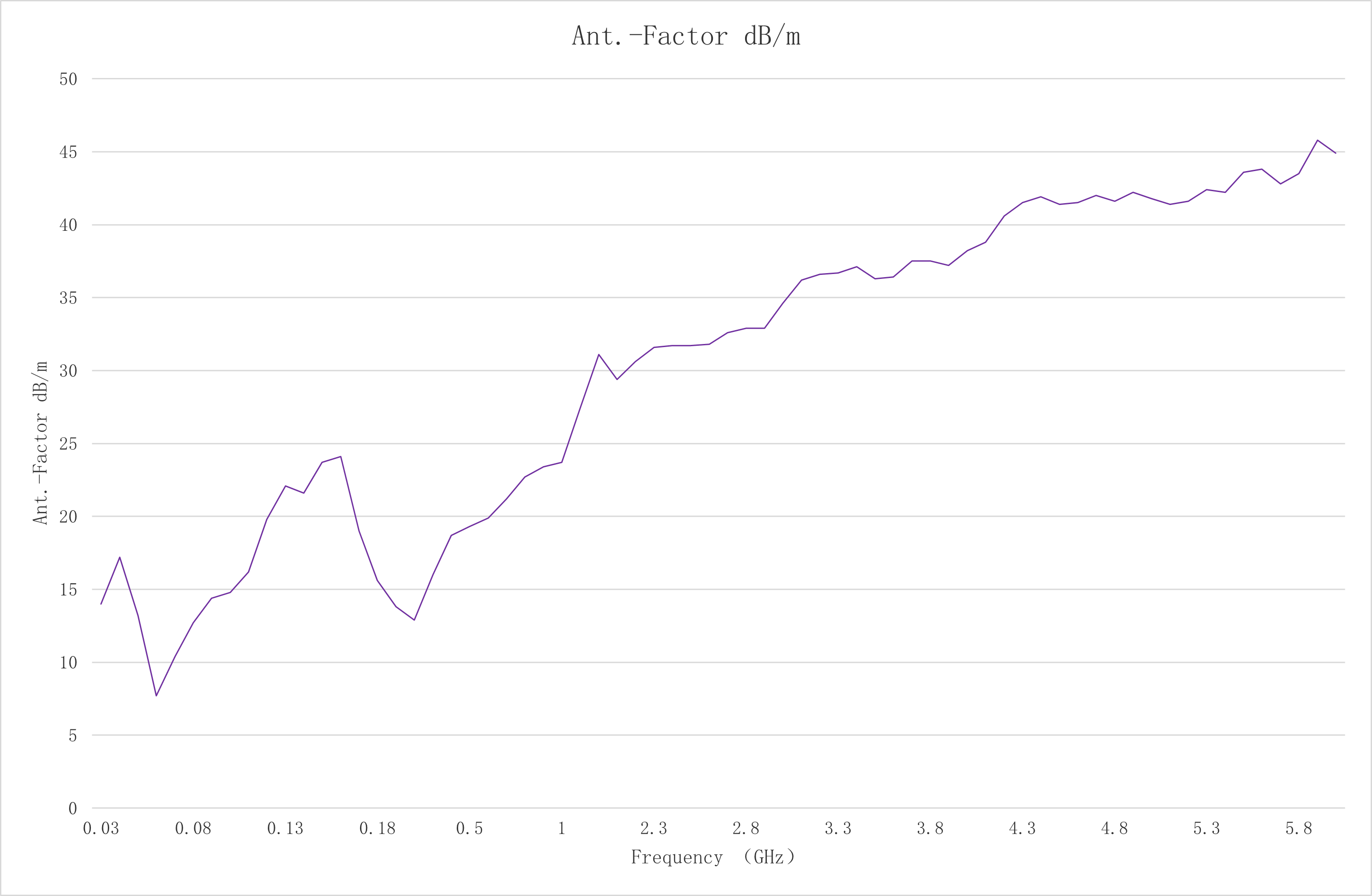

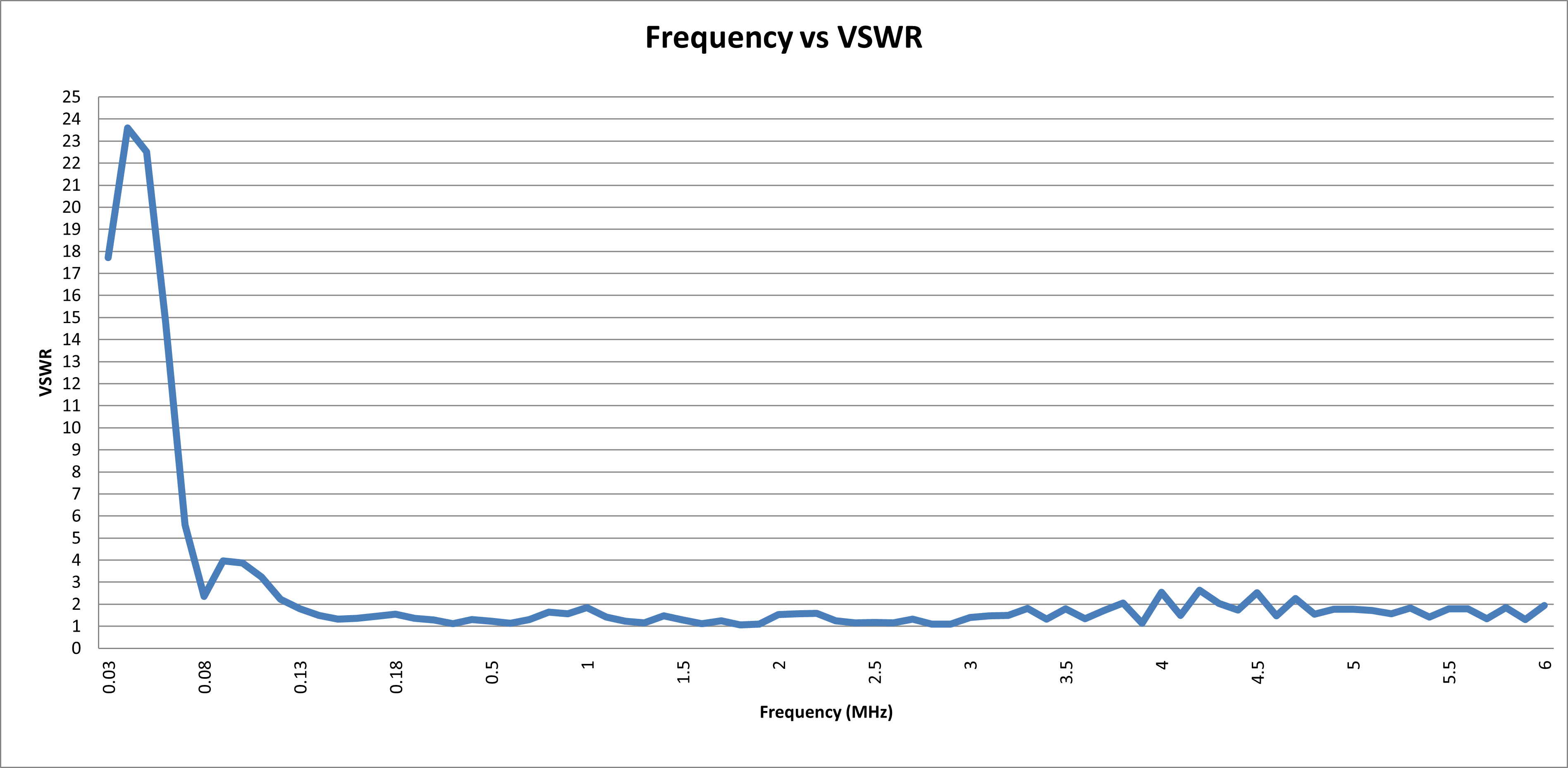

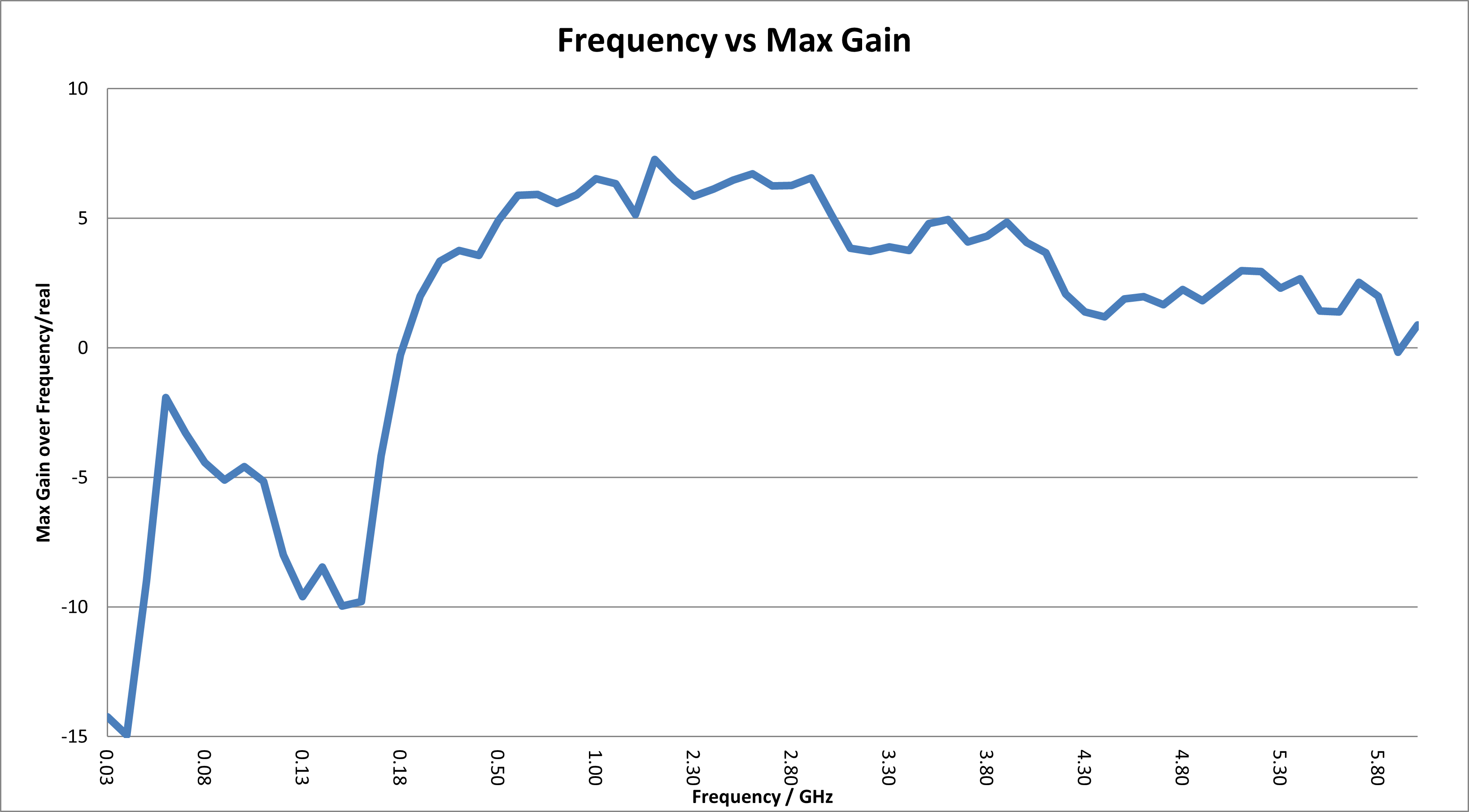

- Plot
- Reviews (0)
Description
|
Bilogical Antenna |
|
|
(-27 – 7)dBi Gain, 0.025GHz to 7GHz, Bilogical Antenna |
|
|
OLP-00270 |
|
|
The Bilogical Antenna is one of our latest antennas, providingan inexpensive solution to wide band applications. Whether testing inside a shielded enclosure or outdoors, this antenna will display efficient performance characteristics through the frequency range of 25 MHz to 7000 MHz. OLP antenna offering a large number of dipole elements with frequency range from 25MHz to 7 GHz including the most common RF sources like GSM,5G, Wifietc.. Each antenna goes through rigorous testing in our laboratories before dispatch，Allantennas are developed, individually produced and calibrated。 |
|
|
Property |
Value |
|
Min. Frequency (GHz) |
0.025 |
|
Max. Frequency (GHz) |
7 |
|
Gain(dBi) |
-27 – 7 |
|
Impedance (Ω) |
50 |
|
Max Radiated Field |
100 V/m |
|
Connection Type |
N-Type, female |
|
Mounting Base |
¼- 20 Thread,female |
|
Features |
|
|
HybridLog Periodic – Biconical Antenna |
|
|
Wide Frequency Range of 25 MHz – 7000 MHz |
|
|
Receive and Transmit |
|
|

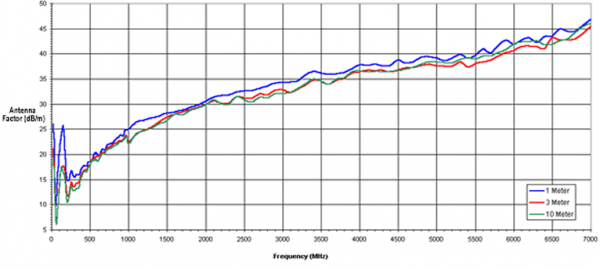

Individually Calibrated (1, 3 and 10 Meter calibration included, horizontal polarization)Rugged Construction |
|
|
Can be used in the lab |
|
|
for open-field application |
|
|
Suitable for field-strength and EMC measurements due to high precision |
|
|
Compact and sturdy design |
|
|
Can be used in the lab and for open-field application |
|
|
Applications |
|
|
GSM,5G |
|
|
DECT Digital Enhanced Cordless Telecommunications |
|
