27 GHz, 2.92mm Male to SMA Male, Between Adapters

Original price was: $60.Current price is: $51.

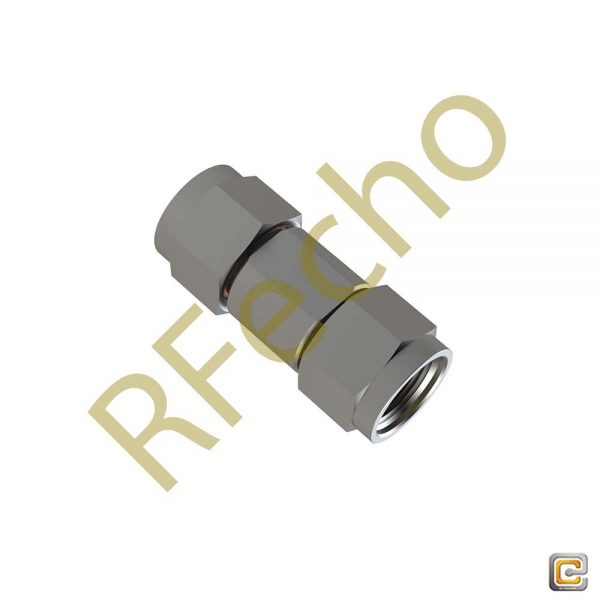

This model OA365511Z01 is 2.92mm Male Straight to SMA Male Straight. This series 2.92mm Male Straight to SMA Male Straight have the operating frequency of 27 GHz. Adapters that have a male to female or plug to jack configuration are known as connector savers.

Between Series Adapters are the passive components which are used to transfer signals from one coaxial connector interface to another with minimal losses. Between adapters have different connector configurations on either side of the adapter.

Description

Additional information

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

27

VSWR (Max.)

1.15:1

Conector 1

2.92mm

Gender 1

Male

Connector 1 Body Style

Straight

Conector 2

SMA

Gender 2

Male

Connector 2 Body Style

Straight

Durability (Cycle)

500

Impedance (Ω)

50
