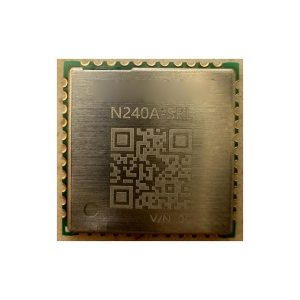

286.8Mbps SDIO3.0/UART Wi-Fi 6 Module N240A-SRL
Wi-Fi standard: Dual-band a/b/g/n/ac/ax
Interface (Wi-Fi/BT): SDIO3.0/UART
Throughput: 286.8Mbps
Dimension: 12.0 × 12.0 mm
Compact surface-mount module for embedded integration
286.8Mbps Wi-Fi 6 module N240A-SRL supports Wi-Fi 6 connectivity for IoT, smart home and embedded designs.
This Wi-Fi 6 module is available from RFecho with datasheet and quote.
- Description
- Datasheet

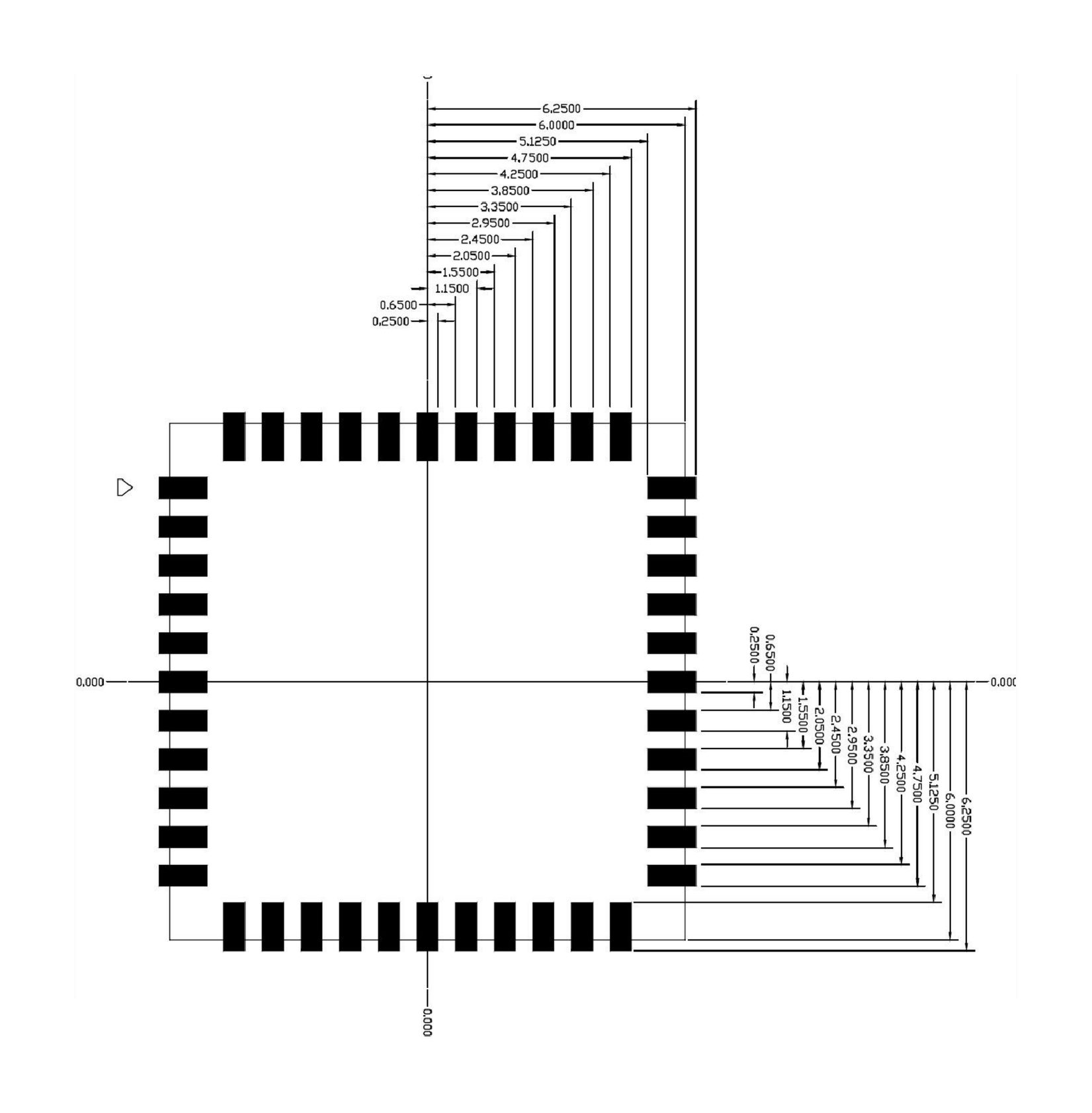

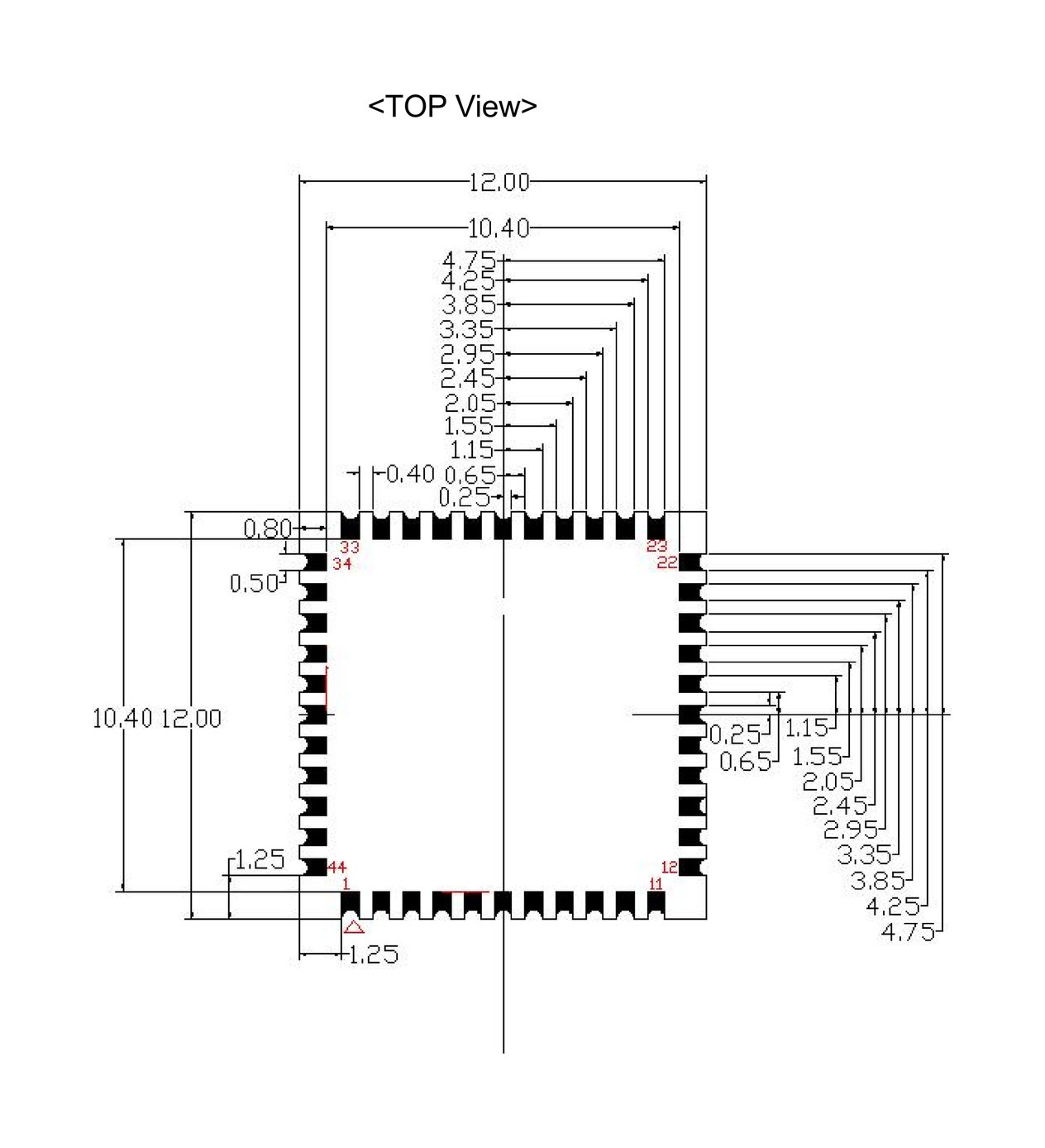

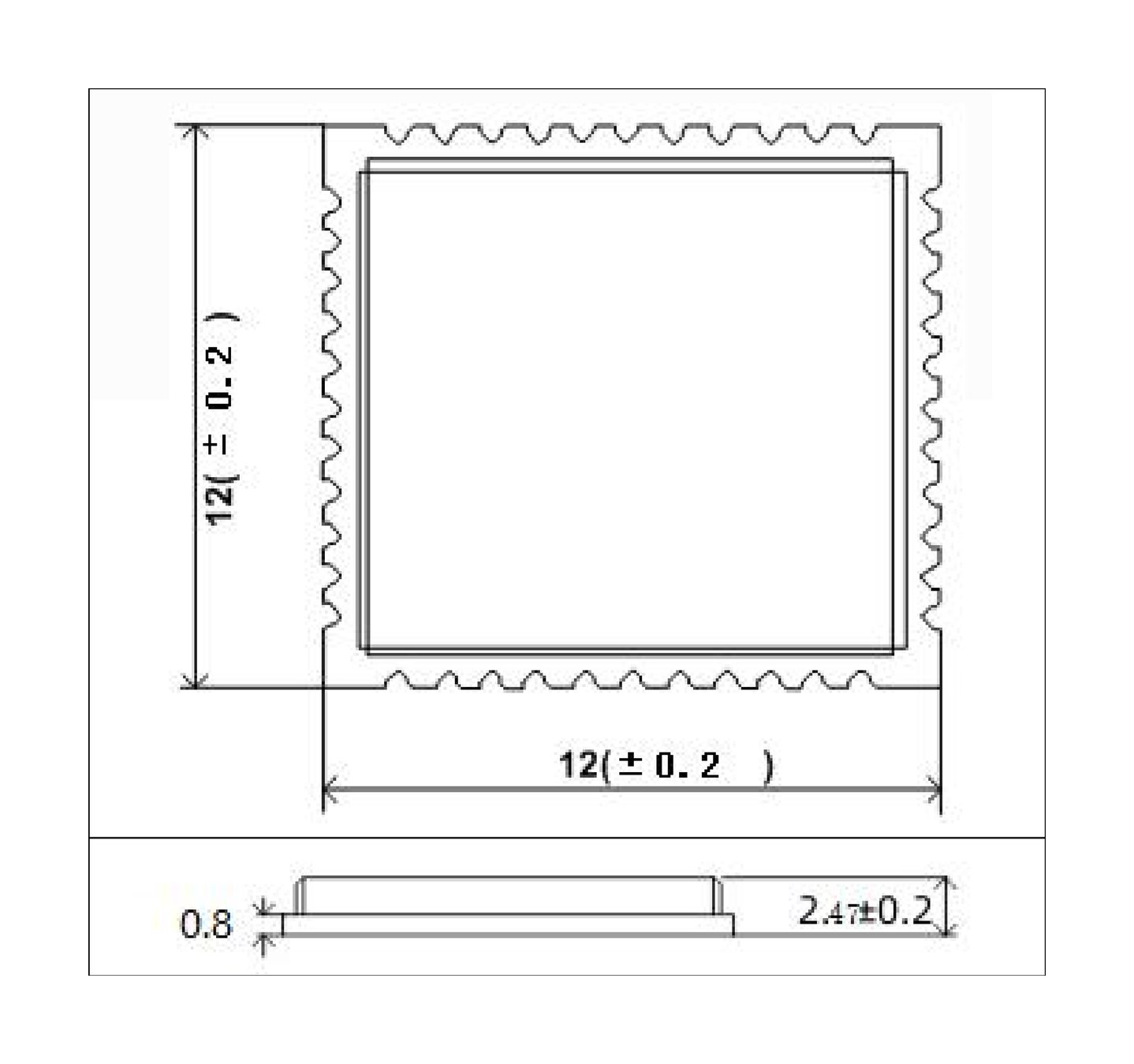

- Outline
- Reviews (0)
Description
Wi-Fi 6 Module Specifications | |
| Dual-band a/b/g/n/ac/ax, 286.8Mbps | |
| N240A-SRL | |
Property | Value |
| Wi-Fi Standard | Dual-band a/b/g/n/ac/ax |
| Interface Wi-Fi/BT | SDIO3.0/UART |
| Throughput | 286.8Mbps |
| Dimension (mm) | 12.0 × 12.0 |
The N240A-SRL is a Wi-Fi 6 (Dual-band a/b/g/n/ac/ax) module. It delivers up to 286.8Mbps over a SDIO3.0/UART host interface. The module measures 12.0 × 12.0 mm, suiting space-constrained embedded designs.
