3.0 GHz to 13 GHz Rejection ≥60 dB @ DC-2.5GHz High Pass Cavity Filter

3.0 GHz to 13 GHz Rejection ≥60 dB @ DC-2.5GHz High Pass Cavity Filter

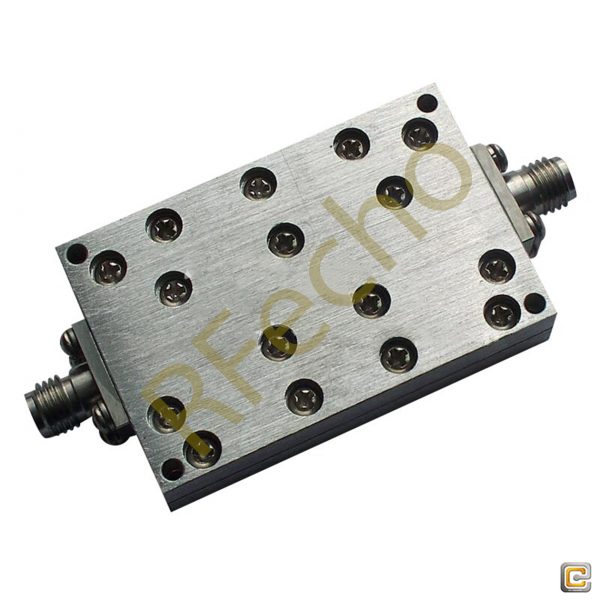

OHP-3000-13000:

  • Cut Off Frequency: 2.5GHz,
  • Pass Band Frequency: 3-13GHz,
  • Pass Band Insertion Loss: 1.5dB,
  • Pass Band VSWR: 2.0,
  • Rejection: ≥60 dB @ DC-2.5GHz.
SKU: OHP-3000-13000 Categories: , Tag:

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. More Cavity Filters…

High Pass Filter (OHP) – OHP-3000-13000:

  • Cut Off Frequency: 2.5GHz,
  • Pass Band Frequency: 3-13GHz,
  • Pass Band Insertion Loss: 1.5dB,
  • Pass Band VSWR: 2.0,
  • Rejection: ≥60 dB @ DC-2.5GHz.

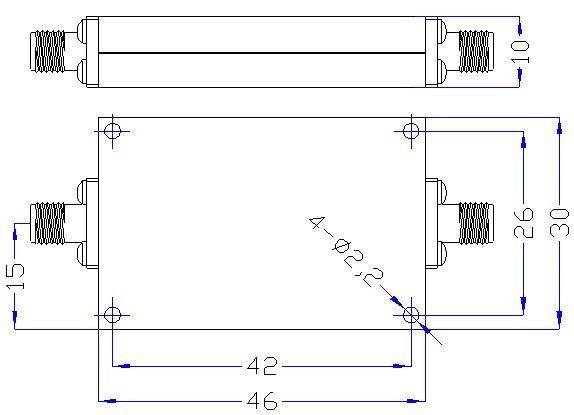

Outline

3.0 GHz to 13 GHz Rejection ≥60 dB @ DC-2500MHz High Pass Cavity Filter 01

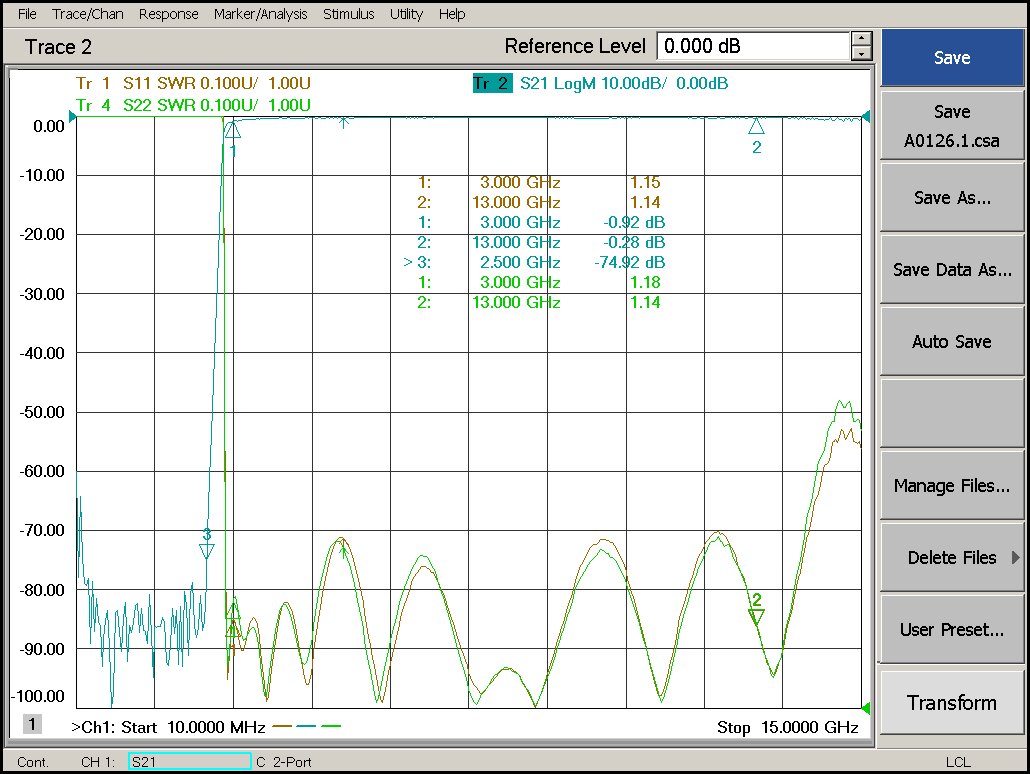

Plot

3.0 GHz to 13 GHz Rejection ≥60 dB @ DC-2500MHz High Pass Cavity Filter 02

PDF

Additional information

Weight 0.04 kg
Min. Pass Band Frequency (GHz)

Max. Pass Band Frequency (GHz)

Connection Type

Power Handling (W)

Insertion Loss

VSWR

≤2.0:1

Rejection

Impedance (Ω)

Surface Finish
