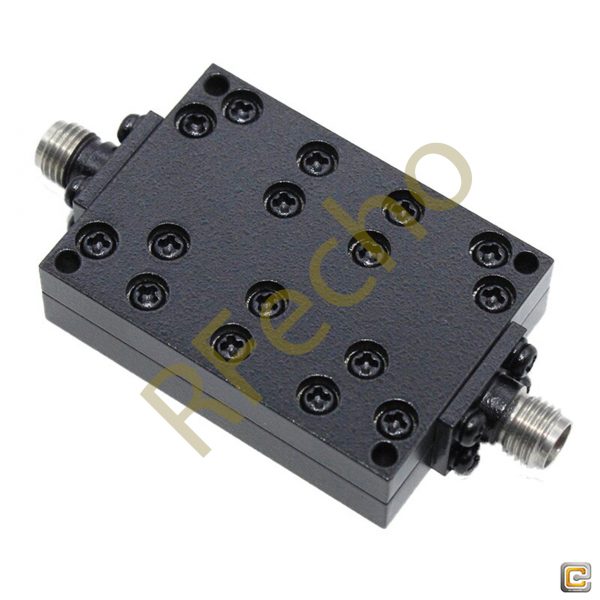

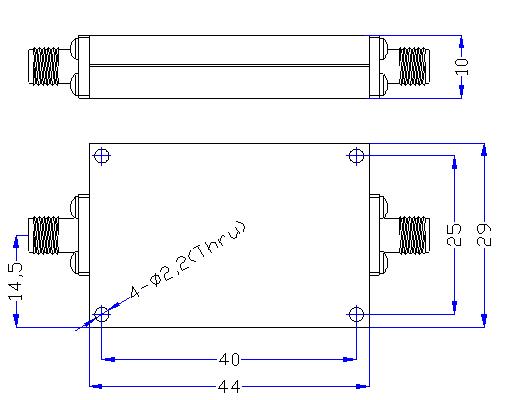

3GHz to 18GHz RF High Pass Filter rejection ≥ 60dB @ DC~2.6GHz Cavity High Pass Filter with SMA Female Connector

3GHz – 18GHz RF High Pass Filter model OHP: 3000-18000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This 3GHz – 18GHz RF High Pass Filter Manufactured with a passband frequency from 3GHz to 18GHz and a Cut-off frequency 3.0GHz. Our Cavity High Pass Filter provides a nominal insertion loss of ≤2.0dB @ 3GHz – 3.2GHz | ≤1.0dB @ 3.2GHz – 18GHz across its passband and a typical rejection of ≥60dB @ DC – 2.6GHz. Since the high end cutoff frequency of 3GHz – 18GHz RF High Pass Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Cavity High Pass Filter has Passband VSWR of ≤ 1.5:1 and power handling of ≤15W. 3GHz – 18GHz RF High Pass Filter is manufactured with SMA Female Connector and Net weight of 0.04Kg. 3GHz to 18GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 3GHz to 18GHz RF High Pass Filter is ready for shipping worldwide after purchase. Additional specs of this Cavity High Pass Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OHP-3000-18000 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Filter (OHP) – OHP-3000-18000:

  • Cut Off Frequency is 3.0GHz,
  • Pass Band Frequency: 3-18GHz,
  • Pass Band Insertion Loss: 2.0dB,
  • Pass Band VSWR: 1.5,
  • Rejection: ≥≥60 dB @ DC -2.6 GHz.

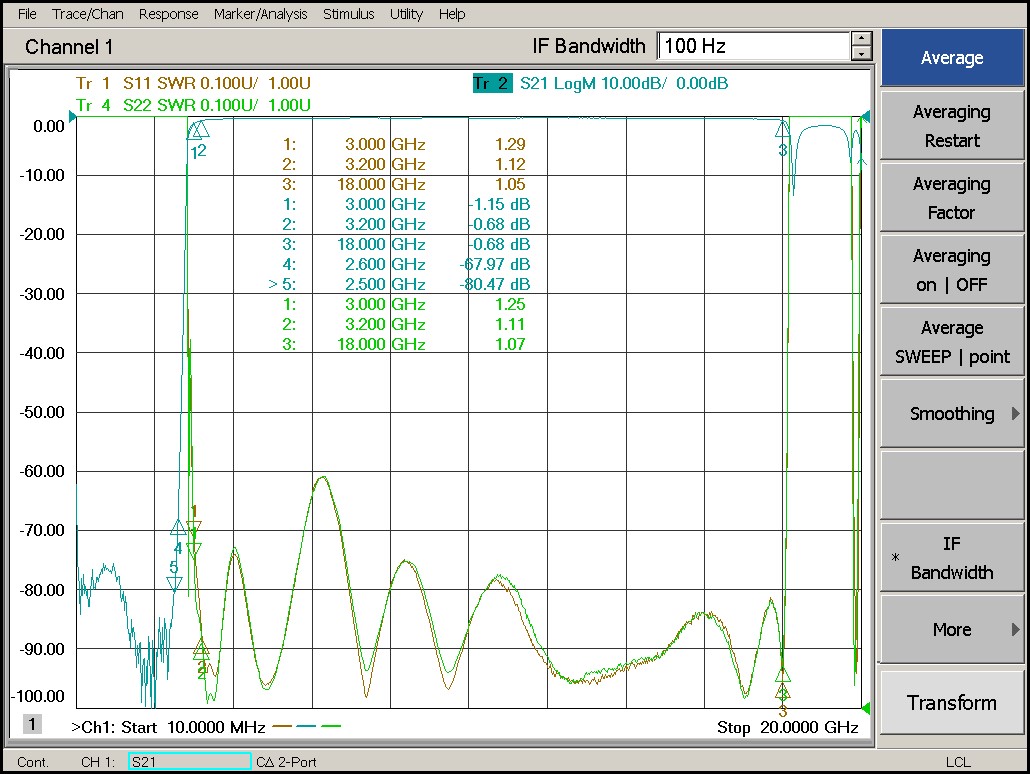

Additional information

Weight 0.04 kg
Min. Pass Band Frequency (GHz)

3

Max. Pass Band Frequency (GHz)

18

Connection Type

SMA-Female

Power Handling (W)

≤15

Insertion Loss

≤2.0dB @ 3.0 ~3.2GHz ≤1.0dB @ 3.2 ~18GHz

VSWR

≤1.5:1

Rejection

≥60 dB @ DC -2.6 GHz

Impedance (Ω)

50

Surface Finish

Guide Oxygen or Black Paint
