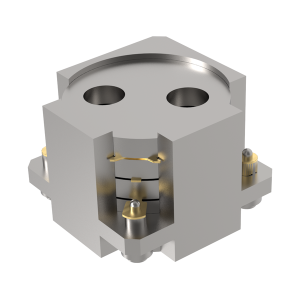

3.3 GHz to 3.6 GHz, 0.25 dB Insertion Loss, 20.0 dB Isolation, SMD Series Circulators Isolator-OH120A-3300-3600
$0.00
Stripline design
Surface mount package
Wide frequency coverage
Low insertion loss
High isolation
Excellent IMD3 performance
- Description
- Reviews (0)
Description
The product named OH120A-3300-3600 is high-performance stripline surface mount circulator designed for telecommunication applications requiring a compact form factor and excellent
OH120A-3300-3600 |
|
|
3.3 GHz to 3.6 GHz, 0.25 dB Insertion Loss, 20.0 dB Isolation, SMD Series Circulators Isolator-OH120A-3300-3600 |
|
Property |
Value |
|
Frequency (MHz) |
3300-3600 |
|
Return Loss (dB) |
20 |
|
Isolation (dB) |
20 |
|
Insertion Loss (dB) |
0.25 |
|
IMD3 (dBc) |
-65 |
|
Power (W) |
100 |
|
Power note |
2*10W |
|
Operating Temp ( degC) |
-40 to 125 |
Features |
|
|
Stripline design |
|
|
Surface mount package |
|
|
Wide frequency coverage |
|
|
Low insertion loss |
|
|
High isolation |
|
|
Excellent IMD3 performance |
|
Applications |
|
|
Designed for robust performance in communication systems. |
|
