3.4 GHz to 3.6 GHz, 0.35 dB Insertion Loss, 20.0 dB Isolation, SMD Series Circulators O-5MM-3400-3600
Frequency coverage: 0.05~40GHz
Power capacity: 50W~50KW
Bandwidth options: 10%, 20%, 30%, 40%, multi-octave
Interface form: Microstrip, stripline, coaxial isolator surface mount
Key features: Low loss, wide bandwidth, various form factors
- Description
- Datasheet
- Outline
- Reviews (0)
Description

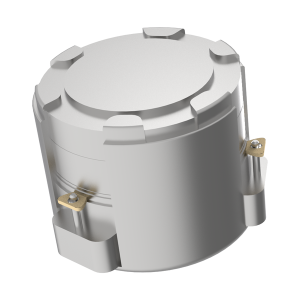

The product named O-5mm-3400-3600 is high-performance stripline surface mount circulator, designed for robust performance in communication systems.
O-5MM-3400-3600 | |
| 3.4 GHz to 3.6 GHz, 0.35 dB Insertion Loss, 20.0 dB Isolation, SMD Series Circulators O-5MM-3400-3600 | |
Property | Value |
| Frequency (MHz) | 3400-3600 |
| Return Loss (dB) | 20 |
| Isolation (dB) | 20 |
| Insertion Loss (dB) | 0.35 |
| IMD3 (dBc) | -60 |
| Power (W) | 20 |
| Power note | 2*1W |
| Size | 5mm |
| Operating Temp ( degC) | -40 to 125 |
Features | |
| Frequency coverage: 0.05~40GHz | |
| Power capacity: 50W~50KW | |
| Bandwidth options: 10%, 20%, 30%, 40%, multi-octave | |
| Interface form: Microstrip, stripline, coaxial isolator surface mount | |
| Key features: Low loss, wide bandwidth, various form factors | |
Applications | |
| Designed for robust performance in communication systems. | |
