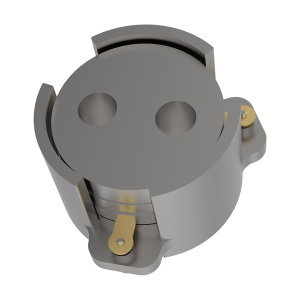

3.4 GHz to 3.8 GHz, 0.3 dB Insertion Loss, 20.0 dB Isolation, SMD Series Circulators Isolator-OH103C-3400-3800
$0.00
Stripline design
Surface mount package
Operating frequency from 1805 to 5000 MHz
High power handling up to 100W
Excellent isolation and return loss
Wide operating temperature range
- Description
- Reviews (0)
Description
The product named OH103C is high-performance stripline surface mount circulator designed for high-power communication systems, offering low insertion loss and high isolation across multiple frequency bands.
OH103C-3400-3800 |
|
|
3.4 GHz to 3.8 GHz, 0.3 dB Insertion Loss, 20.0 dB Isolation, SMD Series Circulators Isolator-OH103C-3400-3800 |
|
Property |
Value |
|
Frequency (MHz) |
3400-3800 |
|
Return Loss (dB) |
20 |
|
Isolation (dB) |
20 |
|
Insertion Loss (dB) |
0.3 |
|
IMD3 (dBc) |
-60 |
|
Power (W) |
100 |
|
Power note |
2*10W |
|
Operating Temp ( degC) |
-40 to 105 |
Features |
|
|
Stripline design |
|
|
Surface mount package |
|
|
Operating frequency from 1805 to 5000 MHz |
|
|
High power handling up to 100W |
|
|
Excellent isolation and return loss |
|
|
Wide operating temperature range |
|
Applications |
|
|
Designed for robust performance in communication systems. |
|
