325GHz-500GHz ,VSWR(Max):1.12, Waveguide Load 82506T

325GHz-500GHz ,VSWR(Max):1.12, Waveguide Load 82506T

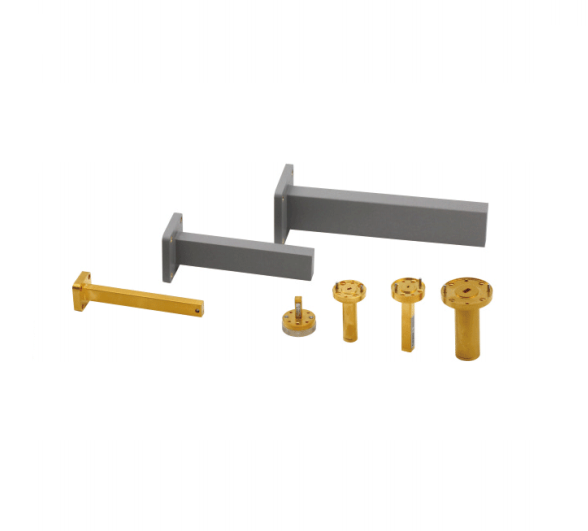

The waveguide load frequency covers 500GHz, with complete matching loads, excellent performance, small voltage standing  wave ratio and power up to 30KW. The basic materials are copper, aluminum and stainless steel, and the surface treatment methods include gold plating, silver plating, nickel plating, passivation and conductive oxidation.

The application information includes: waveguide load is necessaryfor checking the working ability andverification of various microwaveimpedance measuring instruments(including panoramic voltagestandingwave coefficient (KCBH)measuring instruments),and can be customized according tocustomer requirements.

SKU: 82506T Categories: Load, Passive Devices, Waveguide Load

Description

SPEC

Waveguide Load

325GHz-500GHz ,VSWR(Max):1.12, Waveguide Load

 82506T

The waveguide load frequency covers 500GHz, with complete matching loads, excellent performance, small voltage standing  wave ratio and power up to 30KW. The basic materials are copper, aluminum and stainless steel, and the surface treatment methods include gold plating, silver plating, nickel plating, passivation and conductive oxidation.

The application information includes: waveguide load is necessaryfor checking the working ability andverification of various microwaveimpedance measuring instruments(including panoramic voltagestandingwave coefficient (KCBH)measuring instruments),and can be customized according tocustomer requirements.

Property

Value

Min. Frequency (GHz)

325

Max. Frequency (GHz)

500

waveguide

WR2

VSWR(Max)

1.12

Features

Rich product types

The frequency covers 500GHz

Can be customized according to user needs

PDF

325GHz-500GHz ,VSWR(Max):1.12,  Waveguide Load   82506T

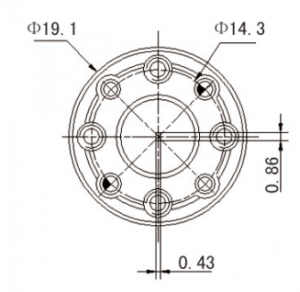

Outline

Additional information

Min. Frequency (GHz)

325

Max. Frequency (GHz)

500

VSWR(Max)

1.12
