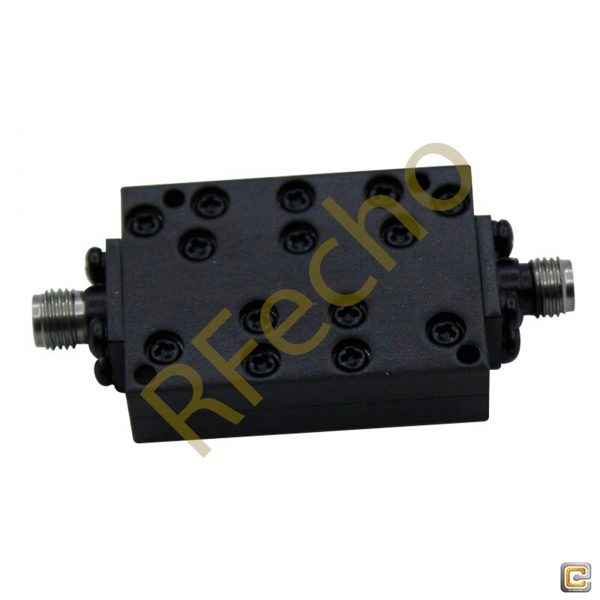

High Pass Cavity Passive Filter 4.5GHz to 21GHz Cavity High Pass Filter rejection ≥ 60dB @ DC~3.98GHz with SMA Female Connector

High Pass Cavity Passive Filter model OHP: 4500-21000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This High Pass Cavity Passive Filter Manufactured with a passband frequency from 4.5GHz to 21GHz and a Cut-off frequency 4.5GHz. Our Cavity High Pass Filter provides a nominal insertion loss of ≤2.0dB @ 4.5GHz – 4.75GHz | ≤1.0dB @ 4.75GHz – 21GHz across its passband and a typical rejection of ≥60dB @ DC – 3.98GHz. Since the high end cutoff frequency of High Pass Cavity Passive Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Cavity High Pass Filter has Passband VSWR of ≤1.5:1 @ 4.5GHz – 20GHz | ≤1.7:1 @ 20GHz – 21GHz and power handling of ≤15W. High Pass Cavity Passive Filter is manufactured with SMA Female Connector and Net weight of 0.03Kg.
4.5GHz to 21GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 4.5GHz to 21GHz High Pass Cavity Microwave Filter is ready for shipping worldwide after purchase. Additional specs of this Cavity High Pass Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OHP-4500-21000 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Filter (OHP) – OHP-4500-21000:

  • Cut Off Frequency: 4.5GHz,
  • Pass Band Frequency: 4.5-21GHz,
  • Pass Band Insertion Loss: 2.0dB,
  • Pass Band VSWR: 1.7,
  • Rejection: ≥60 dB @ DC-3.98 GHz.

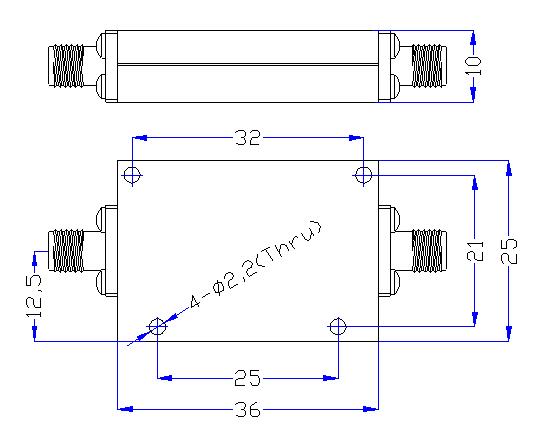

Additional information

Weight 0.03 kg
Min. Pass Band Frequency (GHz)

4.5

Max. Pass Band Frequency (GHz)

21

Connection Type

SMA-Female

Power Handling (W)

≤15

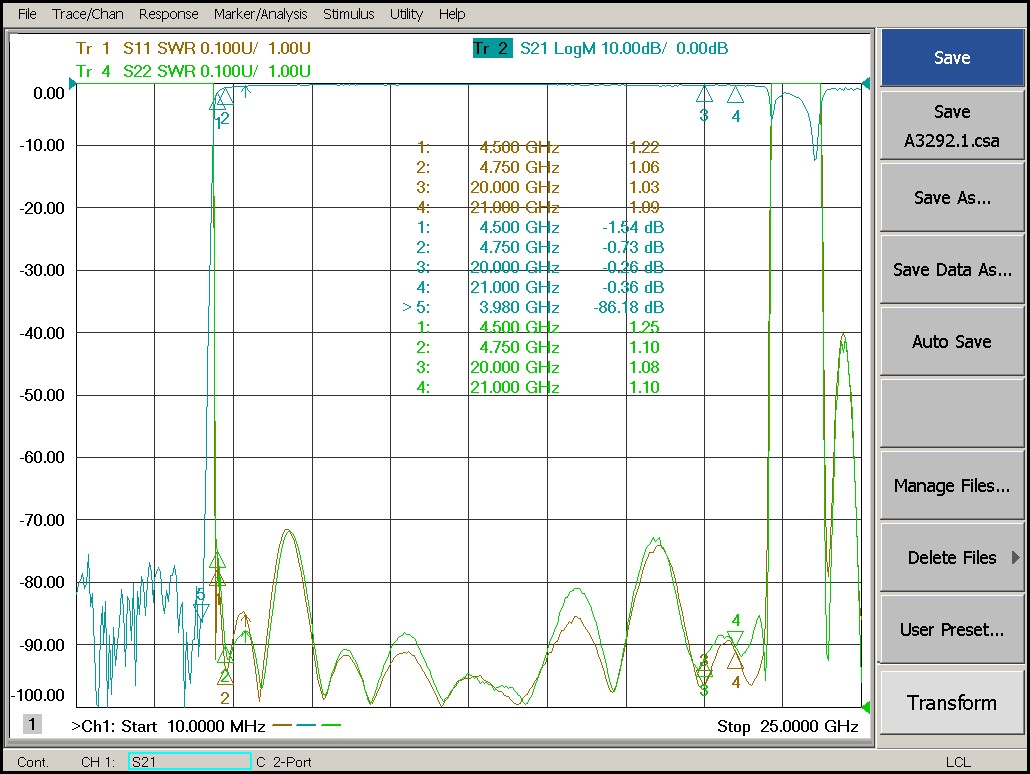

Insertion Loss

≤2.0dB @ 4.5 ~4.75GHz ≤1.0dB @ 4.75 ~21GHz

VSWR

≤1.5:1 @ 4.5~20GHz ≤1.7:1 @ 20~21GHz

Rejection

≥60 dB @ DC-3.98 GHz

Impedance (Ω)

50

Surface Finish

Guide Oxygen or Black Paint
