4 dBi Gain, 0.7 GHz to 4 GHz, Directional Antenna (f 680 MHz)

4 dBi Gain, 0.7 GHz to 4 GHz, Directional Antenna (f 680 MHz)

Model OLP-740 is a directional antenna that offers the frequency range from 0.7 GHz to 4 GHz. This model operate with the gain of 4 dBi, where the connection type is SMA (F) or N. Every antenna goes through rigorous testing in our laboratories before dispatch and is equipped with a high quality rubber paint which offers protection against mechanical damage and environmental influence, a top-quality integrated tripod connection and a SMA connector. Directional EC Test-Antenna based on a gold-coated high tech Teflon material to reach higher frequencies.

This antenna also covers the lower Tetra/BOS band. All antennas include a complete high resolution (10 MHz steps!) calibration data set with up to 533 calibration points (on CD). This offers the ability to make a very accurate EC measurement with any Spectrum Analyzer. All antennas are developed, individually produced and calibrated. This guarantees highest standard so that we can offer every customer a full 10 years warranty for all EMC antennas.

Description

SPEC

Directional Antenna (f 680 MHz)

4 dBi Gain, 0.7 GHz to 4 GHz, Directional Antenna (f 680 MHz)

OLP-740

Model OLP-740 is a directional antenna that offers the frequency range from 0.7 GHz to 4 GHz. This model operate with the gain of 4 dBi, where the connection type is SMA (F) or N. Every antenna goes through rigorous testing in our laboratories before dispatch and is equipped with a high quality rubber paint which offers protection against mechanical damage and environmental influence, a top-quality integrated tripod connection and a SMA connector. Directional EC Test-Antenna based on a gold-coated high tech Teflon material to reach higher frequencies.

This antenna also covers the lower Tetra/BOS band. All antennas include a complete high resolution (10 MHz steps!) calibration data set with up to 533 calibration points (on CD). This offers the ability to make a very accurate EC measurement with any Spectrum Analyzer. All antennas are developed, individually produced and calibrated. This guarantees highest standard so that we can offer every customer a full 10 years warranty for all EMC antennas.

Property

Value

Min. Frequency (GHz)

0.7

Max. Frequency (GHz)

4

Gain(dBi)

4

Impedance (?)

50

VSWR (Typ.)

1:2

Connection Type

SMA (F) or N

Tripod Connection (in.)

1/4

Features

Includes exhaustive calibration data (on CD)

Special designed radome for perfect antenna protection

Gold coating for stable performance

Wide bandwidth

Coverage of various mobile radio frequency ranges

Gold coatingfor stable performance? Wide bandwidth

Suitable for field-strength and EMC measurements due to high precision

Compact and sturdy design

Can be used in the lab and for open-field application

Applications

ISM434, LTE800, ISM868, GSM900, GSM1800, GSM1900

UMTS?Universal Mobile Telecommunications System?

DECT?Digital Enhanced Cordless Telecommunications?

Bluetooth? WiFi?WLAN?Microwave, LTE2.6, WiMAX, 5GHz WLAN

PDF

Outline

Plot

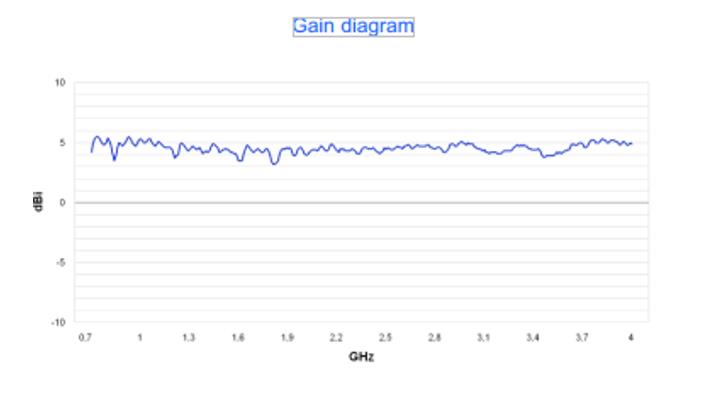

OLP 740 plot1 4 dBi Gain, 0.7 GHz to 4 GHz, Directional Antenna (f 680 MHz)OLP 740 plot2 4 dBi Gain, 0.7 GHz to 4 GHz, Directional Antenna (f 680 MHz)OLP 740 plot3 4 dBi Gain, 0.7 GHz to 4 GHz, Directional Antenna (f 680 MHz)

Additional information

Min. Frequency (GHz)

0.7

Max. Frequency (GHz)

4

Gain (dBi)

4

VSWR (Typ.)

Connection Type

Impedance (Ω)

Net Weight (Kg)
