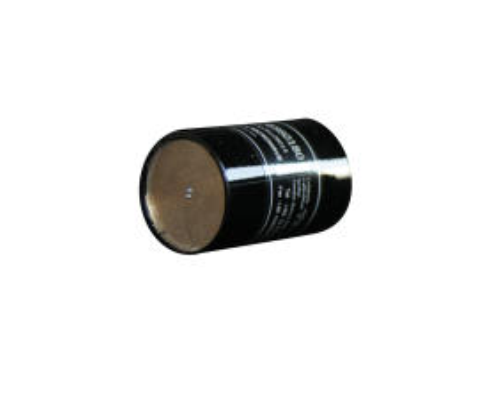

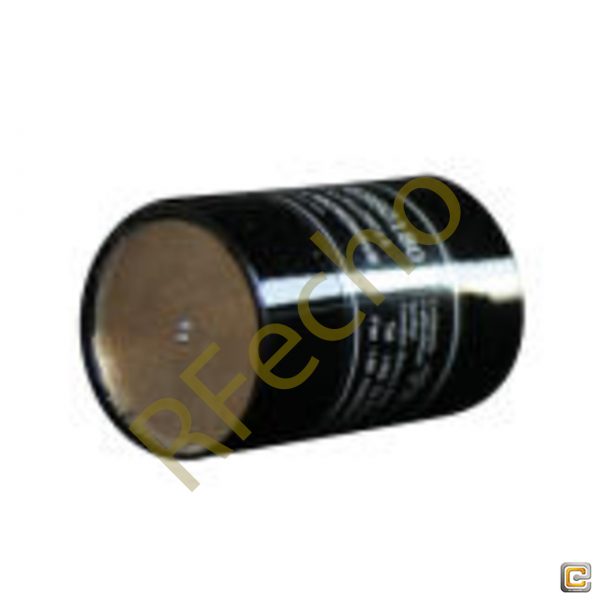

4 GHz to 8 GHz Cavity Backed Spiral Antenna OBS-4080

HOT

4 GHz to 8 GHz Cavity Backed Spiral Antenna OBS-4080

0 out of 5

$1235

The OBS-4080 is a compact, moderate gain, moderate VSWR, circularly-polarized cavity-backed spiral antenna designed to transmit and receive in the frequency band of 4.0 GHz to 8.0 GHz. The antenna exhibits an excellent impedance match and radiation pattern.

It is capable of receiving both linearly polarized signals and a circularly polarized signal.The linear gain (dBil) is about 3 dB lower than the circular gain (dBic).
The antenna has the advantages of a low profile, a planar aperture, no phase center offset, near constant beam width across the frequency band, normally symmetrical radiation beamwidth,extreme flexibility for carrying, and light weight.

The seadvant ages render the antenna a very good candidate for electronic-warfare,direction-finding, telemetry and surveillance systems, as well as flush-mounted airborne applications. The antenna can be used as a broadband feed for reflector antennas.

The antenna’s outermost dimensions are a diameter of 68mm and height of 50mm.

SKU: OBS-4080 Categories: Cavity Backed Spiral Antenna, RF Antenna

Description

SPEC

Cavity Backed Spiral Antenna

4GHz to 8GHz

OBS-4080

The OBS-4080 is a compact, moderate gain, moderate VSWR, circularly-polarized cavity-backed spiral antenna designed to transmit and receive in the frequency band of 4.0 GHz to 8.0 GHz.  The antenna exhibits an excellent impedance match and radiation pattern.

It is capable of receiving both linearly polarized signals and a circularly polarized signal. The linear gain (dBil) is about 3 dB lower than the circular gain (dBic).

The antenna has the advantages of a low profile, a planar aperture, no phase center offset, near constant beam width across the frequency band, normally symmetrical radiation beam-width, extreme flexibility for carrying, and light weight.

The seadvant ages render the antenna a very good candidate for electronic-warfare, direction-finding, telemetry and surveillance systems, as well as flush-mounted airborne applications.  The antenna can be used as a broadband feed for reflector antennas.

The antenna’s outermost dimensions are a diameter of 68mm and height of 50mm.



Applications

Satellite communications
Personal mobile communications
Electronic Warfare, Direction Finding, Telemetry and Surveillance Systems

Embedded Airborne Applications





Features

Very convenient to carry

Wide frequency band

Light Weight

small volume

Easy package

Main lobe width

With circular polarization, wide beam width



Part No.

OBS-4080

Frequency*

Nominal Gain3 dB

VSWR

Pattern

3 dB Beam width

10 dB Beam width

Input Impedance

Input Connector

4.0GHz-8.0GHz

2.5 Typ~5.6Typ

2.5?1Maximum2.0:1 Typical

Directional Bean

65°Minimum?Typical

120° Typical

50 Ohms Nominal

SMA-female







PDF

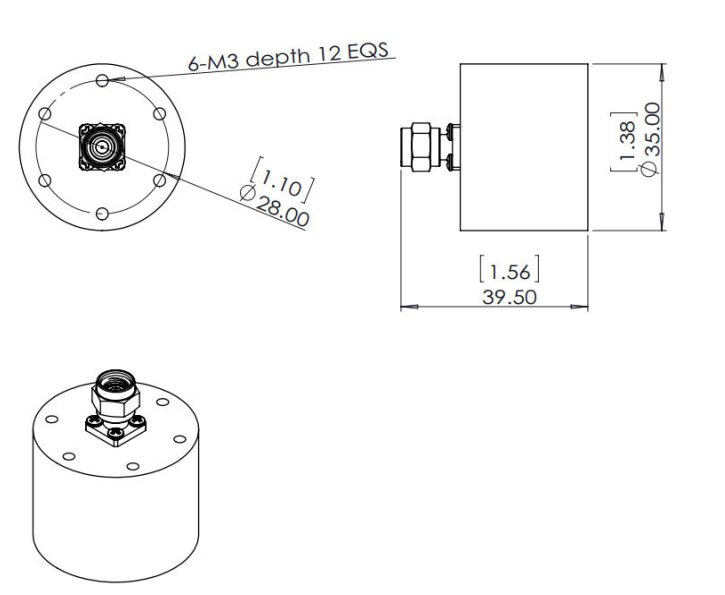

Outline

4 GHz to 8 GHz Cavity Backed Spiral Antenna OBS-4080

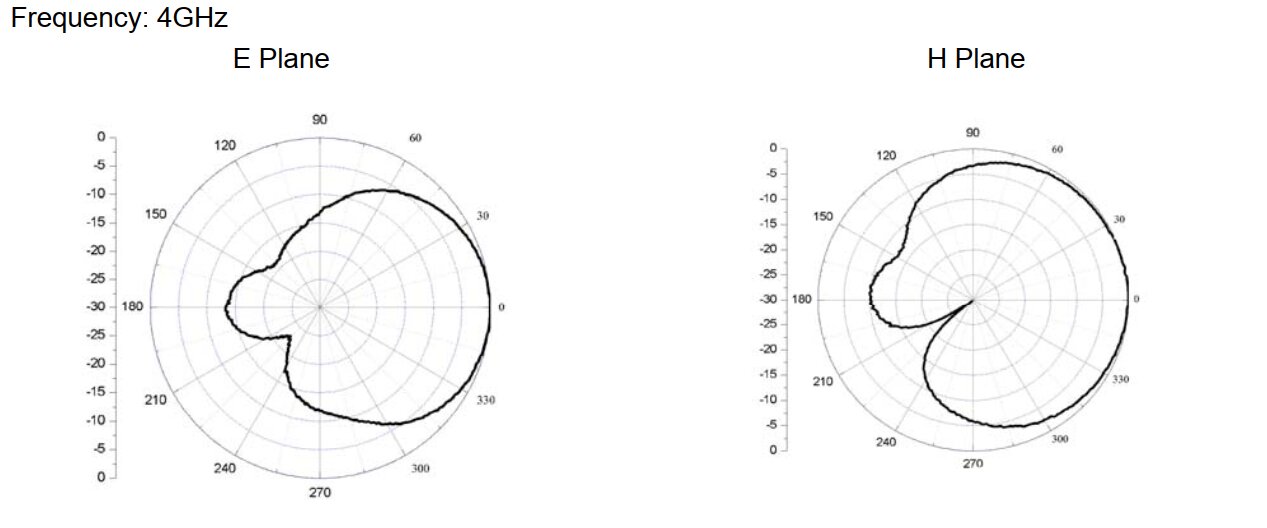

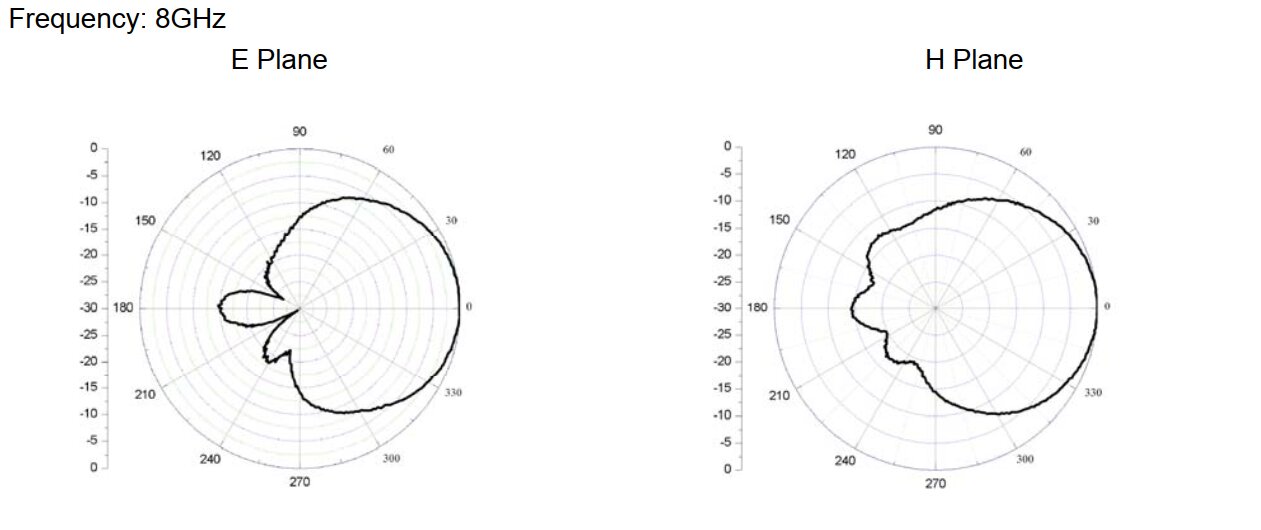

Plot

4 GHz to 8 GHz Cavity Backed Spiral Antenna OBS-40804 GHz to 8 GHz Cavity Backed Spiral Antenna OBS-4080

Additional information

Min. Frequency (GHz)

4

Max. Frequency (GHz)

8

Gain (dBi)

2.5 Typ~5.6Typ

VSWR

2.5:1

Impedance (Ω)

50

Connection Type

SMA-Female

Polarization

LHCP/RHCP
