40 GHz, 2.92mm Female to 1.85mm Female, Between Adapters

Original price was: $121.Current price is: $103.

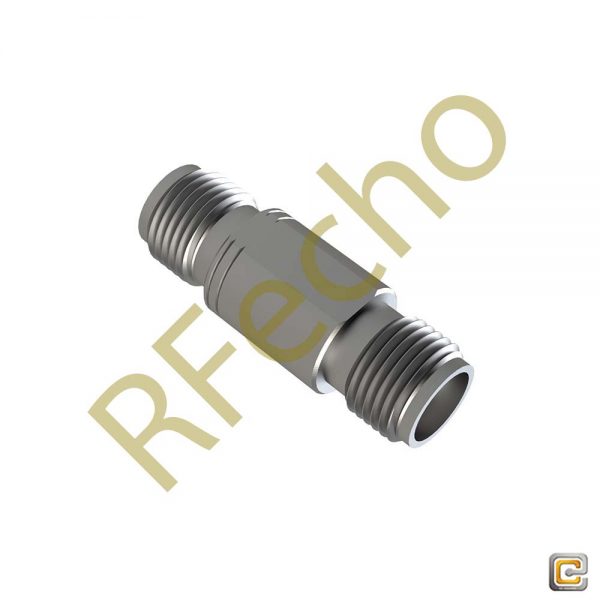

This model OA363800Z01 is 2.92mm Female Straight to 1.85mm Female Straight. This series 2.92mm Female Straight to 1.85mm Female Straight have the operating frequency of 40 GHz. Adapters that have a male to female or plug to jack configuration are known as connector savers.

Between Series Adapters are the passive components which are used to transfer signals from one coaxial connector interface to another with minimal losses. Between adapters have different connector configurations on either side of the adapter.

Description

Additional information

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

40

VSWR (Max.)

1.20:1

Conector 1

2.92mm

Gender 1

Female

Connector 1 Body Style

Straight

Conector 2

1.85mm

Gender 2

Female

Connector 2 Body Style

Straight

Durability (Cycle)

500

Impedance (Ω)

50
