40 GHz, 2.92mm Male to 2.92mm Female, IN Adapters

-15%

40 GHz, 2.92mm Male to 2.92mm Female, IN Adapters

$51

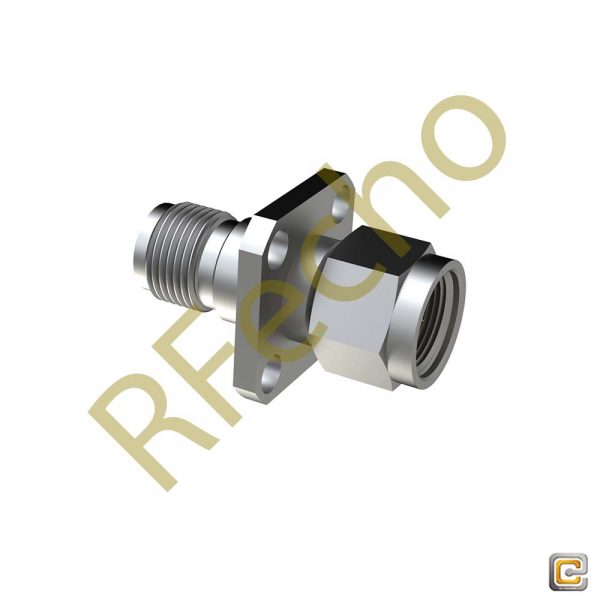

This model OA363610FS01 is 2.92mm Male Straight to 2.92mm Female Straight. This series 2.92mm Male Straight to 2.92mm Female Straight have the operating frequency of 40 GHz. Adapters that have a male to female or plug to jack configuration are known as connector savers.

Between Series Adapters are the passive components which are used to transfer signals from one coaxial connector interface to another with minimal losses. Between adapters have different connector configurations on either side of the adapter.

SKU: OA363610FS01 Categories: Adapters and Connectors, IN Series Adapters, RF Adapters

Description

PDF

Additional information

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

40

VSWR (Max.)

1.15:1

Conector 1

2.92mm

Gender 1

Male

Connector 1 Body Style

Straight

Conector 2

2.92mm

Gender 2

Female

Connector 2 Body Style

Straight

Durability (Cycle)

500

Impedance (Ω)

50
