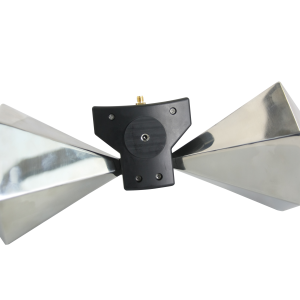

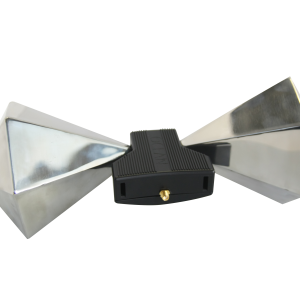

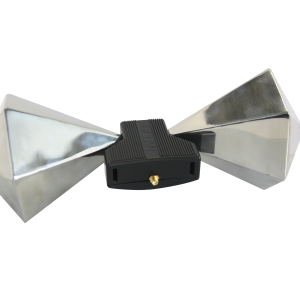

-45 dBi to 1 dBi Gain,20 MHz to 3000 MHz, SMA (F) or N, Biconical Antenna

-45 dBi to 1 dBi Gain,20 MHz to 3000 MHz, SMA (F) or N, Biconical Antenna

The OBC-20M-30 has a highly expanded frequency range of up to 3 GHz for high EMC compliance standards. World’s most compact EMC antenna with this performance.

Every antenna goes through rigorous testing in our laboratories before dispatch and is equipped with high-quality rubber paint which offers protection against mechanical damage and environmental influence, a top-quality integrated tripod connection, and an SMA connector.

Description

SPEC

The OBC-20M-30 has a highly expanded frequency range of up to 3 GHz for high EMC compliance standards. World’s most compact EMC antenna with this performance.

Every antenna goes through rigorous testing in our laboratories before dispatch and is equipped with high-quality rubber paint which offers protection against mechanical damage and environmental influence, a top-quality integrated tripod connection, and an SMA connector.

Biconical Antenna Specifications

-45 dBi to 1 dBi Gain,20 MHz to 3000 MHz, SMA (F) or N

OBC-20M-30

Property

Value

Min. Frequency (MHz)

20

Max. Frequency (MHz)

3000

Impedance (?)

50

Max. Output Power (mW), AM

5000

Min. Gain (dBi)

-45

Max. Gain (dBi)

1

Connection Type

SMA (F) or N

Features

The excellent cost-effective choice for low-frequency measurements down to 50MHz

Typical standard calibration data (on CD)

Coverage of various mobile radio frequency ranges

Suitable for field-strength and EMC measurements due to high precision

Compact design

Can be used in the lab and for open-field application

Applications

Pre-Compliance-Test even for very low signals

Tetra/BOS Radio & TV

ISM434

LTE800

ISM868

GSM900

PDF

Additional information

Min. Frequency (MHz)

Max. Frequency (MHz)

Impedance (Ω)

Power Handling (W)

Max. Output Power (mW), AM

Min. Gain (dBi)

Max. Gain (dBi)

Balun Type Transform Ratio

Connection Type
