4KHz-100MHz 100W RF Power Amplifier
The 4KHz-100MHz 100W product is the core product of our company. It adopts all-solid continuous wave scheme, redundancy and high reliability circuit design scheme, and has perfect self-protection ability. Operating frequency coverage: 4KHz-100MHz, minimum saturation output power: 100W, support for local/remote work
- Description
- Additional information
- Reviews (0)
Description
SPEC
|
EMC POWER AMPLIFIER |
|
|
4KHz-100MHz 100W RF Power Amplifier |
|
|
OPA4K10-100W |
|
|
The 4KHz-100MHz 100W product is the core product of our company. It adopts all-solid continuous wave scheme, redundancy and high reliability circuit design scheme, and has perfect self-protection ability. Operating frequency coverage: 4KHz-100MHz, minimum saturation output power: 100W, support for local/remote work |
|
|
Property |
Value |
|
Min Frequency |
4KHz |
|
Max. Frequency |
100MH |
|
Gain (dBi) |
50 |
|
VSWR |
2 |
|
Output Power(W) |
100 |
|
Flatness (dB) |
±3 |
|
Voltage (V) |
220 |
|
Power Dissipation (W) |
1200 |
|
Features |
|
|
Reasonable design and high heat dissipation efficiency |
|
|
High reliability of built-in control, monitoring, and protection circuits |
|
|
Standardized chassis design for easy cabinet installation |
|
|
Applications |
|
|
Widely used in wireless communication |
|
|
Medical |
|
|
Electromagnetic compatibility and other fields |
|

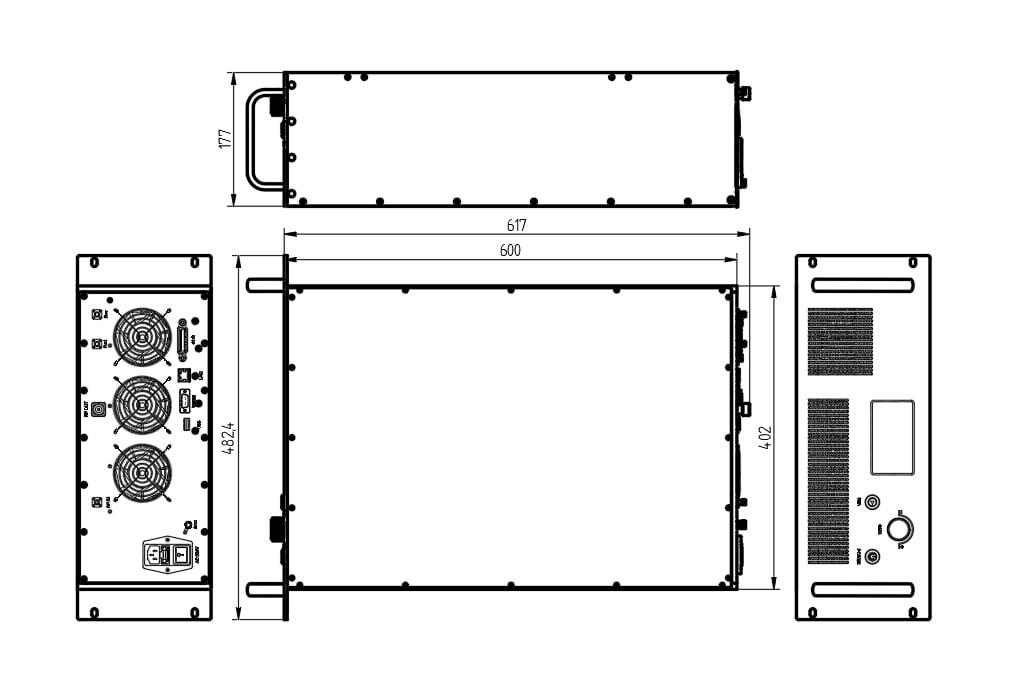

Outline

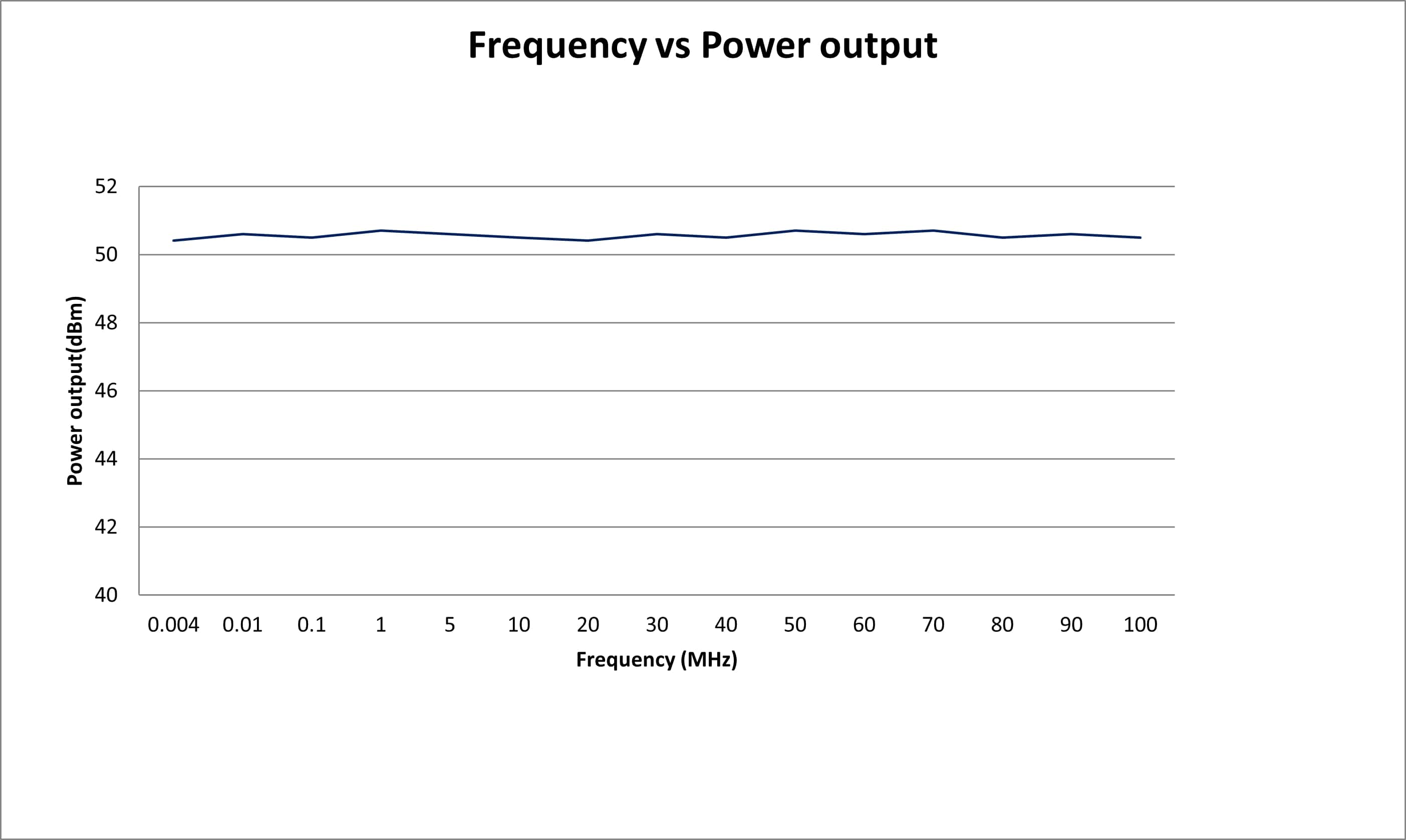

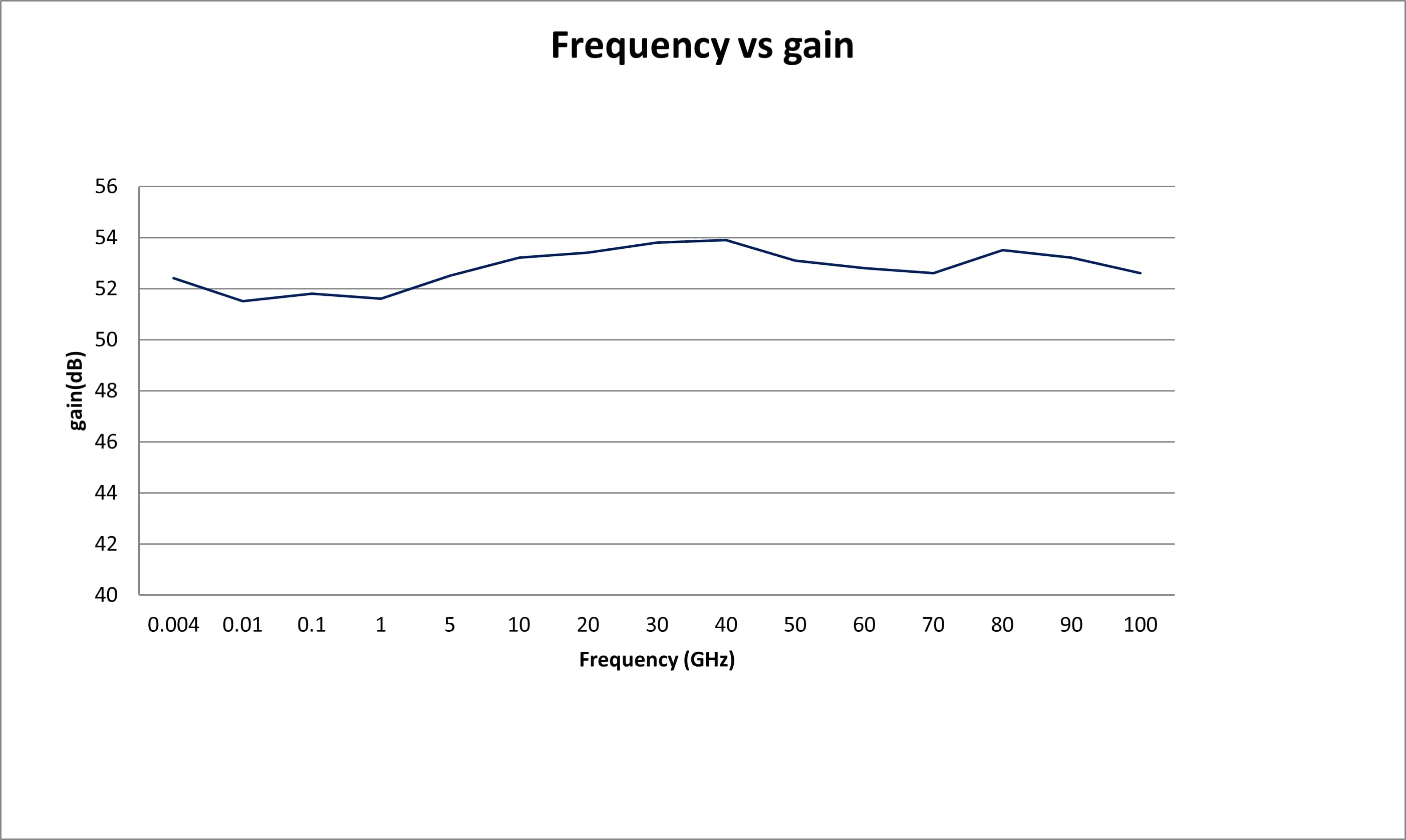

Plot
Additional information
| Min Frequency | |
|---|---|
| Max Frequency | |
| Gain (dBi) | 50 |
| VSWR | 2 |
| Output Power(W) | 100 |
| Flatness (dB) | ±3 |
| Voltage (V) | 220 |
| Power Dissipation (W) | 1200 |
