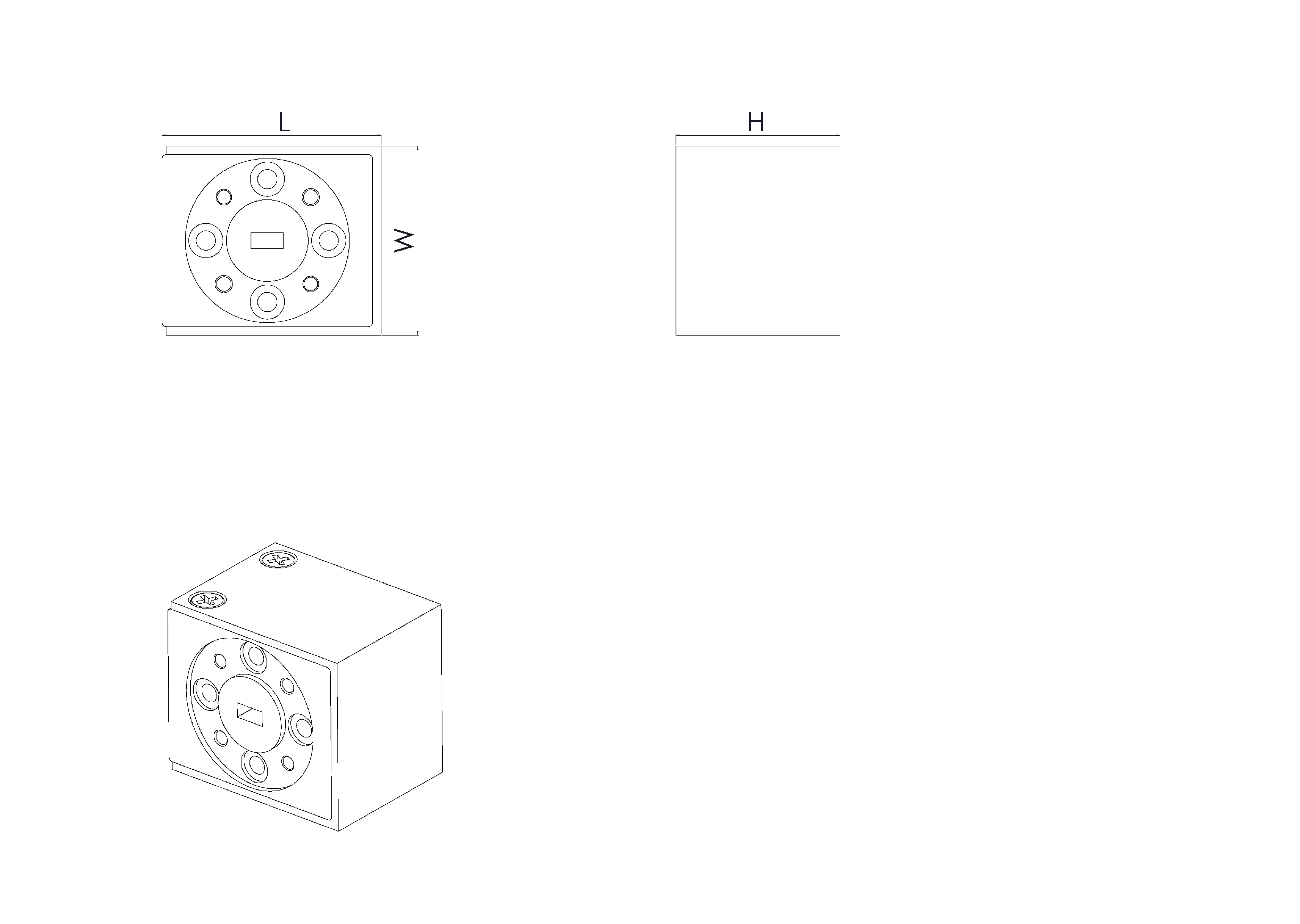

5.7 GHz to 7.15 GHz, 0.25 dB Insertion Loss, -7.1 dB Isolation, Waveguide Series Isolator-OHTD5.7-7.1-5.7-7.1
$0.00
Wide frequency range coverage: 5.5GHz to 110GHz
Available bandwidths: 10%, 20%, 30%, 40%, and octave
Peak power range: 1W to 40MW
Average power range: 1W to 100KW
Applications: Civil, military, aerospace, and space technology
Customizable specifications according to customer requirements
High performance and high reliability
- Description
- Reviews (0)
Description

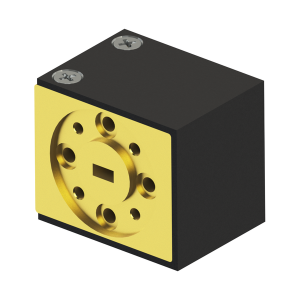

The product named OHTD5.7-7.1 is high-performance A05 waveguide isolator & circulator, offering wide frequency coverage and high reliability for applications in civil, military, and aerospace sectors.
OHTD5.7-7.1-5.7-7.1 |
|
|
5.7 GHz to 7.15 GHz, 0.25 dB Insertion Loss, -7.1 dB Isolation, Waveguide Series Isolator-OHTD5.7-7.1-5.7-7.1 |
|
Property |
Value |
|
Frequency (MHz) |
5.7-7.15 |
|
Return Loss (dB) |
7 |
|
Isolation (dB) |
-7.1 |
|
Insertion Loss (dB) |
0.25 |
|
IMD3 (dBc) |
23 |
|
Power (W) |
21 |
|
Operating Temp ( degC) |
100 to 30 |
Features |
|
|
Wide frequency range coverage: 5.5GHz to 110GHz |
|
|
Available bandwidths: 10%, 20%, 30%, 40%, and octave |
|
|
Peak power range: 1W to 40MW |
|
|
Average power range: 1W to 100KW |
|
|
Applications: Civil, military, aerospace, and space technology |
|
|
Customizable specifications according to customer requirements |
|
|
High performance and high reliability |
|
Applications |
|
|
Offering wide frequency coverage and high reliability for applications in civil, military, and aerospace sectors. |
|
