6.0 GHz to 18 GHz Rejection ≥60 dB @ DC-5.4 GHz High Pass Cavity Filter

6.0 GHz to 18 GHz Rejection ≥60 dB @ DC-5.4 GHz High Pass Cavity Filter

OHP-6000-18000:

  • Cut Off Frequency: 5.4GHz,
  • Pass Band Frequency: 6-18GHz,
  • Pass Band Insertion Loss: 2.0dB,
  • Pass Band VSWR: 1.6,
  • Rejection: ≥60 dB @ DC-5.4 GHz.



SKU: OHP-6000-18000 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Filter (OHP) – OHP-6000-18000:

  • Cut Off Frequency: 5.4GHz,
  • Pass Band Frequency: 6-18GHz,
  • Pass Band Insertion Loss: 2.0dB,
  • Pass Band VSWR: 1.6,
  • Rejection: ≥60 dB @ DC-5.4 GHz.

Outline

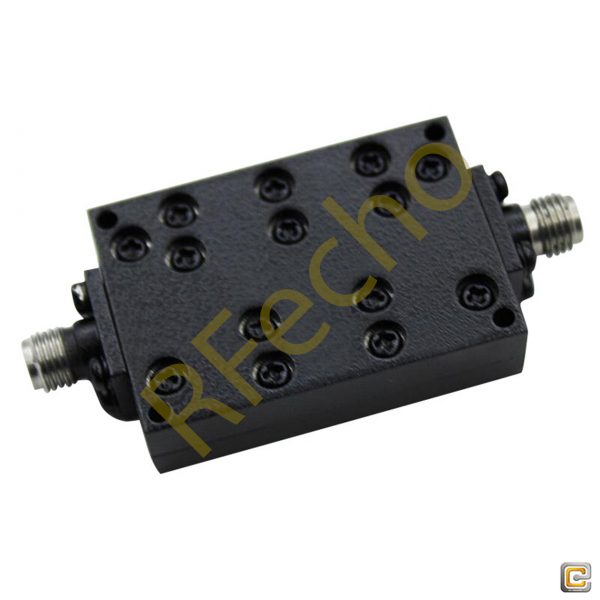

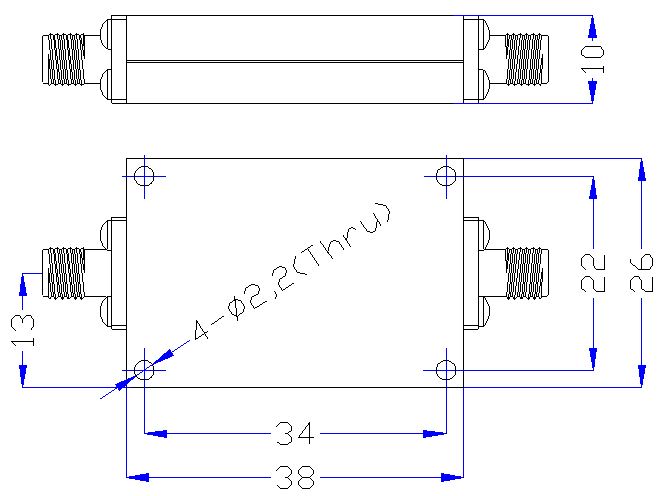

6.0 GHz to 18 GHz Rejection ≥60 dB @ DC-5.4 GHz High Pass Cavity Filter 01

Plot

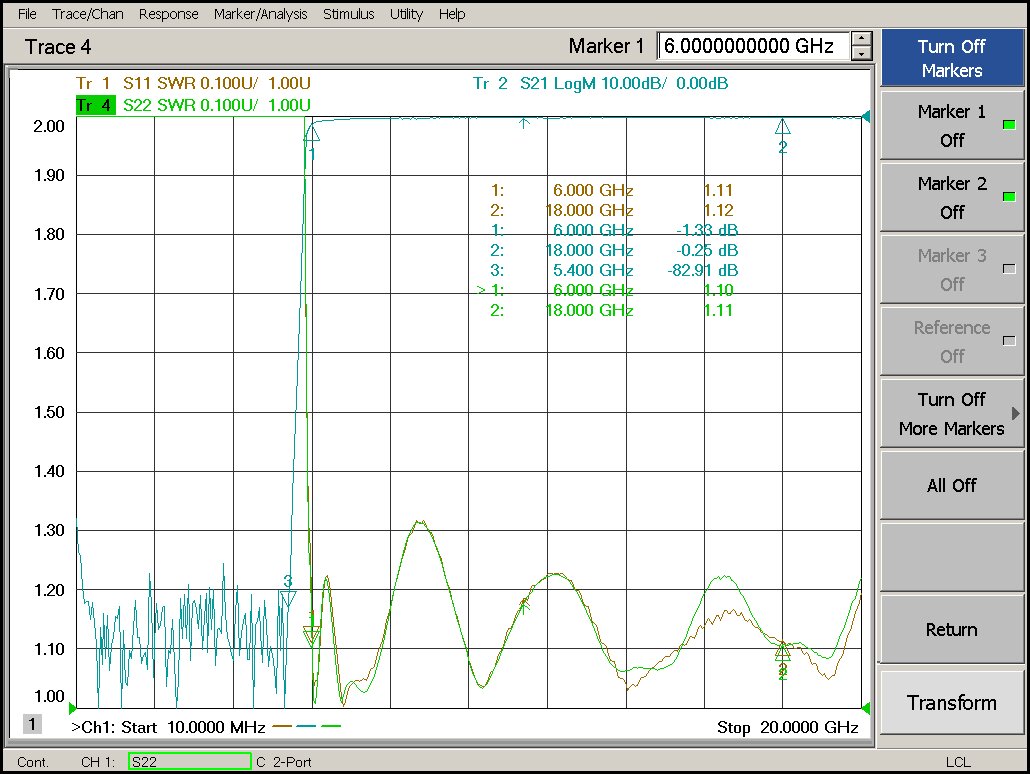

6.0 GHz to 18 GHz Rejection ≥60 dB @ DC-5.4 GHz High Pass Cavity Filter 02

PDF

Additional information

Weight 0.03 kg
Min. Pass Band Frequency (GHz)

6.0

Max. Pass Band Frequency (GHz)

18

Connection Type

SMA-Female

Power Handling (W)

≤15

Insertion Loss

≤2.0dB

VSWR

≤1.6:1

Rejection

≥60 dB @ DC-5.4 GHz

Impedance (Ω)

50

Surface Finish

Guide Oxygen or Black Paint
