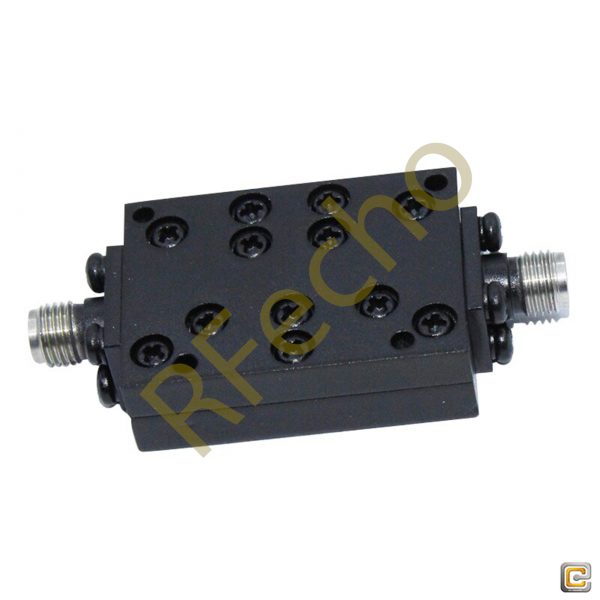

6GHz to 24GHz Microwave Passive High Pass Filter rejection ≥ 60dB @ DC~5.4GHz High Pass Microwave Cavity Filter with SMA Female Connector

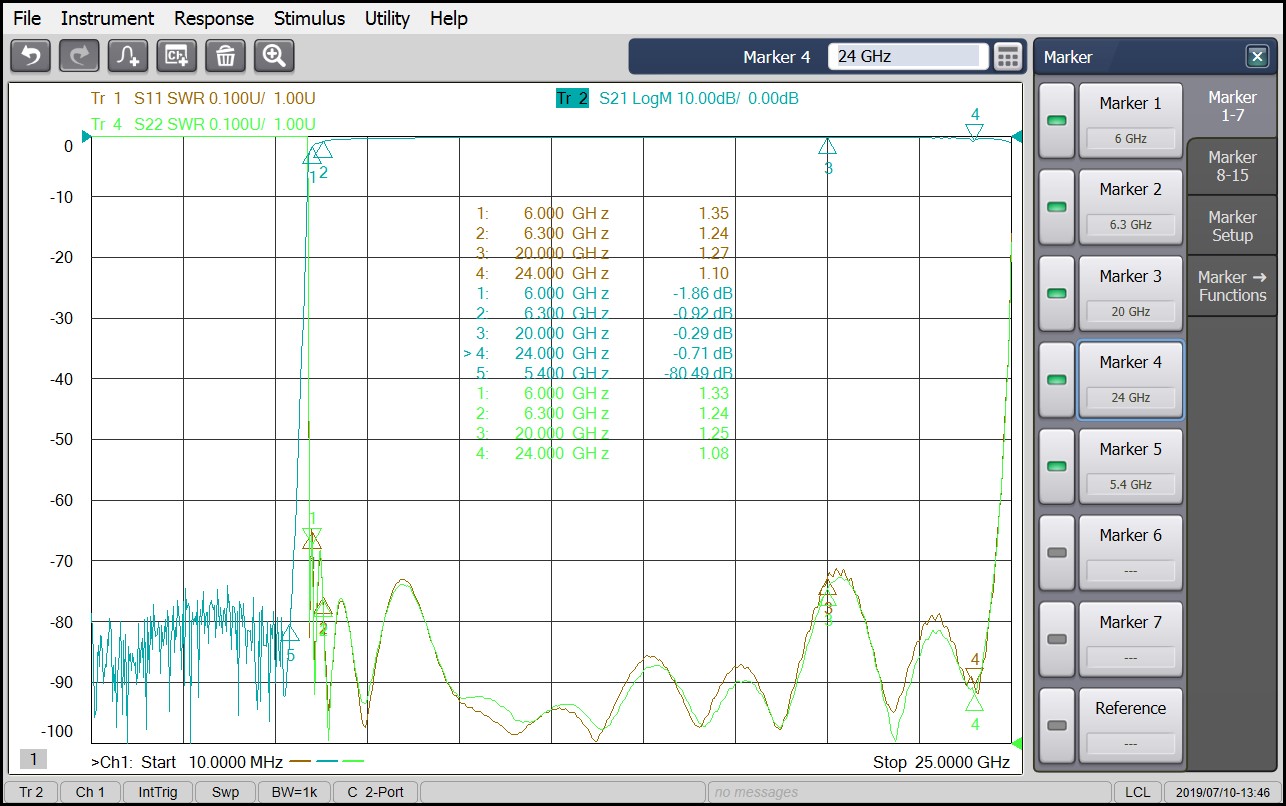

6GHz to 24GHz Microwave Passive High Pass Filter model OHP: 6000-24000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This 6GHz to 24GHz Microwave Passive High Pass Filter Manufactured with a passband frequency from 6GHz to 24GHz and a Cut-off frequency 6GHz. Our High Pass Microwave Cavity Filter provides a nominal insertion loss of ≤2.0dB @ 6GHz to 6.3GHz | ≤1.0dB @ 6.3GHz to 24GHz across its passband and a typical rejection of ≥60dB @ DC to 5.4GHz. Since the high end cutoff frequency of 6GHz to 24GHz Microwave Passive High Pass Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This High Pass Microwave Cavity Filter has Passband VSWR of ≤1.5:1 @ 6GHz to 20GHz ≤1.8:1 @ 20GHz to 24GHz and power handling of ≤15W. 6GHz to 24GHz Microwave Passive High Pass Filter is manufactured with SMA Female Connector and Net weight of 0.025Kg. 6GHz to 24GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 6GHz to 24GHz Microwave Passive High Pass Filter is ready for shipping worldwide after purchase. Additional specs of this High Pass Microwave Cavity Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.
- Description
- Additional information
- Reviews (0)
Description
RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.
High Pass Filter (OHP) – OHP-6000-24000:
- Cut Off Frequency: 6GHz,
- Pass Band Frequency: 6-24GHz,
- Pass Band Insertion Loss: 2.0dB,
- Pass Band VSWR: 1.8,
- Rejection: ≥60 dB @ DC-5.4 GHz.

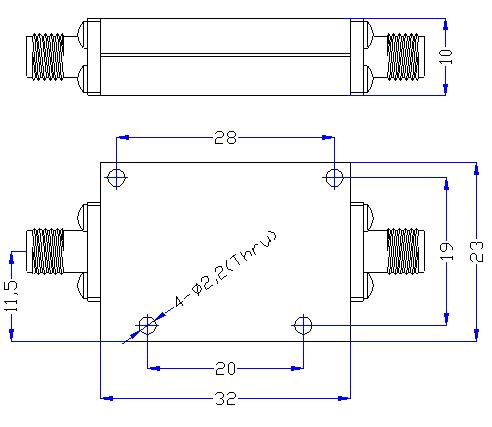

Additional information
Weight | 0.025 kg |
---|---|
Min. Pass Band Frequency (GHz) | |
Max. Pass Band Frequency (GHz) | |
Connection Type | |
Power Handling (W) | |
Insertion Loss | |
VSWR | ≤1.5:1 @ 5.0~20GHz ≤1.8:1 @ 20~24GHz |
Rejection | |
Impedance (Ω) | |
Surface Finish |
