6-18GHz 100W Ultra-Wideband Solid-State Power Amplifier
Frequency range: 6-18GHz
Output power: 100W Typ.
Power gain: ≥50dB Typ.
Supply voltage: +28VDC Typ.
Compact size and light weight
Built-in over-temperature and over-current protection
Enable control function for easy system integration
OTY0618P100 Ultra-Wideband Solid-State Power Amplifier also suits electronic countermeasure and jamming systems
This Solid-State Power Amplifier is effective for EMC and test & measurement applications
- Description
- Datasheet

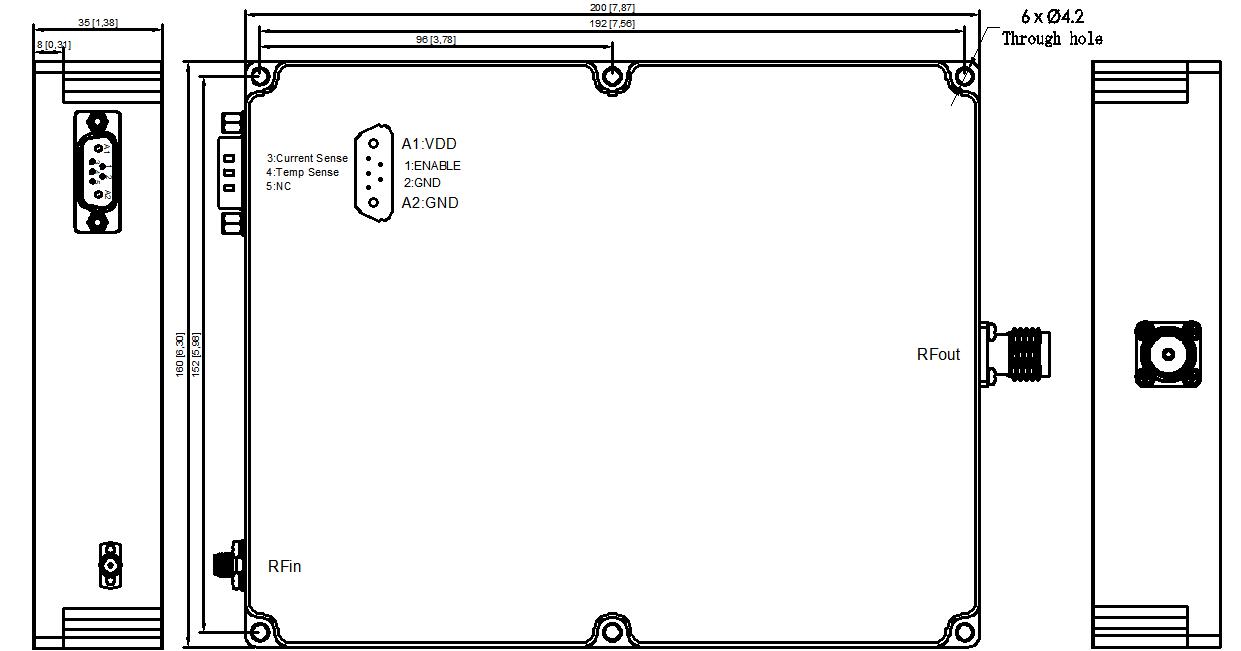

- Outline
- Reviews (0)
Description
Solid-State Power Amplifier Specifications | |
| 6GHz to 18GHz | |
| OTY0618P100 | |
Property | Value |
Electrical Specifications | |
| Frequency Range | 6000 MHz ~ 18000 MHz |
| Saturated Output Power | 100 W (typ.) |
| Power Gain | ≥ 50 dB |
| Gain Flatness | ±1 dB |
| Input Return Loss | ≤ −10 dB |
| Harmonic Suppression (@100 W) | ≤ −15 dBc |
| Spurious Suppression (@PSAT) | ≤ −60 dBc |
| Input/Output Impedance | 50 Ω |
Physical & Environmental | |
| Dimensions | 200 mm × 160 mm × 35 mm |
| Weight | ≤ 1.5 kg |
| Operating Temperature | −20 °C ~ +50 °C |
| Storage Temperature | −25 °C ~ +65 °C |
Absolute Maximum Ratings | |
| Input RF Drive Level (without damage) | +10 dBm (max.) |
| Load VSWR (POUT = 100 W) | 5:1 (all load phases and amplitudes continuous) |
| Thermal Overload | 85 °C ±5 °C shutdown (max.) |
Power Supply & Consumption | |
| Supply Voltage | +28 V DC |
| Quiescent Current | typ. 9 A |
| Dynamic Current (@100 W output) | typ. 20 A |
| Max. Power Consumption | approx. 560 W (typ., +28 V DC × 20 A) |
Interface Definition | |
| X1 — RF IN | SMA-K (Female) / RF Input |
| X2 — RF OUT | N-K (Female) / RF Output |
| X3 — DC/Control | D-Sub 7W2 (Male, Mixed Contact) / Power Supply & Control |
X3 Interface Pin Assignment | |
| A1 — VDD | +28 V Power Input / Power Positive Terminal |
| A2 — GND | Power Ground / Ground |
| 1 — ENABLE | Amplifier Enable / TTL logic high (+3.3 V) enables; internally pulled low (disabled by default) |
| 2 — GND | Power Ground / Ground |
| 3 — TEMP ALARM | Temperature Alarm / Analog voltage proportional to module temperature, 10 mV/°C, 750 ± 20 mV @ 25 °C (typ.) |
| 4 — CURRENT ALARM | Current Alarm / Analog voltage proportional to IDD, 26 mV/A, 1650 mV @ 0 A (typ.) |
| 5 — NC | Reserved / No Connection (NC) |
Features | |
| Compact size and light weight | |
| Instantaneous ultra-wideband operation (6000 MHz ~ 18000 MHz) | |
| 50 Ω input and output matched | |
| Built-in over-temperature and over-current protection | |
| Enable control function | |
The OTY0618P100 solid-state power amplifier covers 6 GHz to 18 GHz with a saturated output power of 100 W (typ.) and power gain of ≥50 dB into a 50 Ω input/output match, with gain flatness of ±1 dB. It operates from +28 V DC (quiescent typ. 9 A, dynamic typ. 20 A at 100 W output) and includes an enable control input plus built-in protection against over-temperature and over-current, shutting down at 85°C ±5°C. Housed in a compact 200 x 160 x 35 mm, ≤1.5 kg module with SMA-K RF input, N-K RF output and a D-Sub 7W2 power/control connector, it is well suited to jamming, EMC, and test and measurement applications.
