6.425 GHz to 7.125 GHz, 0.33 dB Insertion Loss, 20.0 dB Isolation, SMD Series Circulators Isolator-O-5MM-6425-7125
$0.00
Frequency coverage: 0.05~40GHz
Power capacity: 50W~50KW
Bandwidth options: 10%, 20%, 30%, 40%, multi-octave
Interface form: Microstrip, stripline, coaxial isolator surface mount
Key features: Low loss, wide bandwidth, various form factors
- Description
- Reviews (0)
Description

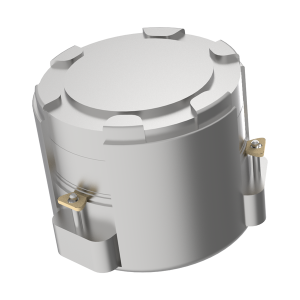

The product named O-5mm-6425-7125 is high-performance stripline surface mount circulator, designed for robust performance in communication systems.
O-5MM-6425-7125 |
|
|
6.425 GHz to 7.125 GHz, 0.33 dB Insertion Loss, 20.0 dB Isolation, SMD Series Circulators Isolator-O-5MM-6425-7125 |
|
Property |
Value |
|
Frequency (MHz) |
6425-7125 |
|
Return Loss (dB) |
20 |
|
Isolation (dB) |
20 |
|
Insertion Loss (dB) |
0.33 |
|
IMD3 (dBc) |
-60 |
|
Power (W) |
20 |
|
Power note |
2*1W |
|
Size |
5mm |
|
Operating Temp ( degC) |
-40 to 125 |
Features |
|
|
Frequency coverage: 0.05~40GHz |
|
|
Power capacity: 50W~50KW |
|
|
Bandwidth options: 10%, 20%, 30%, 40%, multi-octave |
|
|
Interface form: Microstrip, stripline, coaxial isolator surface mount |
|
|
Key features: Low loss, wide bandwidth, various form factors |
|
Applications |
|
|
Designed for robust performance in communication systems. |
|
