6.5 dBi Gain, 110 GHz to 170 GHz, WR-06 Waveguide Probe Antenna

$600

Frequcncy: 110-170GHz
Gain: 6.5dBi.
VSWR: 2:1Typ.
OPRO-06 Waveguide Probe Antenna supports ultra-high bandwidth short-range communication, including crucial developments in 6G research and terahertz wireless networks.
It excels in chemical analysis,high-resolution imaging applications and atmospheric monitoring

SKU: OPRO-06 Categories: Probe Antennas, RF Antenna

Description

Probe Antenna

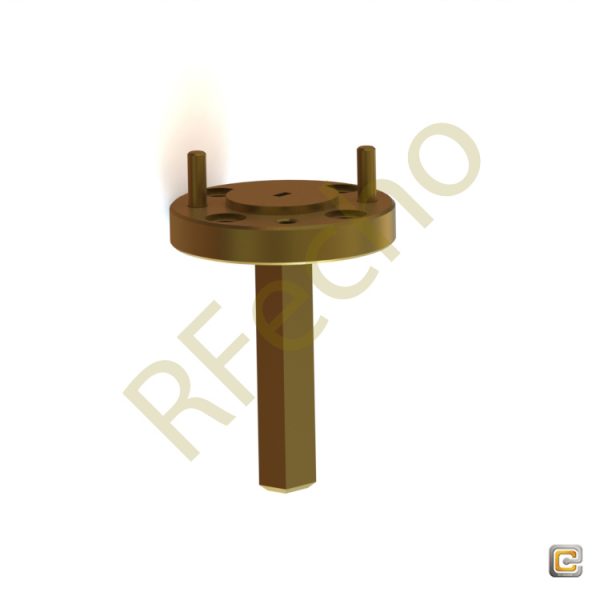

6.5 dBi Gain, 110 GHz to 170 GHz, WR-06 Waveguide Probe Antenna

OPRO-06

The OPRO-06 Band Probe Antenna operates over a broad frequency range from 110 GHz to 170 GHz. With a nominal gain of 6.5 dBi, this probe antenna provides reliable performance with a half-power beamwidth (HPBW) of 115 degrees on the E-plane and 60 degrees on the H-plane. Designed to support linear polarized waveforms, the OPRO-06 features a WR-06 waveguide input, ensuring efficient signal transmission. It also offers excellent sidelobe suppression, with -10 dB on the E-plane and -14 dB on the H-plane, minimizing interference and enhancing signal clarity.

The OPRO-06 is widely used across a range of advanced applications. First and foremost, this design supports ultra-high bandwidth short-range communication, including crucial developments in 6G research and terahertz wireless networks. It is also ideal for high-resolution imaging applications, offering detailed image clarity for security scanning, medical imaging, and non-invasive testing. In spectroscopy and sensing, the antenna excels in chemical analysis and atmospheric monitoring, where precision is vital. Additionally, the OPRO-06 is integral to short-range radar systems, commonly found in automotive sensors, industrial automation, and drone navigation, providing high-accuracy detection capabilities. Lastly, this antenna plays a significant role in scientific research, being frequently used in terahertz research and sub-millimeter wave experiments, contributing to advances in experimental physics and material science.Probe Antenna https://www.rfecho.com/product-category/rf-antenna/probe-antennas/

Property

Value

Min. Frequency (GHz)

110

Max. Frequency (GHz)

170

Gain(dBi)

6.5

Waveguide

WR-06

Polarization

Linear

HPBW 3 dB Beamwidth (E-Plane)

115

HPBW 3 dB Beamwidth (H-Plane)

60

Side Lobes, E-Plane (dB)

-10

Side Lobes, H-Plane (dB)

-14

VSWR

2:1

Band Type

D Band

Features

Circular Waveguide Interface

Precisely Machined and Gold Plated

High Return Loss

Linear Polarization

Applications

Antenna Ranges

Feed Horns

System Setups

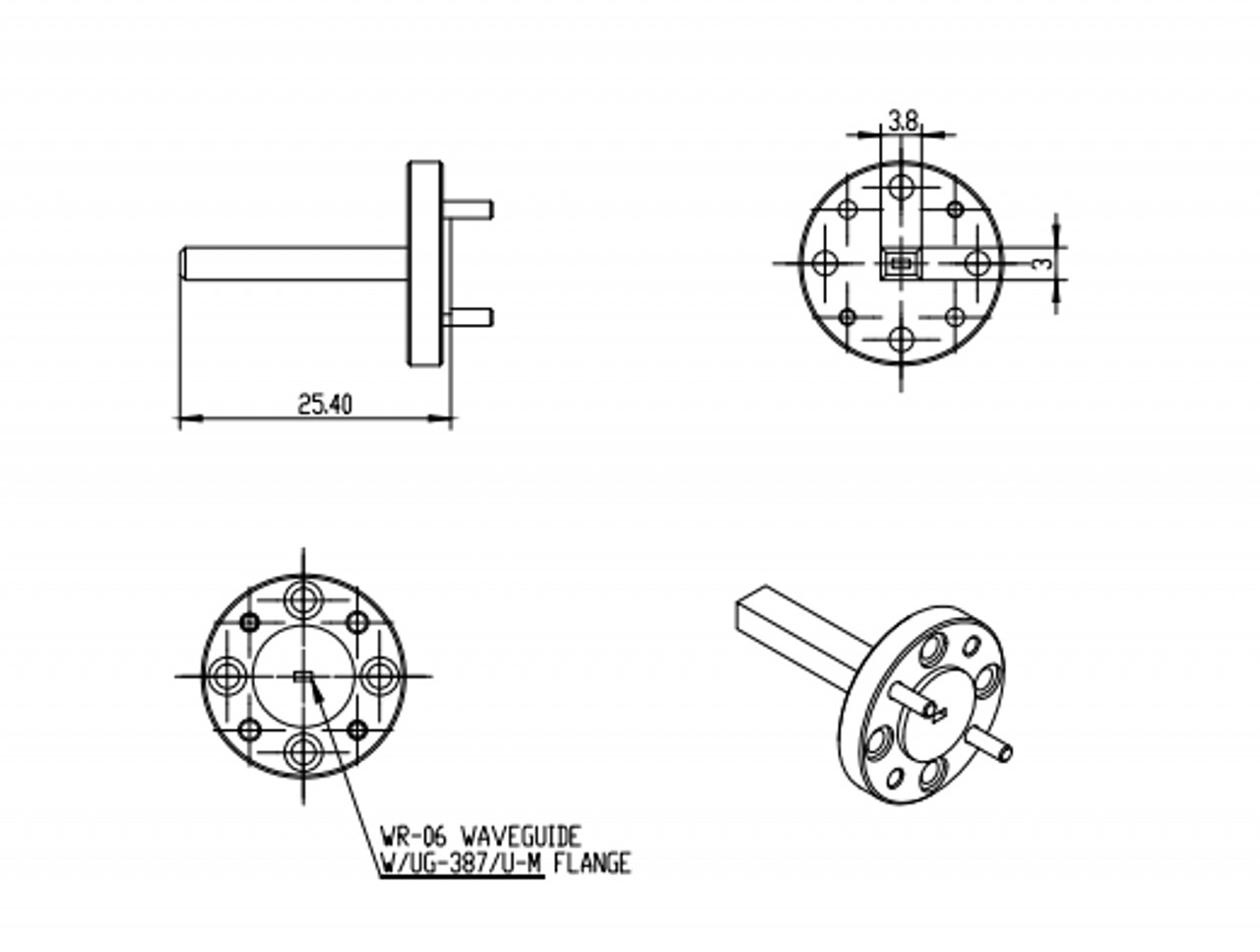

6.5 dBi Gain, 110 GHz to 170 GHz, WR-06 Waveguide Probe Antenna-Outline

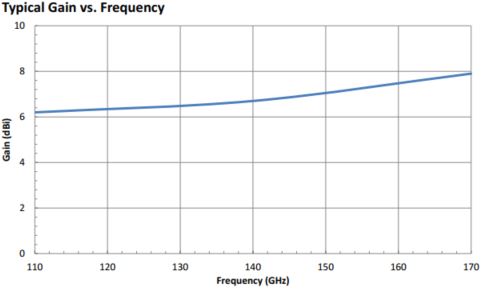

6.5 dBi Gain, 110 GHz to 170 GHz, WR-06 Waveguide Probe Antenna-Plot

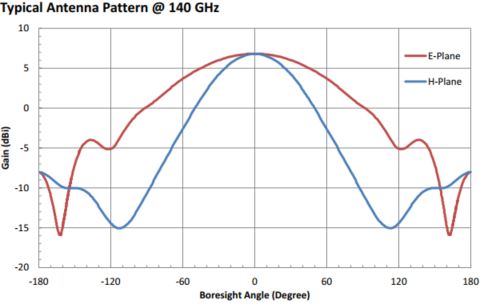

6.5 dBi Gain, 110 GHz to 170 GHz, WR-06 Waveguide Probe Antenna-Plot

Additional information

Weight 1 kg
Dimensions 26 × 11.5 × 14.5 cm
Min. Frequency (GHz)

110

Max. Frequency (GHz)

170

Gain (dBi)

6.5

VSWR

2:01

HPBW 3 dB Beamwidth (E-Plane)

115

HPBW 3 dB Beamwidth (H-Plane)

60

Waveguide

WR-06

Polarization

Linear

Band Type

D Band

Side Lobes, E-Plane (dB)

-10

Side Lobes, H-Plane (dB)

-14
