6.5 GHz to 24 GHz Rejection ≥60 dB @ DC-5.83 GHz High Pass Cavity Filter

6.5 GHz to 24 GHz Rejection ≥60 dB @ DC-5.83 GHz High Pass Cavity Filter

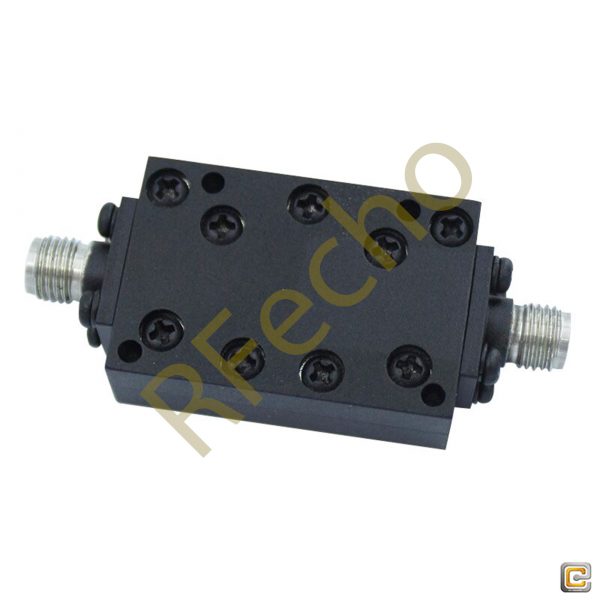

OHP-6500-24000:

  • Cut Off Frequency: 6.5GHz,
  • Pass Band Frequency: 6.5-24GHz,
  • Pass Band Insertion Loss: 2.0dB,
  • Pass Band VSWR: 1.8,
  • Rejection: ≥60 dB @ DC-5.83 GHz.
SKU: OHP-6500-24000 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Filter (OHP) – OHP-6500-24000:

  • Cut Off Frequency: 6.5GHz,
  • Pass Band Frequency: 6.5-24GHz,
  • Pass Band Insertion Loss: 2.0dB,
  • Pass Band VSWR: 1.8,
  • Rejection: ≥60 dB @ DC-5.83 GHz.

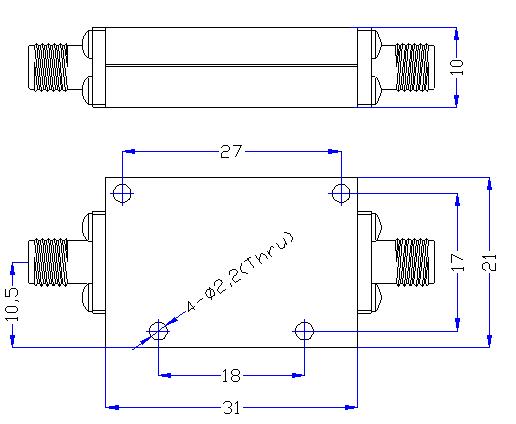

Outline

6.5 GHz to 24 GHz Rejection ≥60 dB @ DC-5.83 GHz High Pass Cavity Filter 01

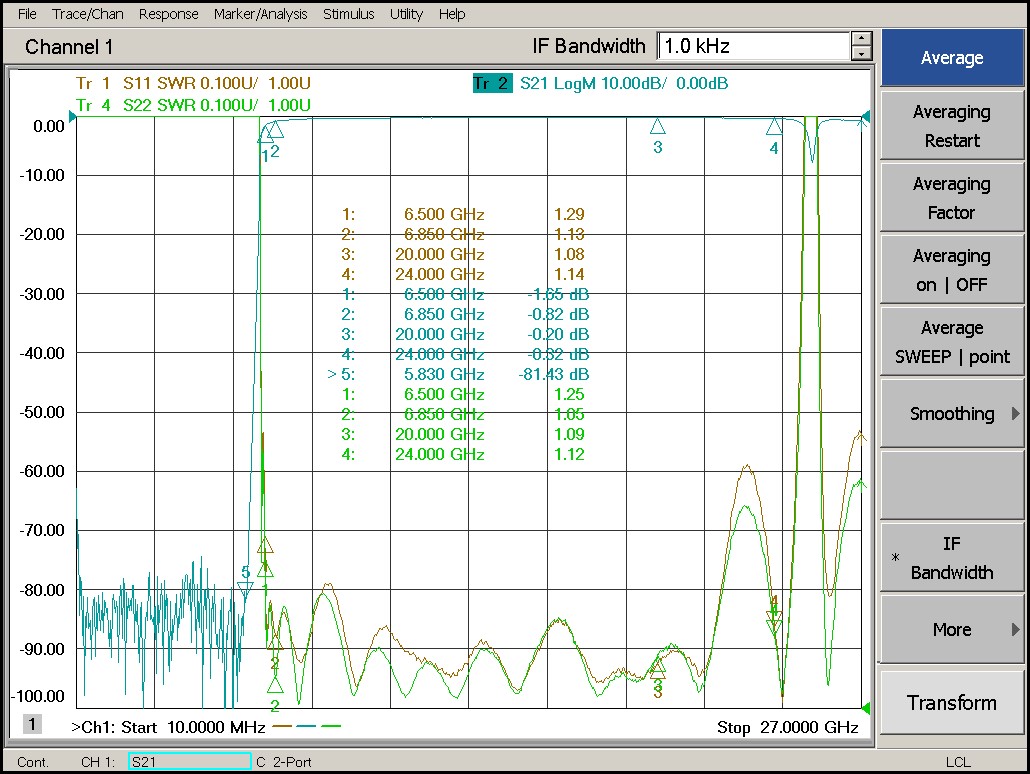

Plot

6.5 GHz to 24 GHz Rejection ≥60 dB @ DC-5.83 GHz High Pass Cavity Filter 02

PDF

Additional information

Weight 0.02 kg
Min. Pass Band Frequency (GHz)

6.5

Max. Pass Band Frequency (GHz)

24

Connection Type

SMA-Female

Power Handling (W)

≤15

Insertion Loss

≤2.0dB @ 6.5~6.85GHz ≤1.0dB @ 6.85 ~24GHz

VSWR

≤1.5:1 @ 6.5~20GHz ≤1.8:1 @ 20~24GHz

Rejection

≥60 dB @ DC-5.83 GHz

Impedance (Ω)

50

Surface Finish

Guide Oxygen or Black Paint
