6.8 GHz to 7.0 GHz, 1.3 dB Insertion Loss, 18.0 dB Isolation, Micro-Strip Series Circulators OH5A054-6.8-7.5
Small size
Lightweight
High product consistency
High reliability
Customizable
Aviation and aerospace applications
Radar and electronic warfare
Microwave communication
Microwave test fields
- Description
- Datasheet

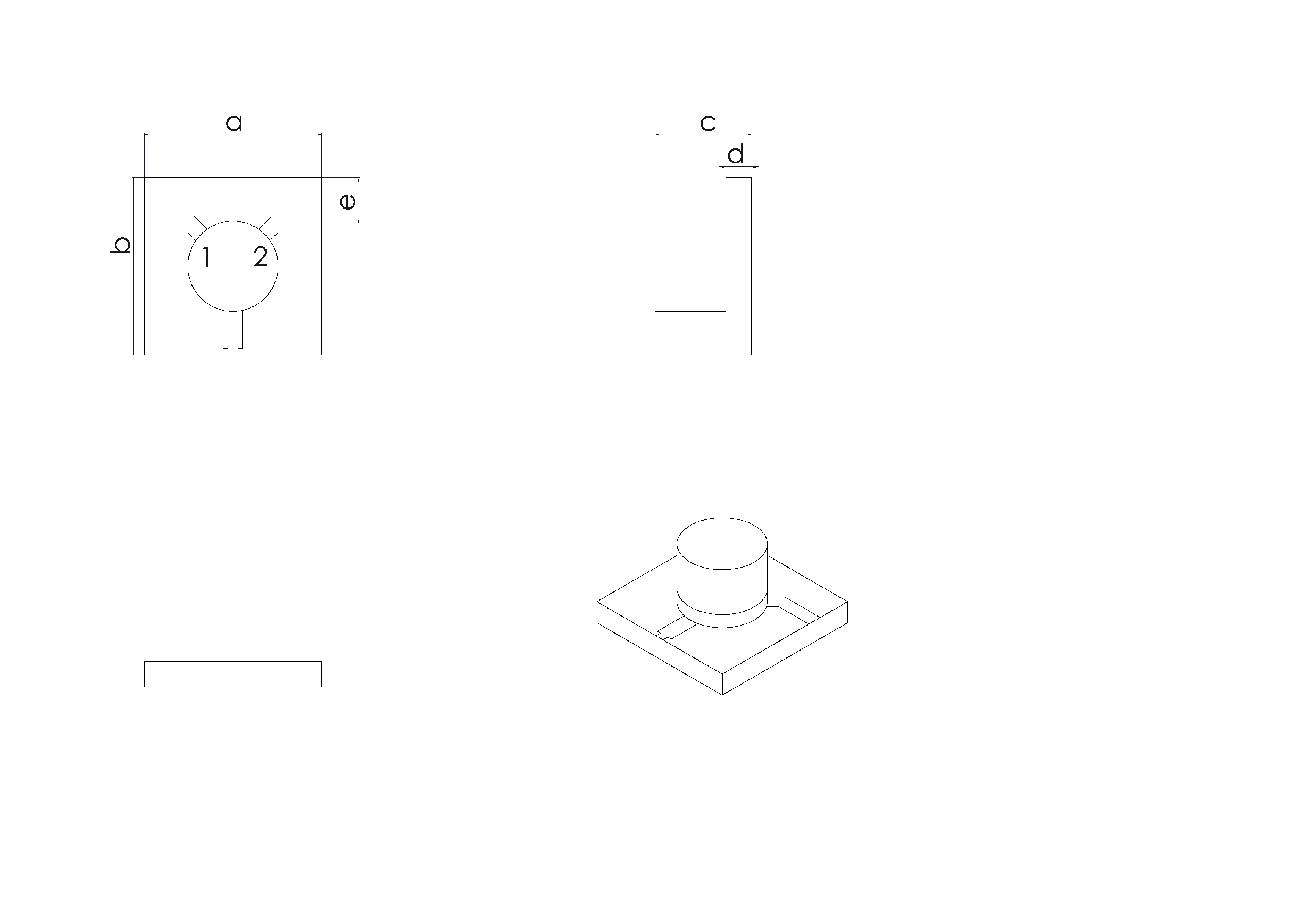

- Outline
- Reviews (0)
Description
The product named OH5A054 is high-performance microstrip circulator used for impedance matching and decoupling in integrated circuits, providing unidirectional transmission and signal processing functions. They have a simple production process suitable for microstrip hybrid integrated circuits.
OH5A054-6.8-7.5 | |
| 6.8 GHz to 7.0 GHz, 1.3 dB Insertion Loss, 18.0 dB Isolation, Micro-Strip Series Circulators OH5A054-6.8-7.5 | |
Property | Value |
| Frequency (MHz) | 6.8-7 |
| Return Loss (dB) | 5 |
| Isolation (dB) | 18 |
| Insertion Loss (dB) | 1.3 |
| IMD3 (dBc) | 10 |
| Power (W) | 10 |
| Operating Temp ( degC) | 6.0 to 6.0 |
Features | |
| Small size | |
| Lightweight | |
| High product consistency | |
| High reliability | |
| Customizable | |
| Aviation and aerospace applications | |
| Radar and electronic warfare | |
| Microwave communication | |
| Microwave test fields | |
Applications | |
| This circulator for microstrip patch antenna is customizable and suitable for aviation, aerospace, radar, electronic countermeasures, microwave communications, and microwave testing fields. | |
