65 GHz, 1.85mm Male to 1.85mm Female, IN Adapters

-20%

65 GHz, 1.85mm Male to 1.85mm Female, IN Adapters

$118

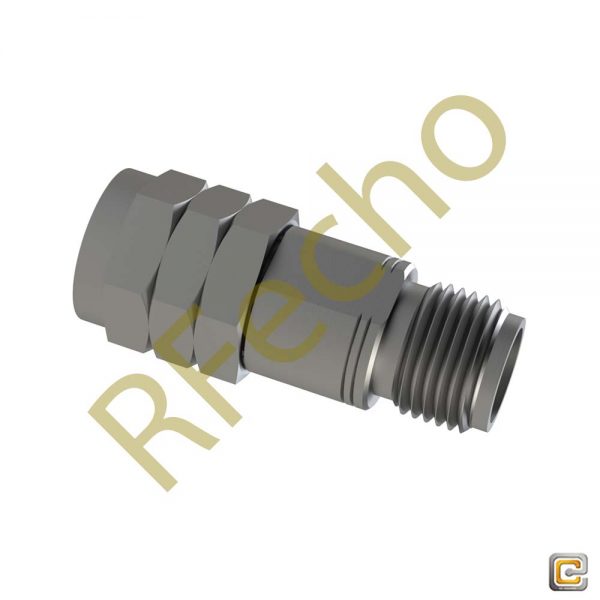

This model OA383810Z01 is 1.85mm Male Straight to 1.85mm Female Straight. This series 1.85mm Male Straight to 1.85mm Female Straight have the operating frequency of 65 GHz. Adapters that have a male to female or plug to jack configuration are known as connector savers.

Between Series Adapters are the passive components which are used to transfer signals from one coaxial connector interface to another with minimal losses. Between adapters have different connector configurations on either side of the adapter.

SKU: OA383810Z01 Categories: Adapters and Connectors, IN Series Adapters, RF Adapters

Description

PDF

Additional information

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

65

VSWR (Max.)

1.25:1

Conector 1

1.85mm

Gender 1

Male

Connector 1 Body Style

Straight

Conector 2

1.85mm

Gender 2

Female

Connector 2 Body Style

Straight

Durability (Cycle)

500

Impedance (Ω)

50
