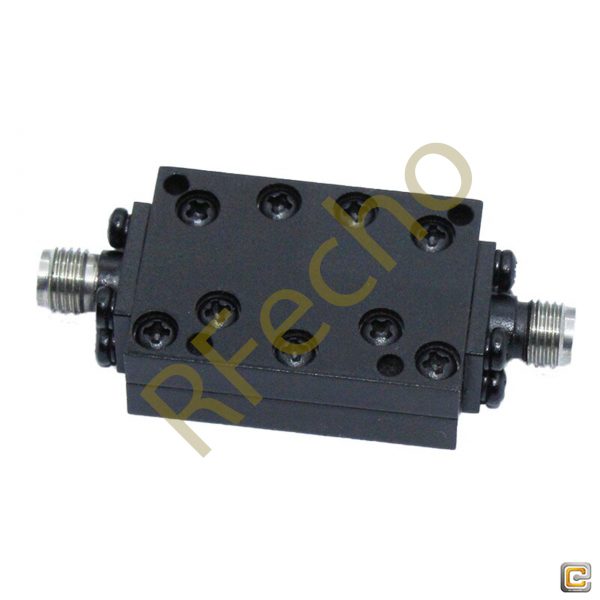

Cavity High pass Filter 7.0GHz to 24GHz High pass Filter rejection ≥ 60dB DC~6.3GHz with SMA Female Connector

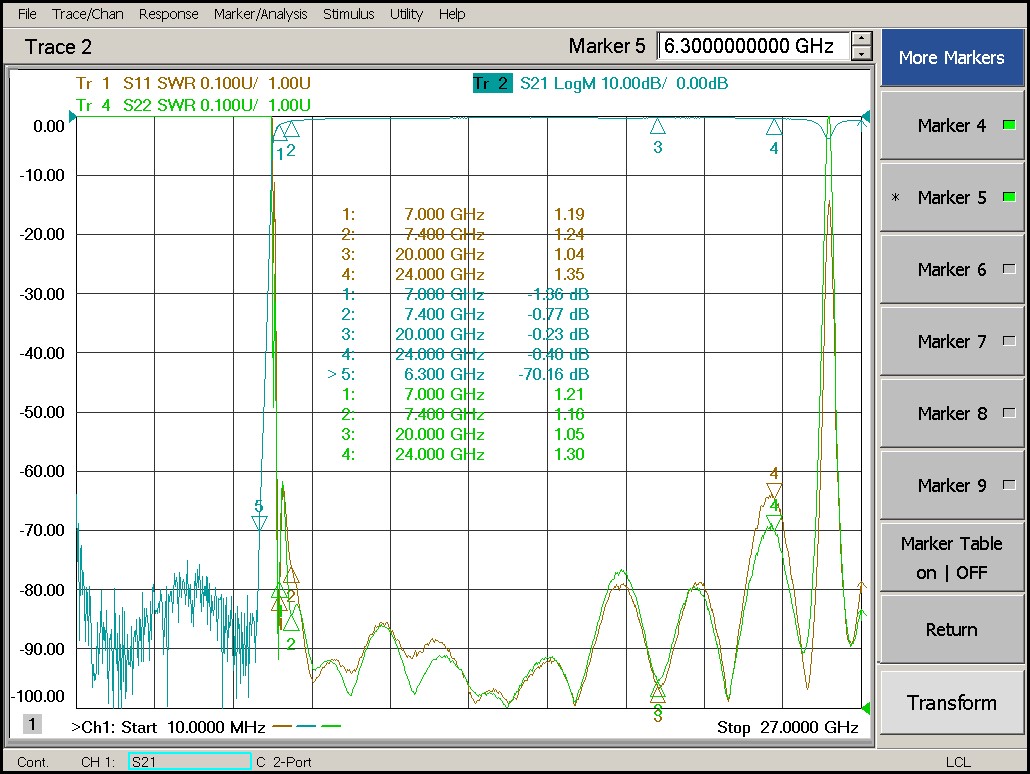

Cavity High Pass Filter model OHP: 7000-24000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This Cavity High Pass Filter Manufactured with a passband frequency from 7.0GHz to 28GHz and a Cut-off frequency 7.0GHz. Our High Pass Filter provides a nominal insertion loss of ≤2.0dB @ 7GHz – 7.4GHz | ≤ 1.0dB @ 7.4GHz – 24GHz across its passband and a typical rejection of ≥60dB @DC – 6.3GHz. Since the high end cutoff frequency of Cavity High Pass Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This High Pass Filter has Passband VSWR of ≤1.5:1 @ 7.0GHz – 20GHz | ≤1.8:1 @ 20GHz – 24GHz and power handling of ≤15W. Cavity High Pass Filter is manufactured with SMA Female Connector and Net weight of 0.02Kg.
7.0GHz to 24GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 7.0GHz to 24GHz Cavity High Pass Filter is ready for shipping worldwide after purchase. Additional specs of this High Pass Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.
- Description
- Additional information
- Reviews (0)
Description
RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. More Cavity Filters…

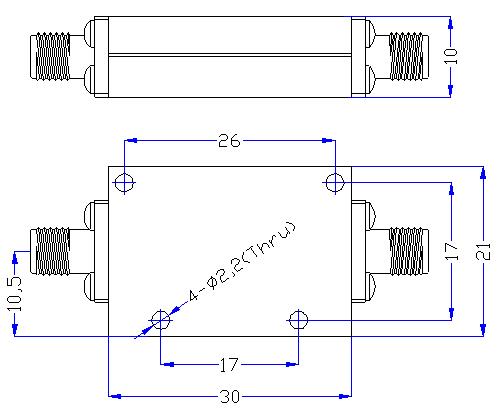

High Pass Filter (OHP) – OHP-7000-24000:
- Cut Off Frequency: 7.0GHz,
- Pass Band Frequency: 7.0-24GHz,
- Pass Band Insertion Loss: 2.0dB,
- Pass Band VSWR: 1.8,
- Rejection: ≥60 dB @ DC-6.3 GHz.
Additional information
Weight | 0.02 kg |
---|---|
Min. Pass Band Frequency (GHz) | |
Max. Pass Band Frequency (GHz) | |
Connection Type | |
Power Handling (W) | |
Insertion Loss | |
VSWR | ≤1.5:1 @ 7.0 ~20GHz ≤1.8:1 @ 20~24GHz |
Rejection | |
Impedance (Ω) | |
Surface Finish |
