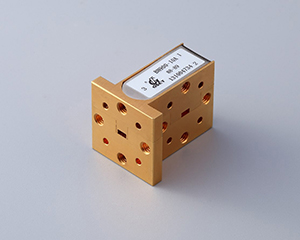

73.8 GHz to 112 GHz, 1 dB Insertion Loss, 18 dB Isolation, Waveguide Series Isolator-BH900-10A
Waveguide Series isolator with 73.8-112 GHz frequency range, 1 dB insertion loss, 18 dB isolation
- Description
- Datasheet
- Reviews (0)
Description
The BH900-10A is a high-performance waveguide series designed for RF and microwave applications. It operates in the frequency range of 73.8-112 GHz with 1 dB maximum insertion loss and 18 dB minimum isolation.
BH900-10A | |
| 73.8 GHz to 112 GHz, 1 dB Insertion Loss, 18 dB Isolation, Waveguide Series Isolator-BH900-10A | |
Property | Value |
| Frequency (GHz) | 73.8-112 |
| Bandwidth | 2% |
| Return Loss (dB) |
|
| Isolation (dB) | 18 |
| Insertion Loss (dB) | 1 |
| VSWR | 1.3 |
| IMD3 (dBc) |
|
| Power (W) | – |
| Reverse Power (W) |
|
| Peak Power |
|
| Power note |
|
| Connector | WR10 |
| Impedance(Ohm) | 50 |
| Size |
|
| Operating Temp (degC) | -40 to 85 |
| Structure | connectorized |
Features | |
| Frequency Range: 73.8-112 GHz | |
| Insertion Loss: 1 dB Max | |
| Isolation: 18 dB Min | |
| VSWR: 1.3 Max | |
| Power: – W | |
Applications | |
| Wireless communication, Radar systems, Test and measurement equipment | |
