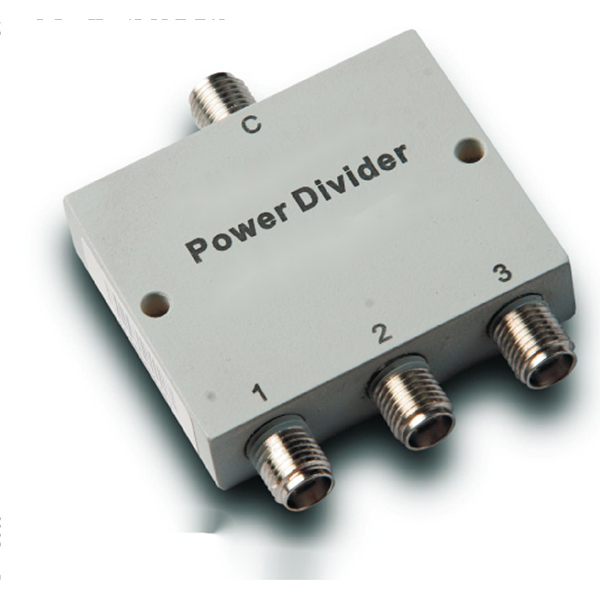

8-18GHz Insertion Loss 1.20dB SMA Connector 0° Power Divider
SMA connector 0 degree power divider
Full series coverage 0.5-18GHz
Small size
Low loss
Low VSWR
High isolation
High product consistency with batch production control
- Description
- Datasheet

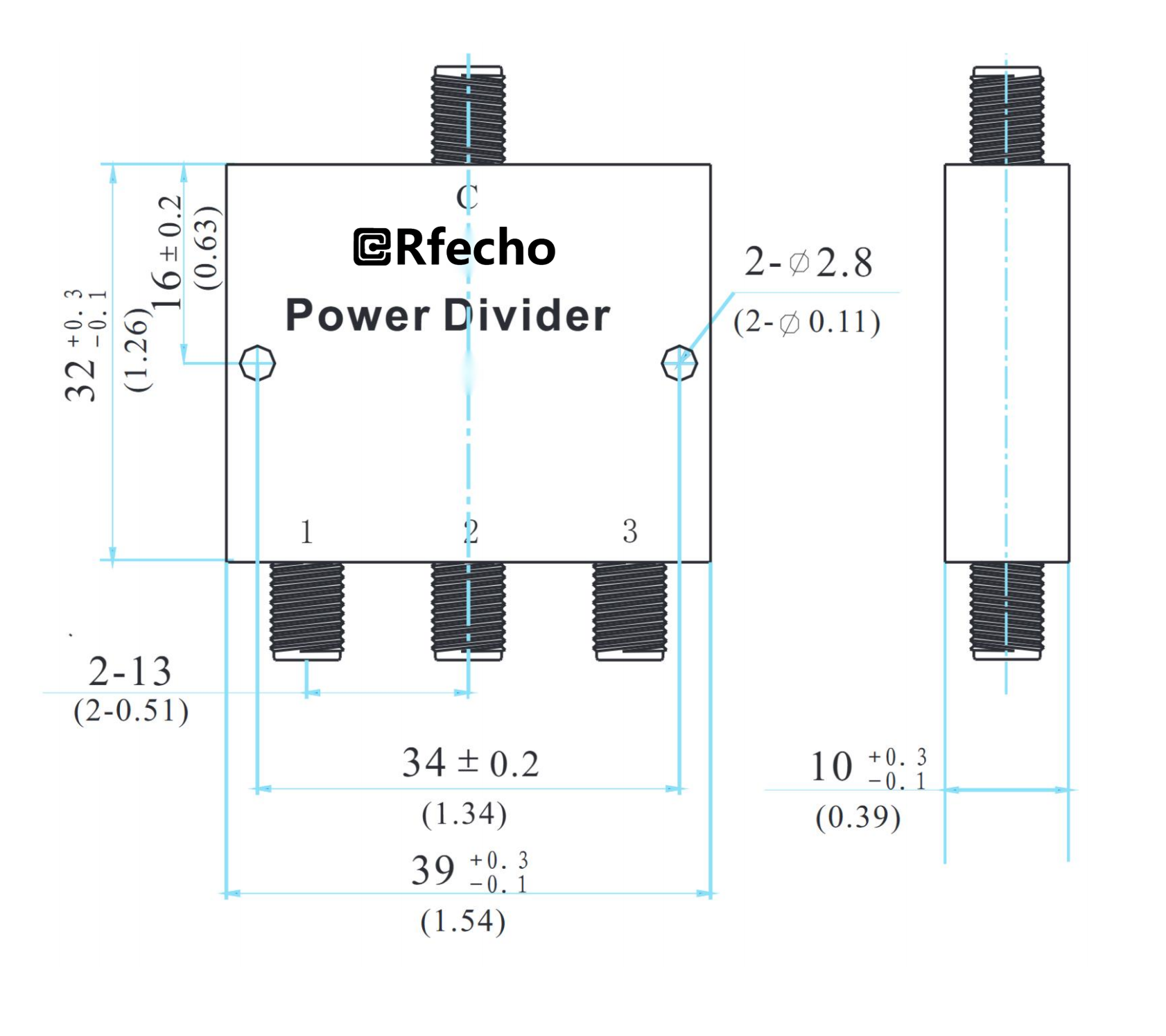

- Outline
- Reviews (0)
Description
The A-Series power dividers are SMA connector 0° powerdividers, with the full series covering 0.5-18GHz. They feature small size, low loss, low VSWR, and high isolation. Thisseries utilizes batch production control methods, ensuringrelatively high product consistency and the ability to meetlarge-volume delivery requirements. The OPD-A0334 is primarily used in electronic warfare, radar, test and measure-ment, and satellite communication systems for microwavesignal distribution and combination. This series consists ofstandardized products that can be customized accordingto user needs, with other spectrum and standard productsavailable for selection.
OPD-A0334 |
|
|
8-18GHz Insertion Loss 1.20dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
8-18GHz |
|
Insertion Loss |
1.20dB |
|
Isolation |
18dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±0.60dB |
|
Phase Balance |
– |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.6 |
|
Output VSWR |
1.5 |
|
Compliance |
Meets ‘GJB-1509-1992’ test items and requirements |
Features |
|
|
SMA connector 0 degree power divider |
|
|
Full series coverage 0.5-18GHz |
|
|
Small size |
|
|
Low loss |
|
|
Low VSWR |
|
|
High isolation |
|
|
High product consistency with batch production control |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
