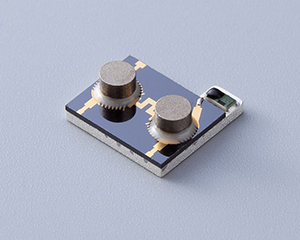

8 GHz to 12 GHz, 0.6 dB Insertion Loss, 16 dB Isolation, GWB Micro-strip Series Isolator-WH902AS10
Micro-strip Series isolator with 8-12 GHz frequency range, 0.6 dB insertion loss, 16 dB isolation
- Description
- Datasheet
- Reviews (0)
Description
The WH902AS10 is a high-performance micro-strip series designed for RF and microwave applications. It operates in the frequency range of 8-12 GHz with 0.6 dB maximum insertion loss and 16 dB minimum isolation.
WH902AS10 | |
| 8 GHz to 12 GHz, 0.6 dB Insertion Loss, 16 dB Isolation, GWB Micro-strip Series Isolator-WH902AS10 | |
Property | Value |
| Frequency (GHz) | 8-12 |
| Bandwidth | 5% |
| Return Loss (dB) |
|
| Isolation (dB) | 16 |
| Insertion Loss (dB) | 0.6 |
| VSWR | 1.3 |
| IMD3 (dBc) |
|
| Power (W) | 20 |
| Reverse Power (W) |
|
| Peak Power |
|
| Power note |
|
| Connector | GWB |
| Impedance(Ohm) | 50 |
| Size |
|
| Operating Temp (degC) | -40 to 85 |
| Structure | surface-mount |
Features | |
| Frequency Range: 8-12 GHz | |
| Insertion Loss: 0.6 dB Max | |
| Isolation: 16 dB Min | |
| VSWR: 1.3 Max | |
| Power: 20 W | |
Applications | |
| Wireless communication, Radar systems, Test and measurement equipment | |
