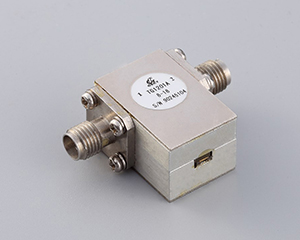

8 GHz to 18 GHz, 0.8 dB Insertion Loss, 17 dB Isolation, SMA Coaxial Series Isolator-TG1201A
$0
Coaxial Series isolator with 8-18 GHz frequency range, 0.8 dB insertion loss, 17 dB isolation
- Description
- Reviews (0)
Description
The TG1201A is a high-performance coaxial series designed for RF and microwave applications. It operates in the frequency range of 8-18 GHz with 0.8 dB maximum insertion loss and 17 dB minimum isolation.
TG1201A |
|
|
8 GHz to 18 GHz, 0.8 dB Insertion Loss, 17 dB Isolation, SMA Coaxial Series Isolator-TG1201A |
|
Property |
Value |
|
Frequency (GHz) |
8-18 |
|
Bandwidth |
10% |
|
Return Loss (dB) |
|
|
Isolation (dB) |
17 |
|
Insertion Loss (dB) |
0.8 |
|
VSWR |
1.4 |
|
IMD3 (dBc) |
|
|
Power (W) |
5 |
|
Reverse Power (W) |
|
|
Peak Power |
|
|
Power note |
|
|
Connector |
SMA |
|
Impedance(Ohm) |
50 |
|
Size |
|
|
Operating Temp (degC) |
-40 to 85 |
|
Structure |
connectorized |
Features |
|
|
Frequency Range: 8-18 GHz |
|
|
Insertion Loss: 0.8 dB Max |
|
|
Isolation: 17 dB Min |
|
|
VSWR: 1.4 Max |
|
|
Power: 5 W |
|
Applications |
|
|
Wireless communication, Radar systems, Test and measurement equipment |
|
