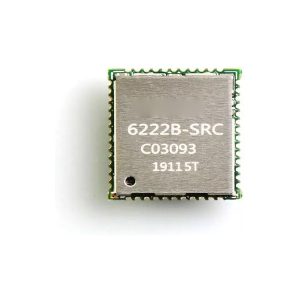

866Mbps SDIO3.0/Uart Wi-Fi 5 Module 6222B-SRC
Main chipset: RTL8822CS-VS-CG
Wi-Fi standard: a/b/g/n/ac
Interface (Wi-Fi/BT): SDIO3.0/Uart
Throughput: 866Mbps
Dimension: 13.0 × 15.0 mm
Compact surface-mount module for embedded integration
866Mbps Wi-Fi 5 module 6222B-SRC supports Wi-Fi 5 connectivity for IoT, smart home and embedded designs.
This Wi-Fi 5 module is available from RFecho with datasheet and quote.
- Description
- Datasheet

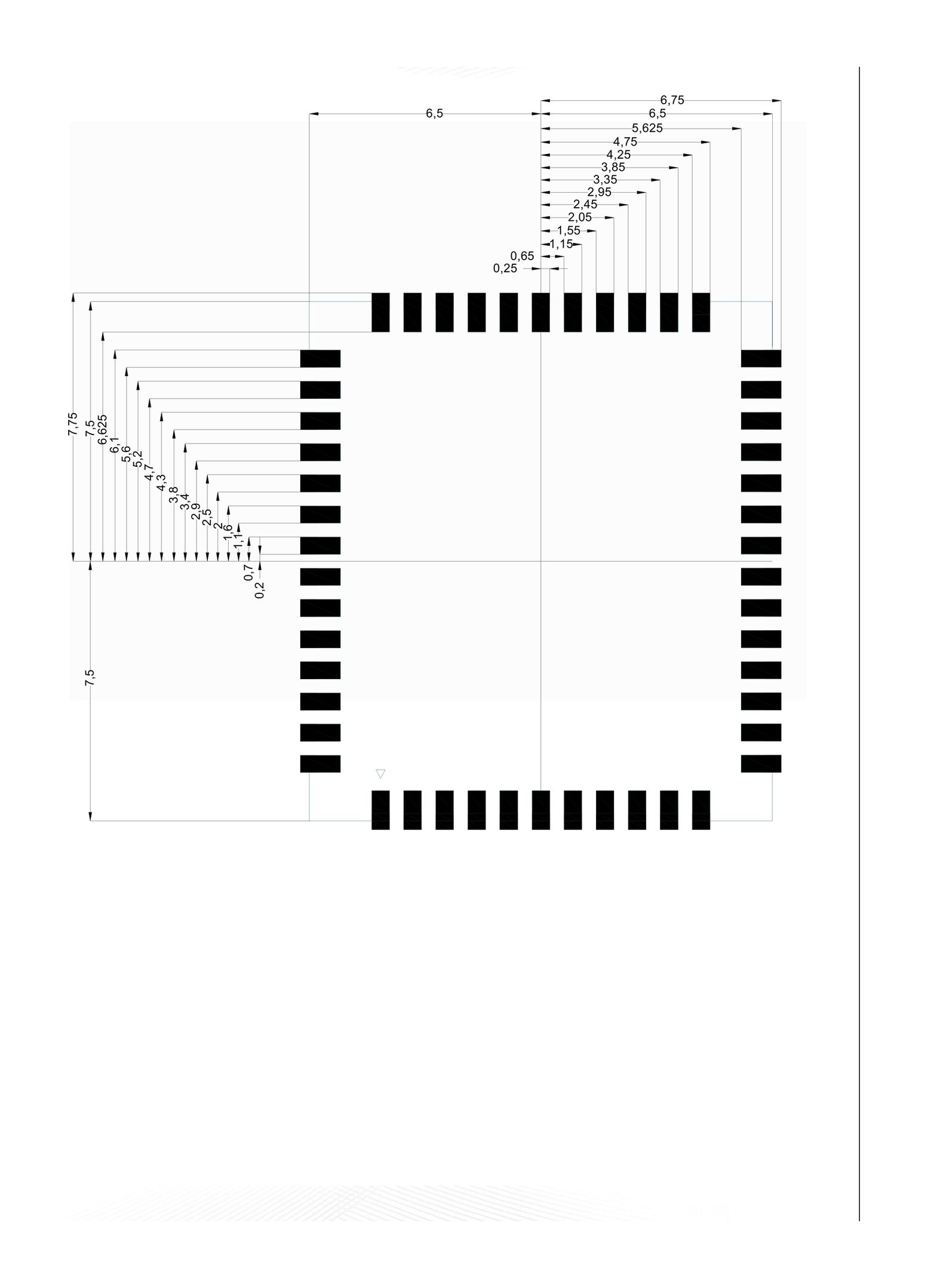

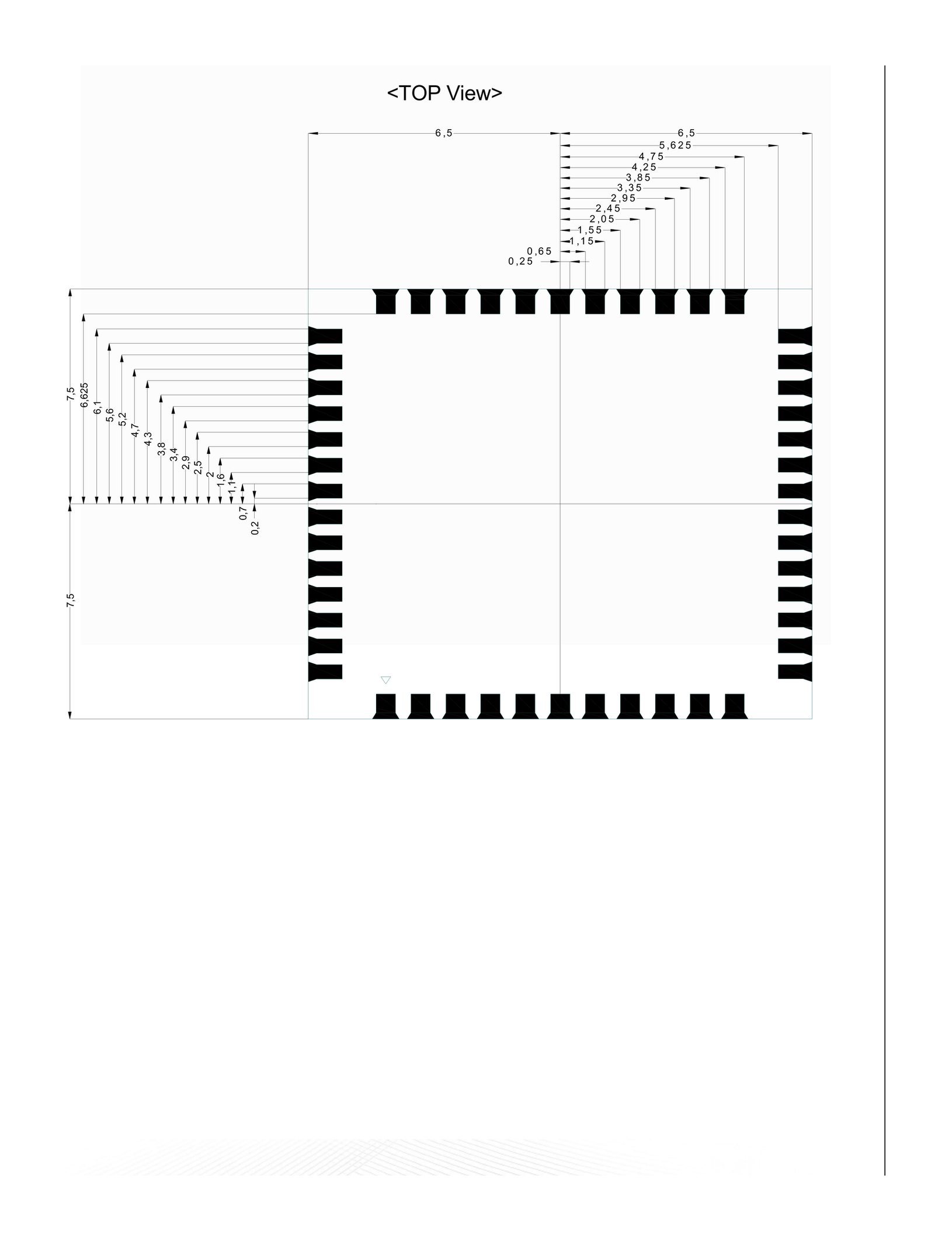

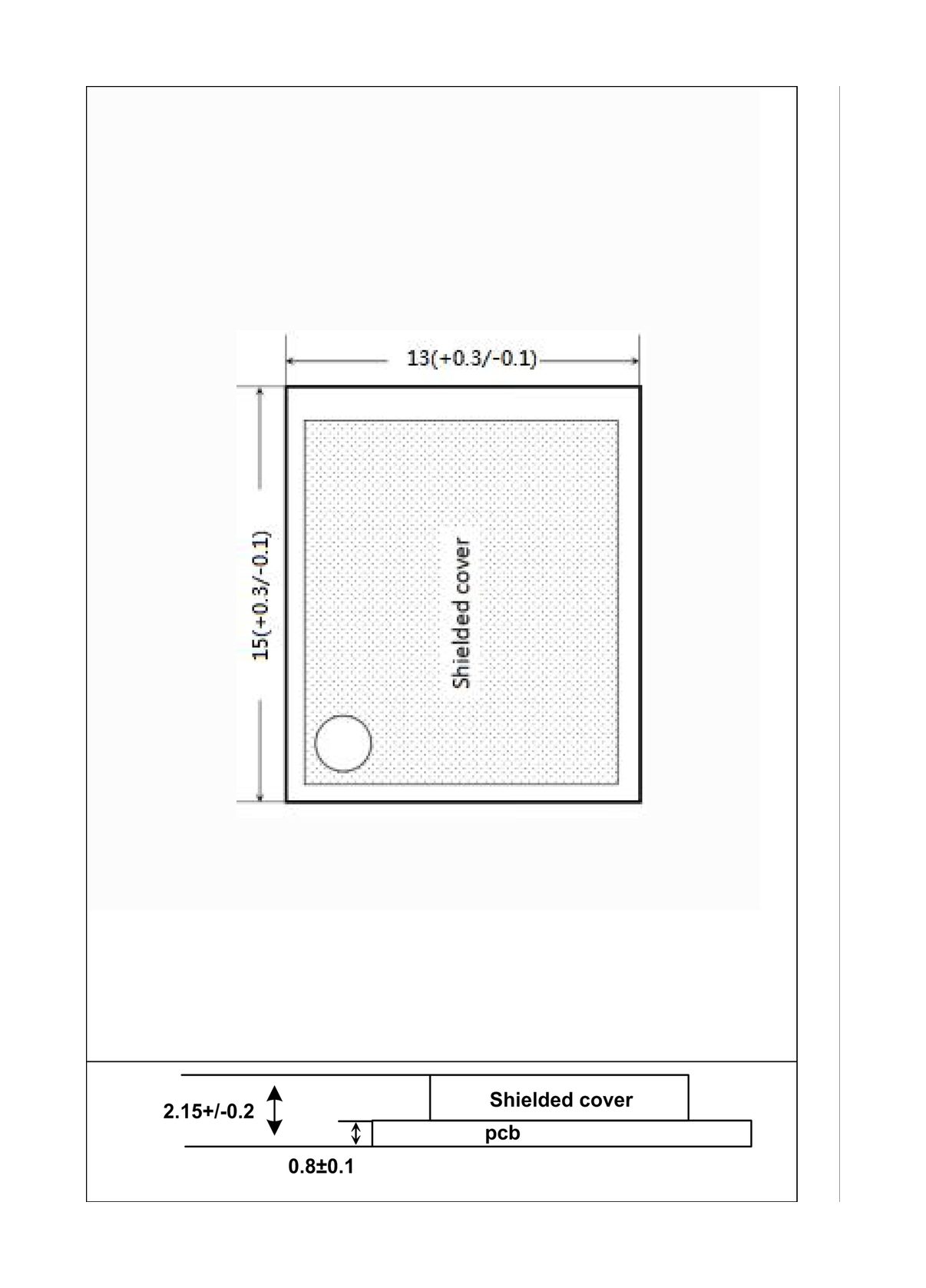

- Outline
- Reviews (0)
Description
Wi-Fi 5 Module Specifications | |
| a/b/g/n/ac, 866Mbps | |
| 6222B-SRC | |
Property | Value |
| Main Chipset | RTL8822CS-VS-CG |
| Wi-Fi Standard | a/b/g/n/ac |
| Interface Wi-Fi/BT | SDIO3.0/Uart |
| Throughput | 866Mbps |
| Dimension (mm) | 13.0 × 15.0 |
The 6222B-SRC is a Wi-Fi 5 (a/b/g/n/ac) module built on the RTL8822CS-VS-CG chipset. It delivers up to 866Mbps over a SDIO3.0/Uart host interface. The module measures 13.0 × 15.0 mm, suiting space-constrained embedded designs.
