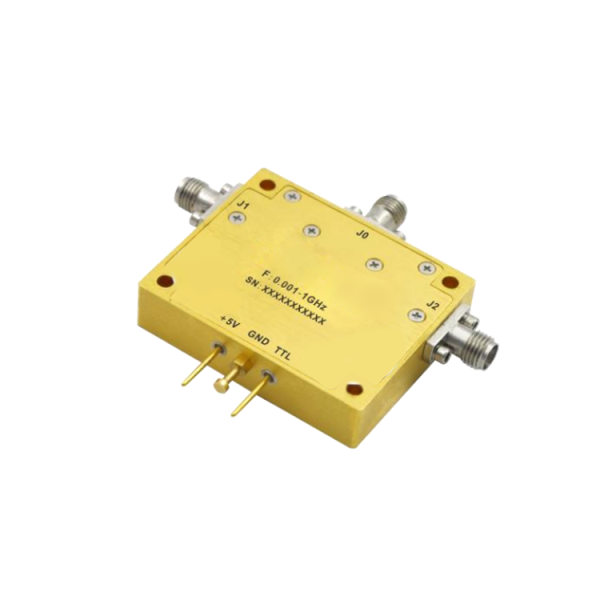

Absorptive Coaxial SP2T Switch from 0.001GHz to 1GHz .OSR0200000100C

HOT

Absorptive Coaxial SP2T Switch from 0.001GHz to 1GHz .OSR0200000100C

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 0.001GHz to 1GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSR0200000100C Categories: Active Device, Routing, SP2T, Switch

Description



PDF

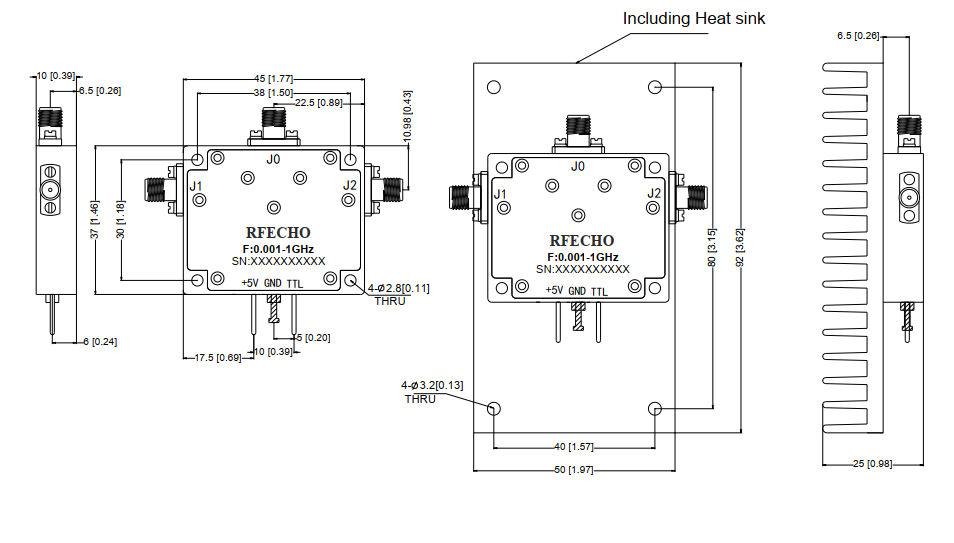

Outline

text





Additional information

Min. Frequency (GHz)

0.001

Max. Frequency (GHz)

1

VSWR (Max.)

1.5

Switch Type

SP2T

RF Input Power (W)

5

Insertion Loss (dB)

1.5
