Absorptive Coaxial SP2T Switch from 0.1GHz to 0.25GHz .OSR0200100025A

HOT

Absorptive Coaxial SP2T Switch from 0.1GHz to 0.25GHz .OSR0200100025A

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 0.1GHz to 0.25GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSR0200100025A Categories: Active Device, Routing, SP2T, Switch

Description



PDF

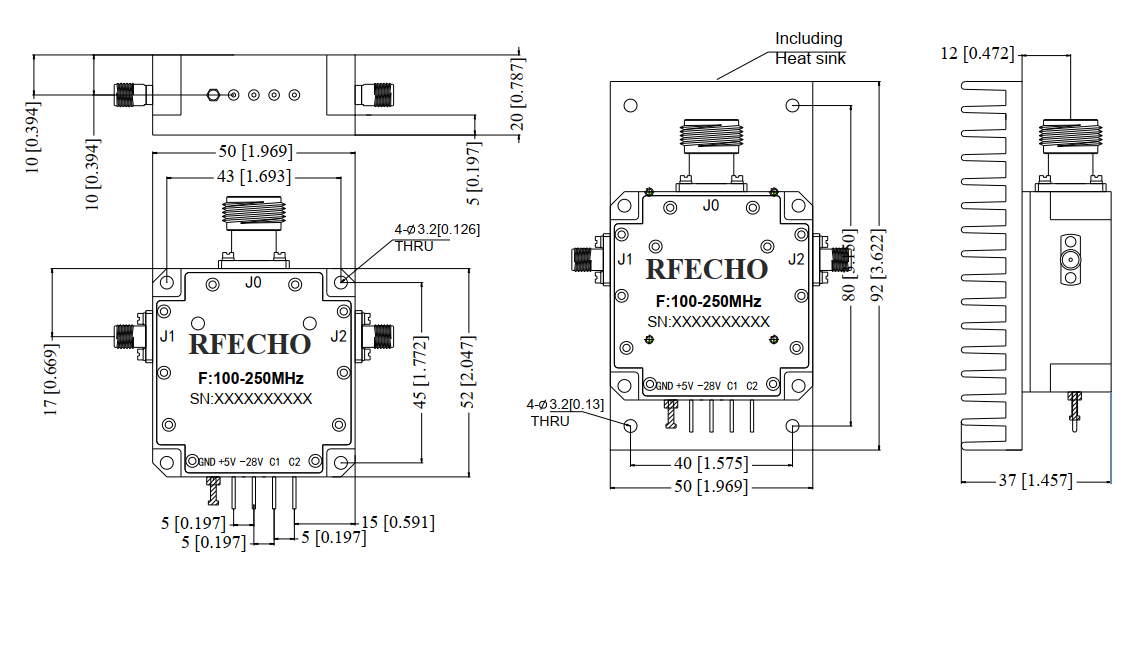

Outline



text





Additional information

Min. Frequency (GHz)

0.1

Max. Frequency (GHz)

0.25

VSWR (Max.)

1.25

Switch Type

SP2T

RF Input Power (W)

300

Insertion Loss (dB)

1.4
