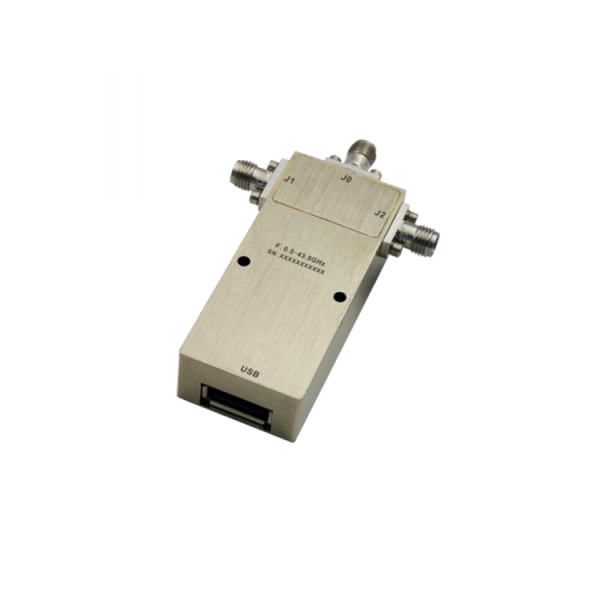

Absorptive Coaxial SP2T Switch from 0.5GHz to 43.5GHz .OSA0200504350C

HOT

Absorptive Coaxial SP2T Switch from 0.5GHz to 43.5GHz .OSA0200504350C

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 0.5GHz to 43.5GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSA0200504350C Categories: Active Device, Routing, SP2T, Switch

Description



PDF

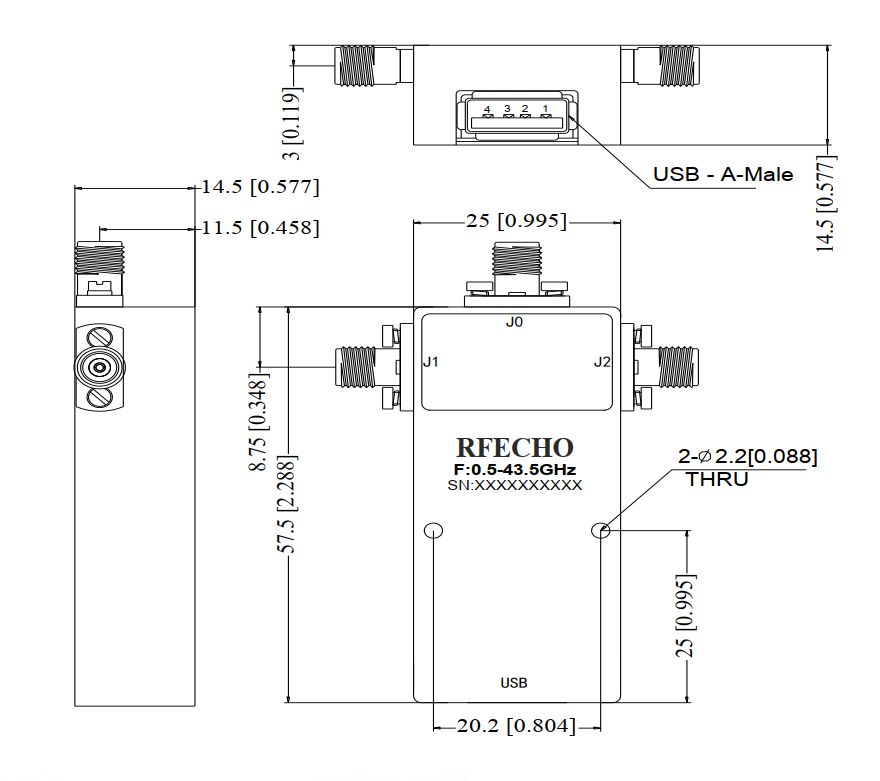

Outline



text





Additional information

Min. Frequency (GHz)

0.5

Max. Frequency (GHz)

43.5

VSWR (Max.)

2.8

Switch Type

SP2T

RF Input Power (W)

5.2

Insertion Loss (dB)

0.2
