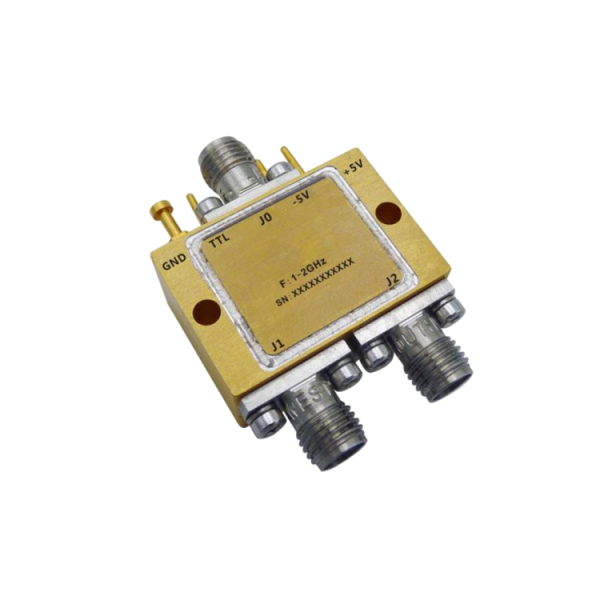

Absorptive Coaxial SP2T Switch from 1GHz to 2GHz .OSA0201000200B

HOT

Absorptive Coaxial SP2T Switch from 1GHz to 2GHz .OSA0201000200B

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 1GHz to 2GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSA0201000200B Categories: Active Device, Routing, SP2T, Switch

Description



PDF

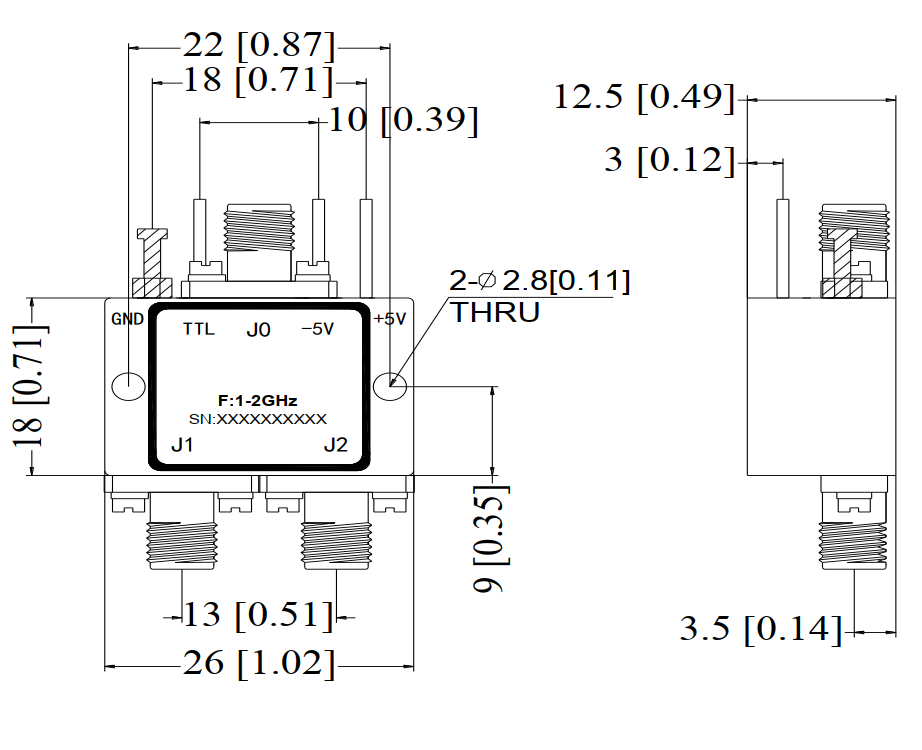

Outline

Absorptive Coaxial   SP2T Switch from 1GHz to 2GHz .OSA0201000200B



text



Absorptive Coaxial   SP2T Switch from 1GHz to 2GHz .OSA0201000200BAbsorptive Coaxial   SP2T Switch from 1GHz to 2GHz .OSA0201000200B



Additional information

Min. Frequency (GHz)

1

Max. Frequency (GHz)

2

VSWR (Max.)

1.5

Switch Type

SP2T

RF Input Power (W)

1

Insertion Loss (dB)

1
