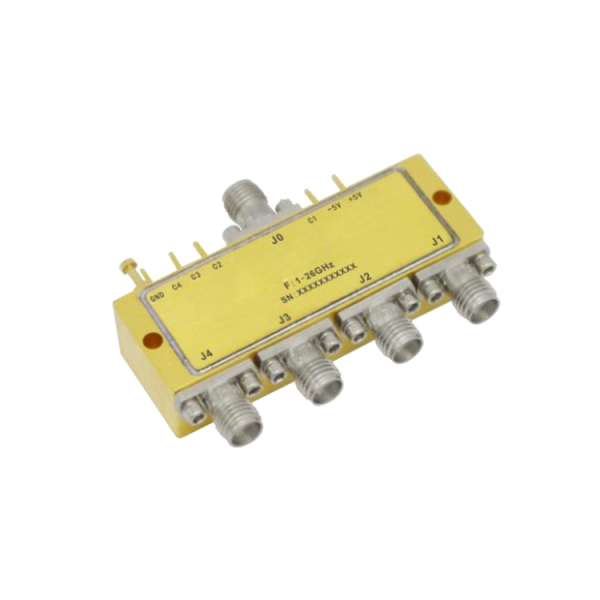

Absorptive Coaxial SP4T Switch from 1GHz to 26GHz .OSR0401002600B

HOT

Absorptive Coaxial SP4T Switch from 1GHz to 26GHz .OSR0401002600B

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 1GHz to 26GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSR0401002600B Categories: Active Device, SP4T, Switch

Description



PDF

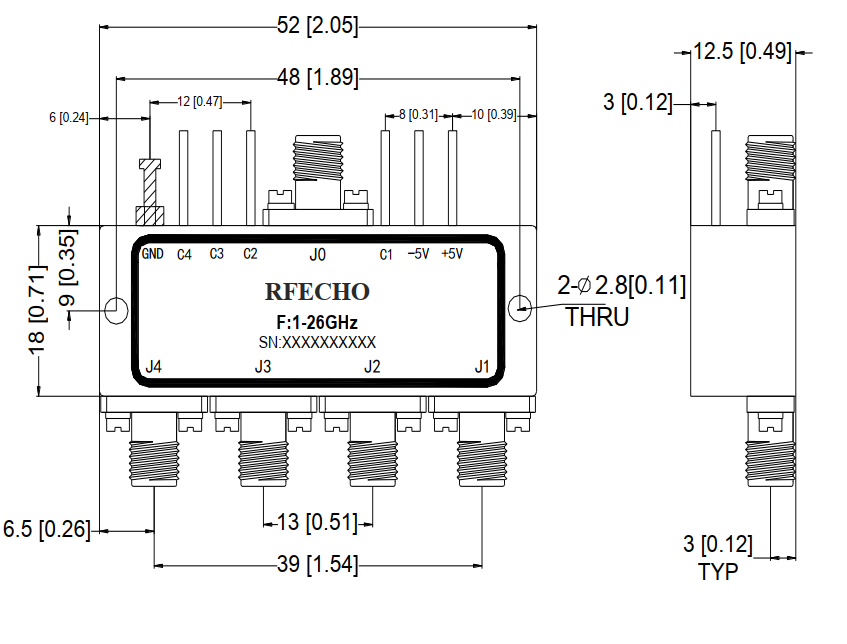

Outline



text









Additional information

Min. Frequency (GHz)

1

Max. Frequency (GHz)

26

VSWR (Max.)

1.6

Switch Type

SP4T

RF Input Power (W)

23dBm

Insertion Loss (dB)

2.5
