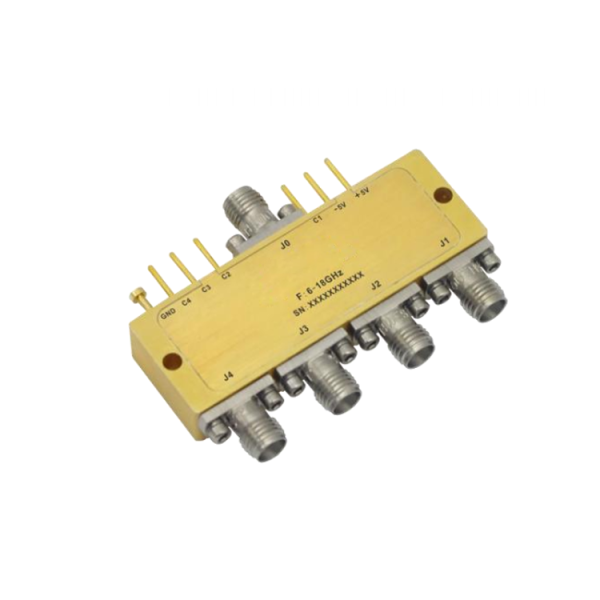

Absorptive Coaxial SP4T Switch from 6GHz to 18GHz .OSR0406001800A

HOT

Absorptive Coaxial SP4T Switch from 6GHz to 18GHz .OSR0406001800A

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 6GHz to 18GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSR0406001800A Categories: Active Device, Routing, SP4T, Switch

Description



PDF

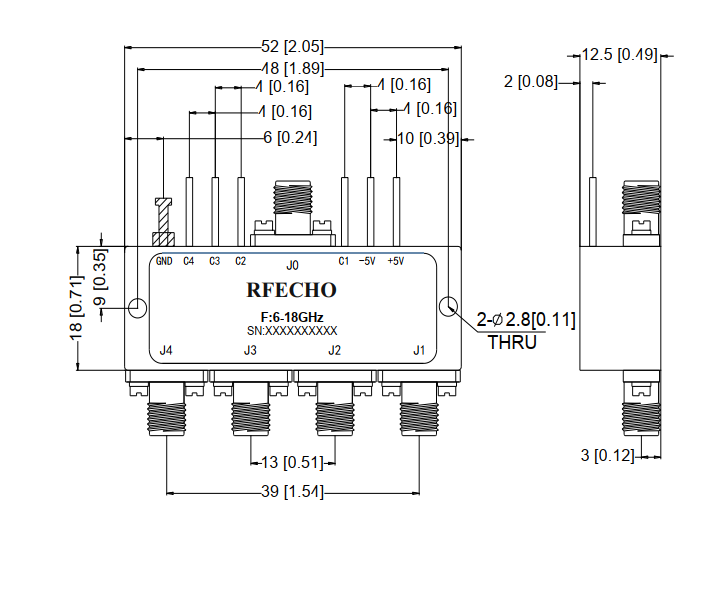

Outline

Absorptive Coaxial   SP4T Switch from 6GHz to 18GHz .OSR0406001800A



text

Absorptive Coaxial   SP4T Switch from 6GHz to 18GHz .OSR0406001800AAbsorptive Coaxial   SP4T Switch from 6GHz to 18GHz .OSR0406001800AAbsorptive Coaxial   SP4T Switch from 6GHz to 18GHz .OSR0406001800A





Additional information

Min. Frequency (GHz)

6

Max. Frequency (GHz)

18

VSWR (Max.)

2

Switch Type

SP4T

RF Input Power (W)

1

Insertion Loss (dB)

2.8
