Absorptive Coaxial SP8T Switch from 0.02GHz to 3GHz .OSA0800020300A

HOT

Absorptive Coaxial SP8T Switch from 0.02GHz to 3GHz .OSA0800020300A

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 0.02GHz to 3GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSA0800020300A Categories: Routing, SP8T, Switch

Description



PDF

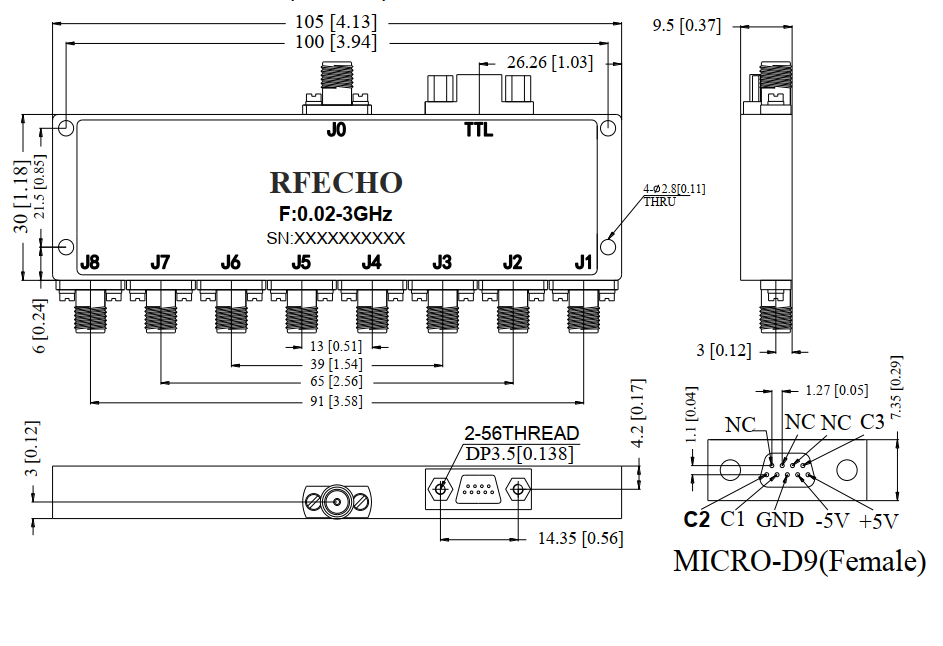

Outline

Absorptive Coaxial   SP8T Switch from 0.02GHz to 3GHz .OSA0800020300A

text



Absorptive Coaxial   SP8T Switch from 0.02GHz to 3GHz .OSA0800020300AAbsorptive Coaxial   SP8T Switch from 0.02GHz to 3GHz .OSA0800020300A





Additional information

Min. Frequency (GHz)

0.02

Max. Frequency (GHz)

3

VSWR (Max.)

1.5

Switch Type

SP8T

RF Input Power (W)

1

Insertion Loss (dB)

2.2
