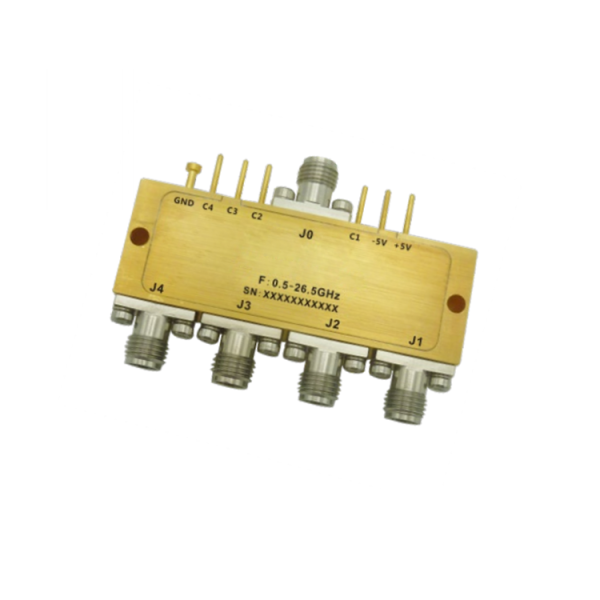

Absorptive Coaxial SP8T Switch from 0.5GHz to 26.5GHz .OSA0800502600A-A

HOT

Absorptive Coaxial SP8T Switch from 0.5GHz to 26.5GHz .OSA0800502600A-A

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 0.5GHz to 26.5GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSA0800502600A-A Categories: Routing, SP8T, Switch

Description



PDF

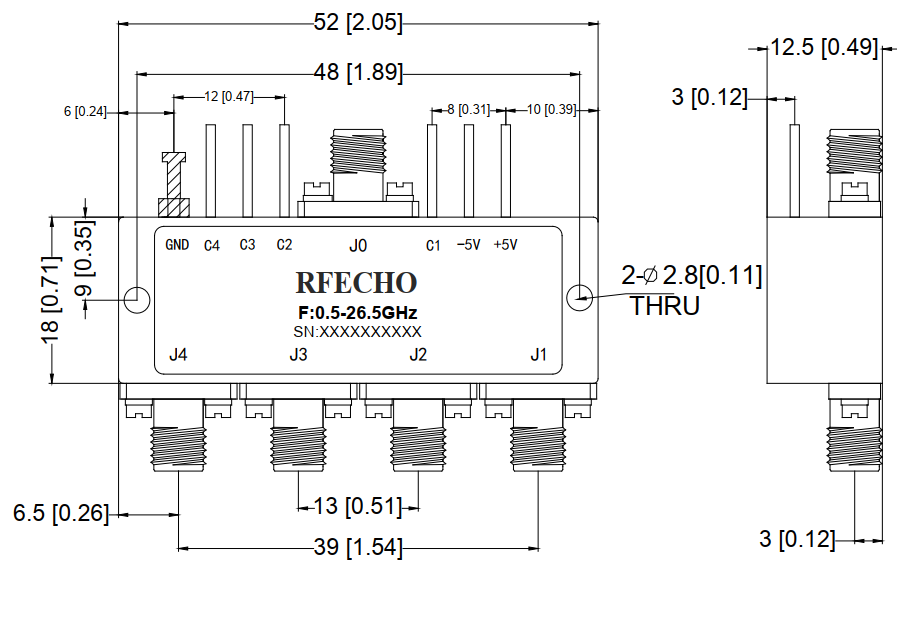

Outline

Absorptive Coaxial   SP8T Switch from 0.5GHz to 26.5GHz .OSA0800502600A-A

text

Absorptive Coaxial   SP8T Switch from 0.5GHz to 26.5GHz .OSA0800502600A-AAbsorptive Coaxial   SP8T Switch from 0.5GHz to 26.5GHz .OSA0800502600A-AAbsorptive Coaxial   SP8T Switch from 0.5GHz to 26.5GHz .OSA0800502600A-A







Additional information

Min. Frequency (GHz)

0.5

Max. Frequency (GHz)

26.5

VSWR (Max.)

2.8

Switch Type

SP8T

RF Input Power (W)

0.2

Insertion Loss (dB)

5.5
