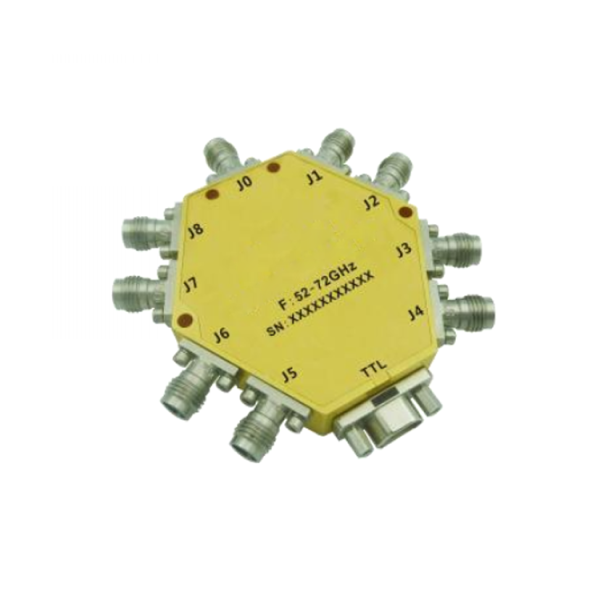

Absorptive Coaxial SP8T Switch from 52GHz to 72GHz .OSR0852007200A

HOT

Absorptive Coaxial SP8T Switch from 52GHz to 72GHz .OSR0852007200A

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 52GHz to 72GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSR0852007200A Categories: Active Device, SP8T, Switch

Description



PDF

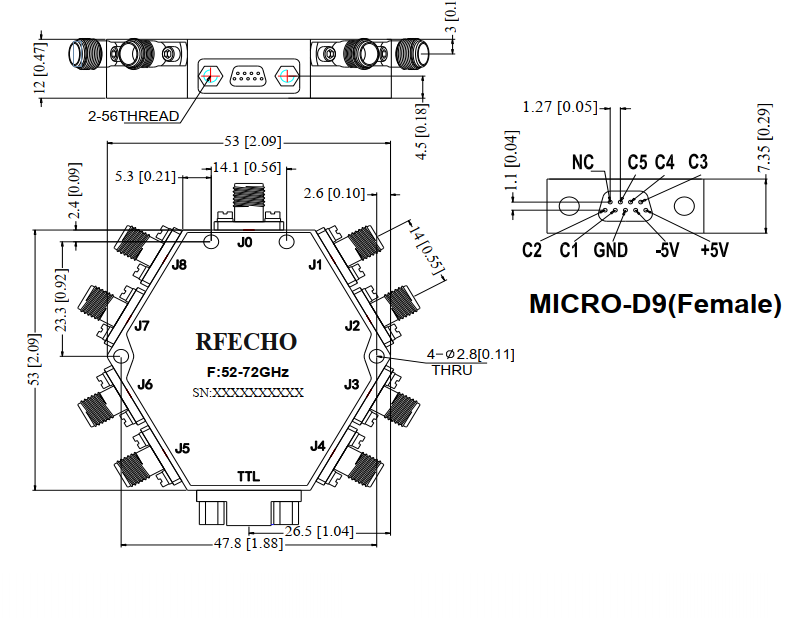

Outline

text







Additional information

Min. Frequency (GHz)

52

Max. Frequency (GHz)

72

VSWR (Max.)

2.5

Switch Type

SP8T

RF Input Power (W)

0.2

Insertion Loss (dB)

12
