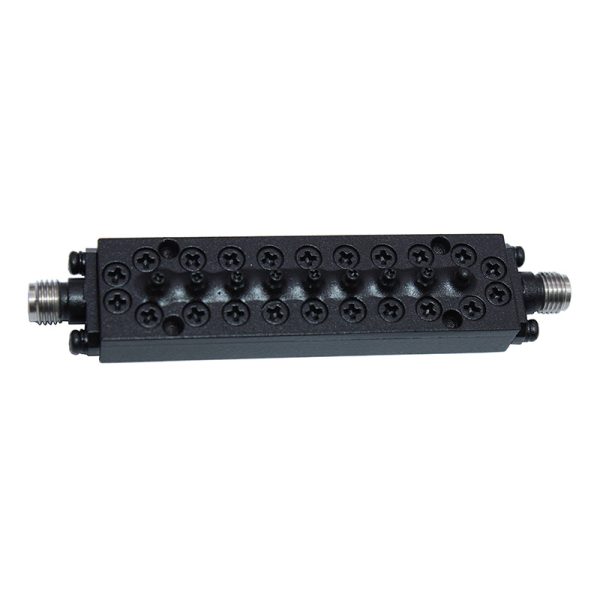

Band Pass Filter From ±500MHz(29.5~30.5GHz) OBP-30000-500 With 2.92mm(K)-Female Connectors

$398

Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-30000-500, it’s Center Frequency (FO) is 30GHz, it’s Pass Band Bandwidth is ±500MHz(29.5~30.5GHz), it’s Pass Band Insertion Loss is ≤1.7dB, Pass Band Return Loss is 18dB, Pass Band VSWR is ≤1.28:1, and the Stop Band frequency is≥45dB@28.5~29GHz(Typical:50dB)≥45dB@31~31.5GHz(Typical:50dB) >70dB@31.5~48GHz.

Availability: Available on backorder SKU: OBP-30000-500 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

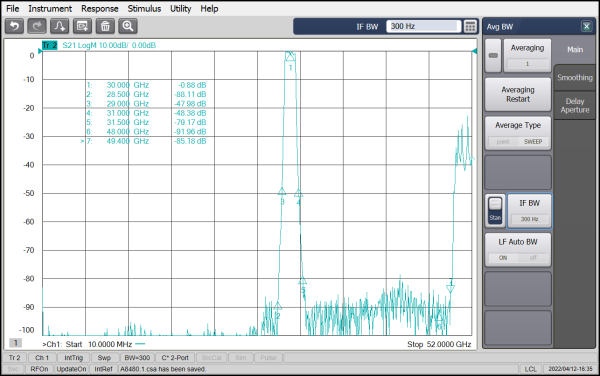

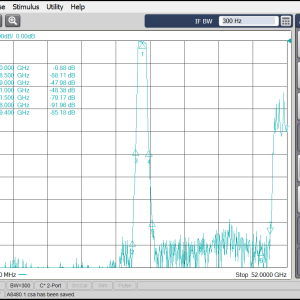

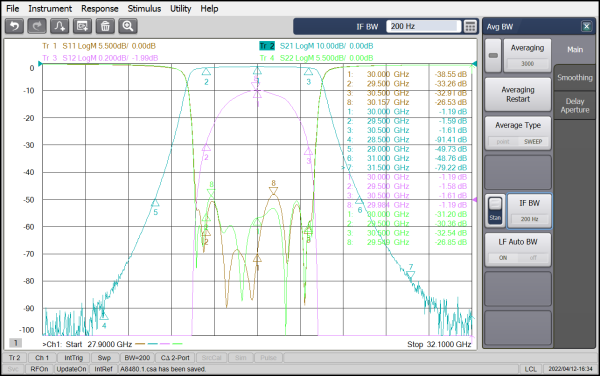

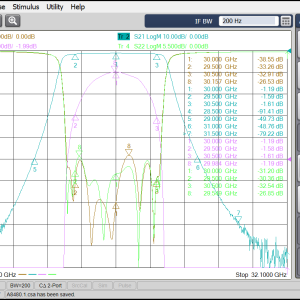

Description

Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-30000-500, it’s Center Frequency (FO) is 30GHz, it’s Pass Band Bandwidth is ±500MHz(29.5~30.5GHz), it’s Pass Band Insertion Loss is ≤1.7dB, Pass Band Return Loss is 18dB, Pass Band VSWR is ≤1.28:1, and the Stop Band frequency is ≥45dB@28.5~29GHz(Typical:50dB)≥45dB@31~31.5GHz(Typical:50dB)>70dB@31.5~48GHz.

Band Pass Filter Datasheet (Click to download)

Additional information

Weight 0.5 kg
Dimensions 26 × 11.5 × 14.5 cm
Center Frequency (F0) (MHz)

30000

Min. Pass Band Frequency (MHz)

29500

Max. Pass Band Frequency (MHz)

30500

Pass Band Insertion Loss (dB)

≤1.7

Stop Band Rejection

≥80dB@DC-28.5GHz≥45dB@31-31.5GHz(Typical:50dB)≥45dB@28.5-29GHz(Typical:50dB)≥70dB@31.5-48GHz

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

2.92mm(K)-Female
