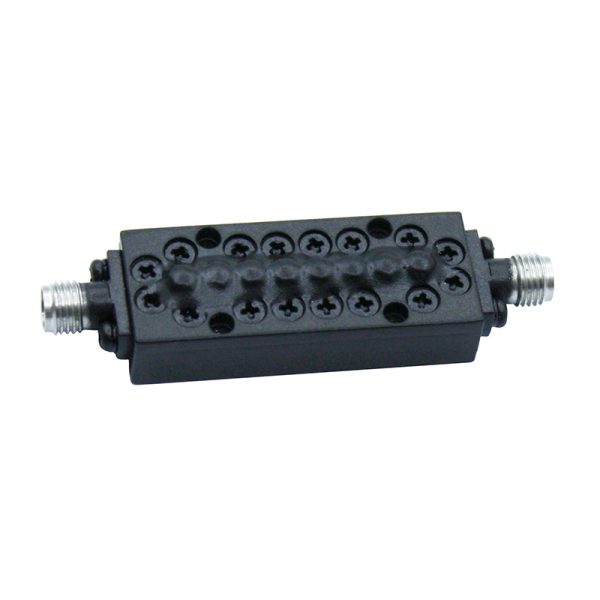

Band Pass Filter From 3.4GHz (29.3-32.7GHz) OBP-31000-3400 With 2.92mm(K)-Female Connectors

$398

Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-31000-3400, it’s Center Frequency (FO) is 31GHz, it’s Pass Band Bandwidth is 3.4GHz (29.3-32.7GHz), it’s Pass Band Insertion Loss is ≤0.7dB, Pass Band Return Loss is 18dB, Pass Band VSWR is, and the Stop Band frequency is ≥70dB@DC~26GHz≥55dB@36-48GHz.

Availability: Available on backorder SKU: OBP-31000-3400 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-31000-3400, it’s Center Frequency (FO) is 31GHz, it’s Pass Band Bandwidth is 3.4GHz (29.3-32.7GHz), it’s Pass Band Insertion Loss is ≤0.7dB, Pass Band Return Loss is 18dB, Pass Band VSWR is, and the Stop Band frequency is ≥70dB@DC~26GHz≥55dB@36-48GHz.

Band Pass Filter Datasheet (Click to download)

Additional information

Weight 0.5 kg

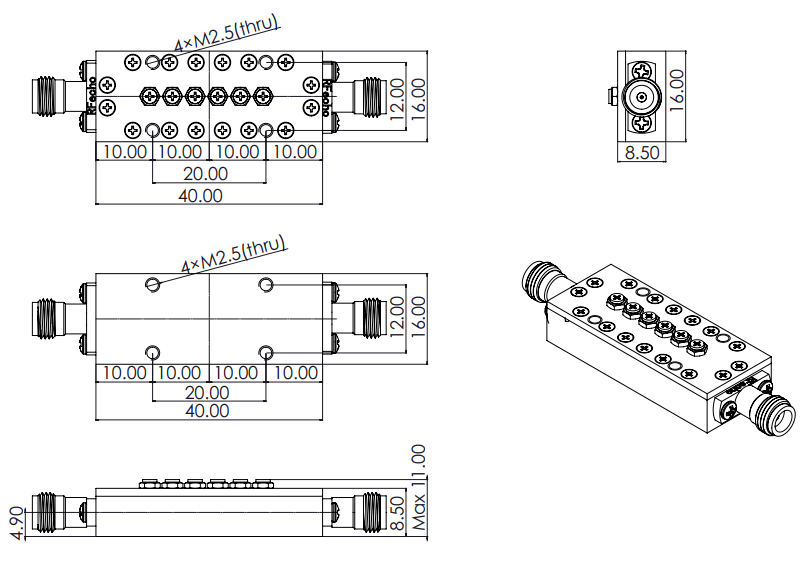

Dimensions 26 × 11.5 × 14.5 cm
Center Frequency (F0) (MHz)

31000

Min. Pass Band Frequency (MHz)

29300

Max. Pass Band Frequency (MHz)

32700

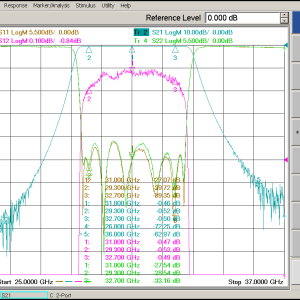

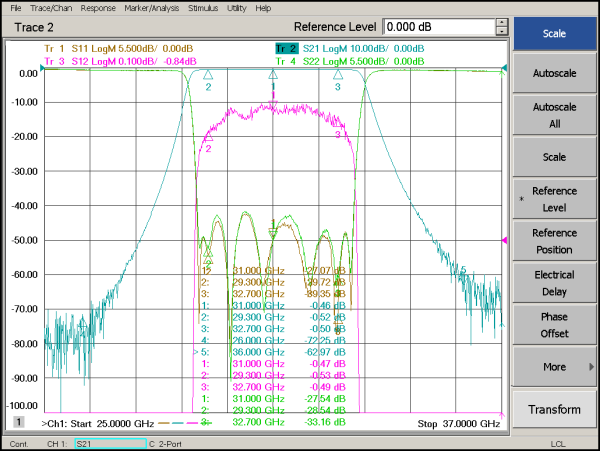

Pass Band Insertion Loss (dB)

≤0.7

Stop Band Rejection

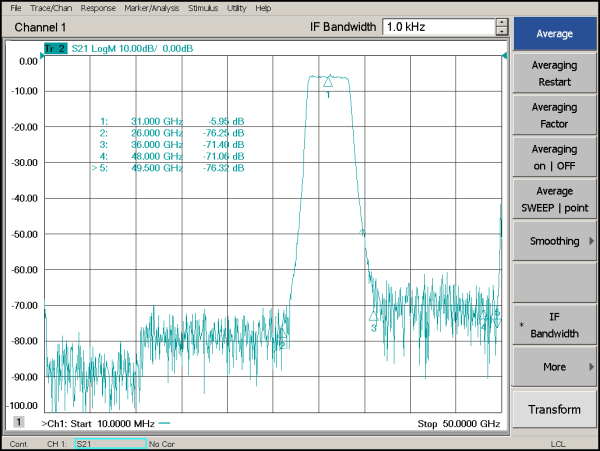

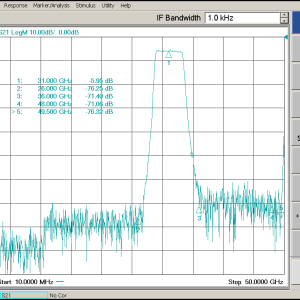

≥70dB@DC~26GHz≥55dB@36-48GHz.

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

2.92mm(K)-Female
